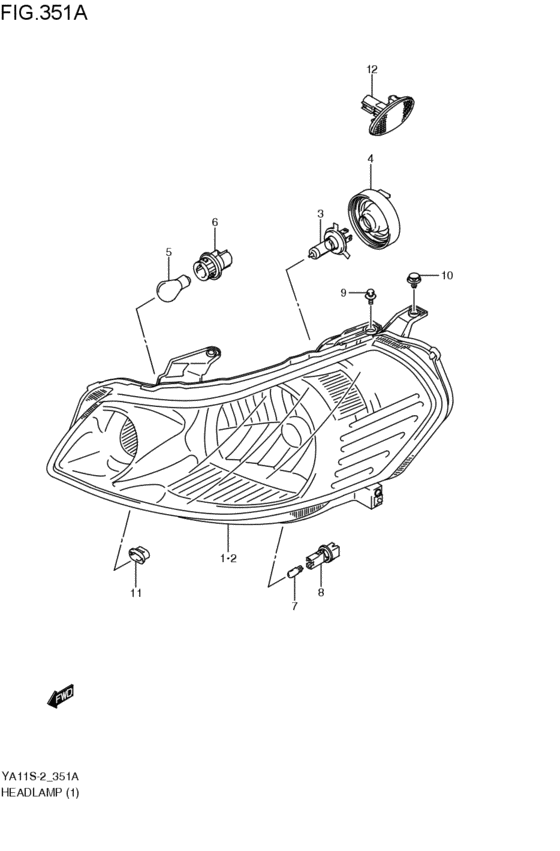

head lamp (BF,FF,FQ; 2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- Number of doors
- 4DR
- grade
- BF
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35120-80JA0-000
Unit,headlamp rh
BF,FF,FQ; 2008-07-01~ |
35120-80JA0-000 |
— | ||
| replacement | |||||
|
1
|
1
35120-80JA1-000 UNIT,HEADLAMP,RBF,FF,FQ; 2008-07-01~ |
35120-80JA1-000 |
US $612.56 |
||
|
2
|
2
35320-80JA0-000
Unit,headlamp lh
BF,FF,FQ; 2008-07-01~ |
35320-80JA0-000 |
— | ||
| replacement | |||||
|
2
|
2
35320-80JA1-000 UNIT,HEADLAMP,LBF,FF,FQ; 2008-07-01~ |
35320-80JA1-000 |
US $345.92 |
||
|
3
|
3
09471-12182-000 BULB(12V60/55W,H4)BF,FF,FQ; 2008-07-01~ |
09471-12182-000 |
from US $26.98 |
||
|
4
|
4
35179-64G00-000 COVER,SOCKETBF,FF,FQ; 2008-07-01~ |
35179-64G00-000 |
from US $12.64 |
||
|
5
|
5
09471-12186-000 BULB(12V21W,AMBER)アンバ-; BF,FF,FQ; 2008-07-01~ |
09471-12186-000 |
from US $5.65 |
||
|
6
|
6
36118-77A00-000 SOCKET,TURN LAMPBF,FF,FQ; 2008-07-01~ |
36118-77A00-000 |
from US $5.87 |
||
|
7
|
7
09471-12216-000 BULB(12V5W)Bulb (12v5w) BF,FF,FQ; 2008-07-01~ |
09471-12216-000 |
from US $2.84 |
||
|
8
|
8
35118-76F00-000 SOCKET,POSITION LAMPBF,FF,FQ; 2008-07-01~ |
35118-76F00-000 |
from US $8.71 |
||
|
9
|
9
09122-76006-000 SCREW(6X16)BF,FF,FQ; 2008-07-01~ |
09122-76006-000 |
from US $0.80 |
||
|
10
|
10
09409-08327-000 CLIPBF,FF,FQ; 2008-07-01~ |
09409-08327-000 |
from US $1.13 |
||
|
11
|
11
35153-75H00-000 GROMMET,HEADLAMPBF,FF,FQ; 2008-07-01~ |
35153-75H00-000 |
US $1.76 |
||
|
12
|
12
36410-63J01-000
Lamp assy,side turn sig
BF,FF,FQ; 2008-07-01~ |
36410-63J01-000 |
— | ||
| replacement | |||||
|
12
|
12
36410-63J02-000 LAMP ASSY,SIDE TURN SIGBF,FF,FQ; 2008-07-01~ |
36410-63J02-000 |
US $12.11 |
||
