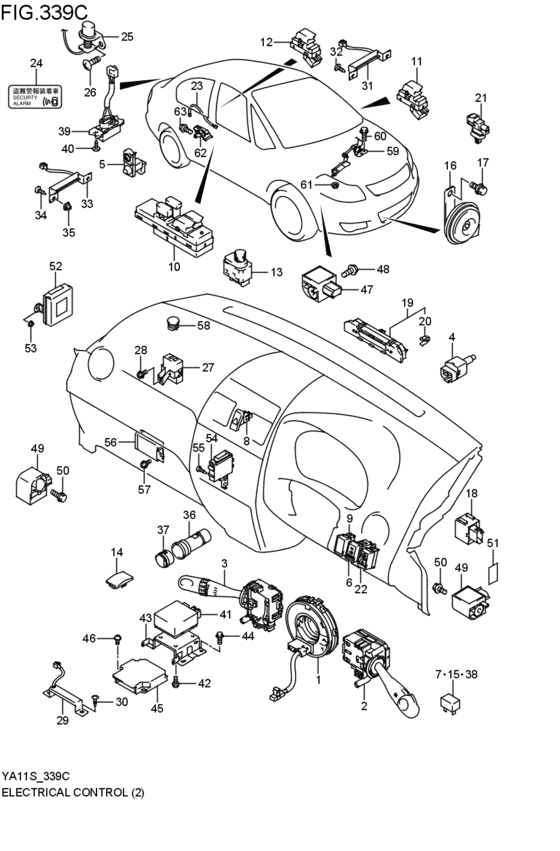

electrical control (4DR; 2007-06-01~) Diagram Suzuki SX4
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 4DR
- grade
- F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37480-62J20-000 CABLE ASSY,CONTACT COIL4DR; 2007-06-01~ |
37480-62J20-000 |
from US $120.13 |
||
|
2
|
2
37210-73H00-000
Switch assy,lighting & turn
4DR:F; 2007-06-01~ |
37210-73H00-000 |
— | ||
| replacement | |||||
|
2
|
2
37210-73H01-000 SWITCH ASSY,LIGHTING&TURN4DR:F; 2007-06-01~ |
37210-73H01-000 |
from US $105.50 |
||
|
3
|
3
37310-62J71-000 SWITCH ASSY,WIPER&WASHER4DR; 2007-06-01~ |
37310-62J71-000 |
US $104.14 |
||
|
4
|
4
37740-75H10-000
SWITCH ASSY,STOP LAMP
4DR; 2007-06-01~ |
37740-75H10-000 |
— | ||
| replacements | |||||
|
4
|
4
37741-75H10-000 Switch Assy,stop Lamp4DR; 2007-06-01~ |
37741-75H10-000 |
from US $14.15 |
||
|
4
|
4
37742-75H10-000 Bush,stop Lamp Sw4DR; 2007-06-01~ |
37742-75H10-000 |
from US $3.80 |
||
|
5
|
5
37670-58J10-000 SWITCH ASSY,DOOR4DR; 2007-06-01~ |
37670-58J10-000 |
from US $10.73 |
||
|
8
|
8
37430-62J00-P4Z SWITCH ASSY,HAZARD WRNグレー; 4DR; 2007-06-01~ |
37430-62J00-P4Z |
US $27.78 |
||
|
9
|
9
37285-62J00-000 CAP,OPTION SW HOLE4DR; 2007-06-01~ |
37285-62J00-000 |
US $2.56 |
||
|
10
|
10
37990-80J00-000 SWITCH ASSY,P/W MASTER4DR; 2007-06-01~ |
37990-80J00-000 |
US $378.56 |
||
|
11
|
11
37995-62J00-000 SWITCH ASSY,P/W SUBサブ; 4DR; 2007-06-01~ |
37995-62J00-000 |
from US $16.92 |
||
|
12
|
12
37995-62J00-000 SWITCH ASSY,P/W SUBリヤ; 4DR; 2007-06-01~ |
37995-62J00-000 |
from US $16.92 |
||
|
13
|
13
37950-62J10-000
SWITCH ASSY,MIRROR
4DR; 2007-06-01~ |
37950-62J10-000 |
— | ||
| replacement | |||||
|
13
|
13
37950-62J11-000 SWITCH ASSY,MIRROR4DR; 2007-06-01~ |
37950-62J11-000 |
from US $32.87 |
||
|
14
|
14
37285-62J10-000 CAP,OPTION SW HOLE4DR; 2007-06-01~ |
37285-62J10-000 |
US $4.16 |
||
|
15
|
15
38860-76F01-000 RELAY ASSYRelay, starting motor シフト ロック リレー; 4DR; 2007-06-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
16
|
16
38500-73H00-000
HORN ASSY
4DR; 2007-06-01~ |
38500-73H00-000 |
— | ||
| replacement | |||||
|
16
|
16
38500-73H11-000 HORN ASSY,LOW PITCHED4DR; 2007-06-01~ |
38500-73H11-000 |
US $71.39 |
||
|
17
|
17
09115-08001-000 BOLT(8X18)4DR; 2007-06-01~ |
09115-08001-000 |
US $15.10 |
||
|
18
|
18
38610-84F00-000 RELAY,TURN SIGNAL&4WAY4DR; 2007-06-01~ |
38610-84F00-000 |
from US $48 |
||
|
19
|
19
34600-80J02-000 MONITOR ASSY,INFORMATION4DR; 2007-06-01~ |
34600-80J02-000 |
US $377.60 |
||
|
20
|
20
09409-08332-000 CLIP4DR; 2007-06-01~ |
09409-08332-000 |
from US $1.12 |
||
|
21
|
21
95643-58J00-000 SENSOR,AIR TEMPDENSO; 4DR; 2007-06-01~ |
95643-58J00-000 |
from US $21.24 |
||
|
22
|
22
35180-62J00-000 SWITCH ASSY,HEADLAMP LEVELING4DR:F; 2007-06-01~ |
35180-62J00-000 |
US $61.46 |
||
|
23
|
23
36882-80J00-000 WIRE,RR HEIGHT SENSOR4DR; 2007-06-01~ |
36882-80J00-000 |
US $23.74 |
||
|
24
|
24
36771-58J00-000
LABEL,SECURITY ALARM
4DR; 2007-06-01~ |
36771-58J00-000 |
— | ||
| replacement | |||||
|
24
|
24
36771-58J01-000 Label,security Alarm4DR; 2007-06-01~ |
36771-58J01-000 |
US $2.80 |
||
|
25
|
25
37675-55G00-000 SWITCH ASSY,TRUNK4DR; 2007-06-01~ |
37675-55G00-000 |
US $14.32 |
||
|
26
|
26
02142-0508A-000 SCREWScrew, cap 4DR; 2007-06-01~ |
02142-0508A-000 |
from US $0.76 |
||
|
27
|
27
37171-75K20-000
Controller assy,keyless start
4DR; 2007-06-01~ |
37171-75K20-000 |
— | ||
| replacement | |||||
|
27
|
27
37171-75K21-000 CONTROLLER ASSY,KLS4DR; 2007-06-01~ |
37171-75K21-000 |
US $287.04 |
||
|
28
|
28
02162-0612A-000 SCREWBolt, bracket 4DR; 2007-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
29
|
29
37175-62J00-000 ANTENNA ASSY,KLS INSIDE4DR; 2007-06-01~ |
37175-62J00-000 |
US $39.01 |
||
|
30
|
30
03141-0516A-000 SCREW4DR; 2007-06-01~ |
03141-0516A-000 |
from US $0.80 |
||
|
31
|
31
37175-80J10-000 ANTENNA ASSY,KLS LUGGAGE4DR; 2007-06-01~ |
37175-80J10-000 |
US $69.18 |
||
|
32
|
32
03541-0516A-000 SCREW4DR; 2007-06-01~ |
03541-0516A-000 |
from US $0.68 |
||
|
33
|
33
37175-80J00-000 ANTENNA ASSY,KLS BACK DR4DR; 2007-06-01~ |
37175-80J00-000 |
US $39.01 |
||
|
34
|
34
03541-0516A-000 SCREW4DR; 2007-06-01~ |
03541-0516A-000 |
from US $0.68 |
||
|
35
|
35
09148-05031-000 NUT4DR; 2007-06-01~ |
09148-05031-000 |
US $1.28 |
||
|
36
|
36
39420-76F00-000 BODY,SOCKET4DR; 2007-06-01~ |
39420-76F00-000 |
from US $6.82 |
||
|
37
|
37
39441-63J01-P4Z COVER,SOCKETグレー; 4DR; 2007-06-01~ |
39441-63J01-P4Z |
US $4.96 |
||
|
38
|
38
38860-76F01-000 RELAY ASSYRelay, starting motor 4DR:AT; 2007-06-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
39
|
39
37178-79J00-000 SWITCH ASSY,BACK DOOR4DR; 2007-06-01~ |
37178-79J00-000 |
from US $44.64 |
||
|
40
|
40
03541-0416A-000 SCREWScrew, trunk box lamp 4DR; 2007-06-01~ |
03541-0416A-000 |
from US $0.76 |
||
|
41
|
41
38720-79JA0-000 CONTROLLER ASSY,EPS4DR; 2007-10-01~ |
38720-79JA0-000 |
US $1,149.12 |
||
|
41
|
41
38720-79J01-000
CONTROLLER ASSY,EPS
4DR; 2007-06-01~2007-09-01 |
38720-79J01-000 |
— | ||
|
42
|
42
09115-06005-000 BOLT(6X16)4DR; 2007-06-01~ |
09115-06005-000 |
US $1.28 |
||
|
43
|
43
38721-79J00-000 BRACKET,EPS CONT4DR; 2007-06-01~ |
38721-79J00-000 |
US $7.18 |
||
|
44
|
44
02162-0508A-000 SCREW4DR; 2007-06-01~ |
02162-0508A-000 |
from US $2.82 |
||
|
45
|
45
38910-80J02-000 CONTROLLER ASSY,A/B4DR:F; 2007-06-01~ |
38910-80J02-000 |
US $612.48 |
||
|
46
|
46
09115-06004-000 BOLT(6X16)4DR; 2007-06-01~ |
09115-06004-000 |
US $12.50 |
||
|
47
|
47
38930-80J00-000 SENSOR ASSY,FORWARD4DR; 2007-06-01~ |
38930-80J00-000 |
US $129.54 |
||
|
48
|
48
09115-06004-000 BOLT(6X16)4DR; 2007-06-01~ |
09115-06004-000 |
US $12.50 |
||
|
49
|
49
38930-80J10-000 SENSOR ASSY,SIDE AIR BAG4DR; 2007-06-01~ |
38930-80J10-000 |
US $129.54 |
||
|
50
|
50
09115-06004-000 BOLT(6X16)4DR; 2007-06-01~ |
09115-06004-000 |
US $12.50 |
||
|
51
|
51
77151-82000-000
FILM
4DR; 2007-06-01~ |
77151-82000-000 |
— | ||
| replacements | |||||
|
51
|
51
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 4DR; 2007-06-01~ |
84761-50X50-000 |
US $6.72 |
||
|
51
|
51
77151-82010-000 Seal4DR; 2007-06-01~ |
77151-82010-000 |
US $1.44 |
||
|
52
|
52
38880-80J00-000
CONTROLLER ASSY,AT
4DR:AT; 2007-06-01~ |
38880-80J00-000 |
— | ||
|
53
|
53
09159-06076-000 NUT4DR:AT; 2007-06-01~ |
09159-06076-000 |
from US $1.28 |
||
