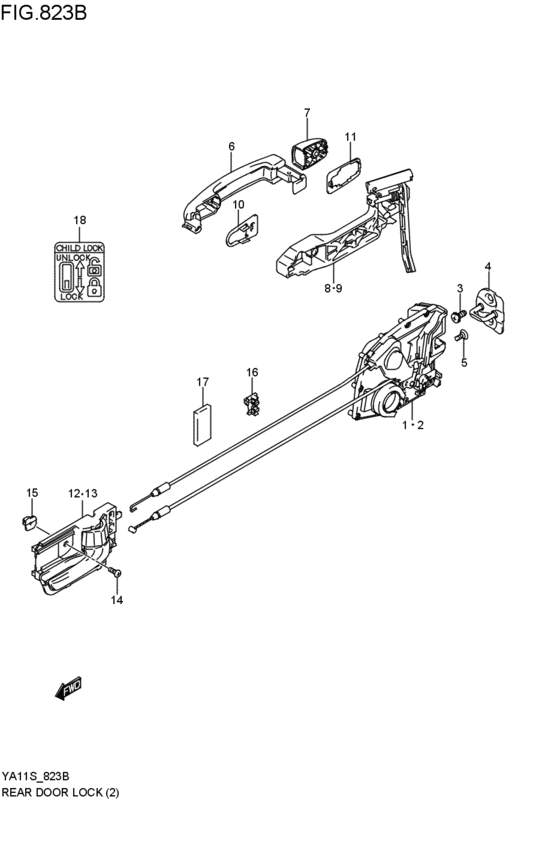

rear door lock (4DR; 2007-06-01~) Diagram Suzuki SX4
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 4DR
- grade
- F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82301-80J20-000
Latch assy,rear door,r
4DR; 2007-06-01~ |
82301-80J20-000 |
— | ||
| replacements | |||||
|
1
|
1
82301-80J24-000
LATCH ASSY,RR DR,R
4DR; 2007-06-01~ |
82301-80J24-000 |
— | ||
|
1
|
1
82301-80J25-000 Latch Assy,rr Dr,r4DR; 2007-06-01~ |
82301-80J25-000 |
US $137.26 |
||
|
2
|
2
82302-80J20-000
Latch assy,rear door,l
4DR; 2007-06-01~ |
82302-80J20-000 |
— | ||
| replacements | |||||
|
2
|
2
82302-80J24-000
LATCH ASSY,RR DR,L
4DR; 2007-06-01~ |
82302-80J24-000 |
— | ||
|
2
|
2
82302-80J25-000 Latch Assy,rr Dr,l4DR; 2007-06-01~ |
82302-80J25-000 |
US $137.26 |
||
|
3
|
3
09137-06028-000 SCREW(6X18)4DR; 2007-06-01~ |
09137-06028-000 |
US $14.40 |
||
|
4
|
4
82610-63J00-000 STRIKER,DOOR LATCH4DR; 2007-06-01~ |
82610-63J00-000 |
US $12.59 |
||
|
5
|
5
09137-08004-000 SCREW(8X18)4DR; 2007-06-01~ |
09137-08004-000 |
from US $0.90 |
||
| replacement | |||||
|
5
|
5
09137-08011-000 SCREW(8X18)4DR; 2007-06-01~ |
09137-08011-000 |
US $1.44 |
||
|
6
|
6
82812-63J00-ZJP HANDLE,SIDE DOOR OUTブルー; 4DR; 2007-06-01~ |
82812-63J00-ZJP |
US $40.48 |
||
|
6
|
6
82812-63J00-ZJ3 HANDLE,DOOR OUTブラック; 4DR; 2007-06-01~ |
82812-63J00-ZJ3 |
US $40.48 |
||
|
6
|
6
82812-63J00-ZY4 HANDLE,DOOR OUTグレー; 4DR; 2007-06-01~ |
82812-63J00-ZY4 |
US $40.48 |
||
|
6
|
6
82812-63J00-Z2S HANDLE,DOOR OUTシルバー; 4DR; 2007-06-01~ |
82812-63J00-Z2S |
US $40.48 |
||
|
6
|
6
82812-63J00-Z7T HANDLE,SIDE DOOR OUTホワイト; 4DR; 2007-06-01~ |
82812-63J00-Z7T |
US $44.08 |
||
|
7
|
7
82833-63J00-ZJP CAP,RR DR OUTブルー; 4DR; 2007-06-01~ |
82833-63J00-ZJP |
US $15.16 |
||
|
7
|
7
82833-63J00-ZJ3 CAP,RR DR OUTブラック; 4DR; 2007-06-01~ |
82833-63J00-ZJ3 |
US $15.16 |
||
|
7
|
7
82833-63J00-ZY4 CAP,RR DR OUTグレー; 4DR; 2007-06-01~ |
82833-63J00-ZY4 |
US $15.16 |
||
|
7
|
7
82833-63J00-Z2S CAP,RR DR OUTシルバー; 4DR; 2007-06-01~ |
82833-63J00-Z2S |
US $15.16 |
||
|
7
|
7
82833-63J00-Z7T CAP,RR DR OUTホワイト; 4DR; 2007-06-01~ |
82833-63J00-Z7T |
US $15.16 |
||
|
8
|
8
82831-63J20-000 FRAME,RR DOOR OUT,R4DR; 2007-06-01~ |
82831-63J20-000 |
US $40.11 |
||
|
9
|
9
82841-63J20-000 FRAME,RR DOOR OUT,L4DR; 2007-06-01~ |
82841-63J20-000 |
from US $38.45 |
||
|
10
|
10
82834-63J00-000 PAD,REAR DOOR OUT4DR; 2007-06-01~ |
82834-63J00-000 |
US $4.64 |
||
|
11
|
11
82815-63J00-000 CUSHION,SIDE DR OUT4DR; 2007-06-01~ |
82815-63J00-000 |
from US $1.60 |
||
|
12
|
12
83110-63J20-FC6 HANDLE,DR INS,Rグレー/クロ-ム; 4DR; 2007-06-01~ |
83110-63J20-FC6 |
US $37.17 |
||
|
13
|
13
83130-63J20-FC6 HANDLE,DR INS,Lグレー/クローム; 4DR; 2007-06-01~ |
83130-63J20-FC6 |
US $37.17 |
||
|
14
|
14
09132-05058-000 SCREW(5X12)4DR; 2007-06-01~ |
09132-05058-000 |
US $12.50 |
||
|
15
|
15
09148-05031-000 NUT4DR; 2007-06-01~ |
09148-05031-000 |
US $1.28 |
||
|
16
|
16
83271-50E00-000 CLIP,DR HANDLE ROD4DR; 2007-06-01~ |
83271-50E00-000 |
US $1.60 |
||
|
17
|
17
77591-75000-000 PAD4DR; 2007-06-01~ |
77591-75000-000 |
US $2.28 |
||
|
18
|
18
86951-54G00-000 PLATE,CHILD LOCK CAUTION4DR; 2007-06-01~ |
86951-54G00-000 |
from US $0.52 |
||
