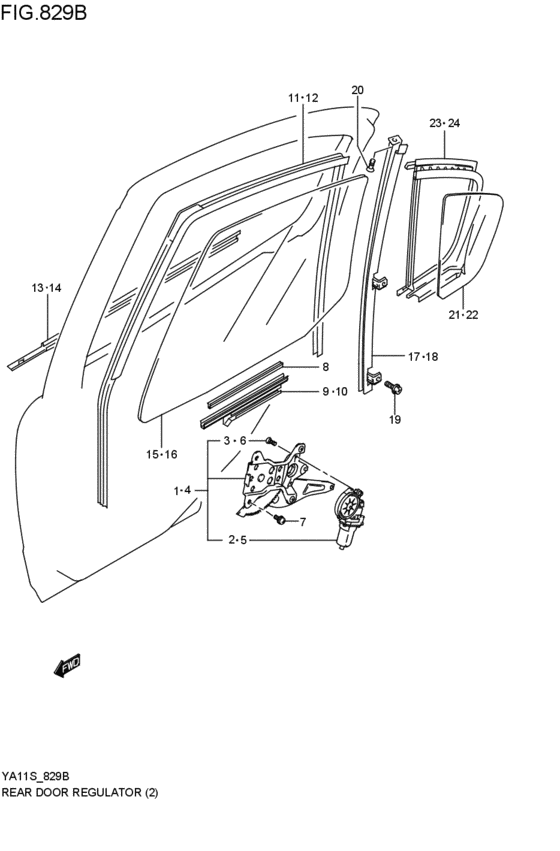

rear door regulator (4DR; 2007-06-01~) Diagram Suzuki SX4
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 4DR
- grade
- F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
83501-79J10-000
Regulator assy,rear window,r
4DR; 2007-06-01~ |
83501-79J10-000 |
— | ||
| replacement | |||||
|
1
|
1
83501-79J12-000 REGULATOR ASSY,RR WINDOW,R4DR; 2007-06-01~ |
83501-79J12-000 |
US $213.44 |
||
|
2
|
2
83510-79J10-000
Regulator s/assy,rr wdo,r
4DR; 2007-06-01~ |
83510-79J10-000 |
— | ||
| replacement | |||||
|
2
|
2
83510-79J11-000 REGULATOR ASSY,RR WDO,R4DR; 2007-06-01~ |
83510-79J11-000 |
US $66.24 |
||
|
3
|
3
09139-05063-000 SCREW(5X11)4DR; 2007-06-01~ |
09139-05063-000 |
US $11.40 |
||
|
4
|
4
83502-79J10-000
Regulator assy,rear window,l
4DR; 2007-06-01~ |
83502-79J10-000 |
— | ||
| replacement | |||||
|
4
|
4
83502-79J12-000 REGULATOR ASSY,RR WINDOW,L4DR; 2007-06-01~ |
83502-79J12-000 |
US $213.44 |
||
|
5
|
5
83540-79J10-000
Regulator s/assy,rr wdo,l
4DR; 2007-06-01~ |
83540-79J10-000 |
— | ||
| replacement | |||||
|
5
|
5
83540-79J11-000 REGULATOR ASSY,RR WINDOW,L4DR; 2007-06-01~ |
83540-79J11-000 |
US $66.24 |
||
|
6
|
6
09139-05063-000 SCREW(5X11)4DR; 2007-06-01~ |
09139-05063-000 |
US $11.40 |
||
|
7
|
7
02112-7612A-000 SCREW4DR; 2007-06-01~ |
02112-7612A-000 |
from US $0.92 |
||
| replacement | |||||
|
7
|
7
02112-7612B-000 SCREW4DR; 2007-06-01~ |
02112-7612B-000 |
from US $0.96 |
||
|
8
|
8
83691-60A00-000 RUBBER,FR GLASS BOTTOM CHANNEL4DR; 2007-06-01~ |
83691-60A00-000 |
US $2.56 |
||
|
9
|
9
83630-75KA0-000 CHANNEL,RR GLASS BOTTOM,R4DR; 2007-06-01~ |
83630-75KA0-000 |
US $39.20 |
||
|
10
|
10
83640-75KA0-000 CHANNEL,RR GLASS BOTTOM,L4DR; 2007-06-01~ |
83640-75KA0-000 |
US $39.20 |
||
|
11
|
11
83671-75KA0-000 RUN,RR DOOR GLASS,R4DR; 2007-06-01~ |
83671-75KA0-000 |
US $64.40 |
||
|
12
|
12
83675-75KA0-000 RUN,RR DOOR GLASS,L4DR; 2007-06-01~ |
83675-75KA0-000 |
US $64.40 |
||
|
13
|
13
83831-75KA0-000 WEATHERSTRIP,RR DR OUT,R4DR; 2007-06-01~ |
83831-75KA0-000 |
US $82.40 |
||
|
14
|
14
83841-75KA0-000 WEATHERSTRIP,RR DR OUT,L4DR; 2007-06-01~ |
83841-75KA0-000 |
US $82.40 |
||
|
15
|
15
84541-75KB0-000
ガラス,リヤドアウィンド,ライト
4DR; 2007-06-01~ |
84541-75KB0-000 |
— | ||
|
16
|
16
84546-75KB0-000
ガラス,リヤドアウィンド,レフト
4DR; 2007-06-01~ |
84546-75KB0-000 |
— | ||
|
17
|
17
81770-75KA0-000 SASH,RR DOOR CENTER,R4DR; 2007-06-01~ |
81770-75KA0-000 |
US $46.37 |
||
|
18
|
18
81780-75KA0-000 SASH,RR DOOR CENTER,L4DR; 2007-06-01~ |
81780-75KA0-000 |
US $46.37 |
||
|
19
|
19
02162-0612A-000 SCREWBolt, bracket 4DR; 2007-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
20
|
20
02122-0512A-000 SCREW4DR; 2007-06-01~ |
02122-0512A-000 |
from US $0.80 |
||
|
21
|
21
84551-75KB0-000 ガラス,リヤドアパーティション,ライト4DR; 2007-06-01~ |
84551-75KB0-000 |
US $101.20 |
||
|
22
|
22
84556-75KB0-000
GLASS,RR DR PARTITION,L
4DR; 2007-06-01~ |
84556-75KB0-000 |
— | ||
|
23
|
23
84665-75KA0-000 WEATHERSTRIP,RR DR PARTITION,R4DR; 2007-06-01~ |
84665-75KA0-000 |
US $42.69 |
||
|
24
|
24
84675-75KA0-000 WEATHERSTRIP,RR DR PARTITION,L4DR; 2007-06-01~ |
84675-75KA0-000 |
US $42.69 |
||
