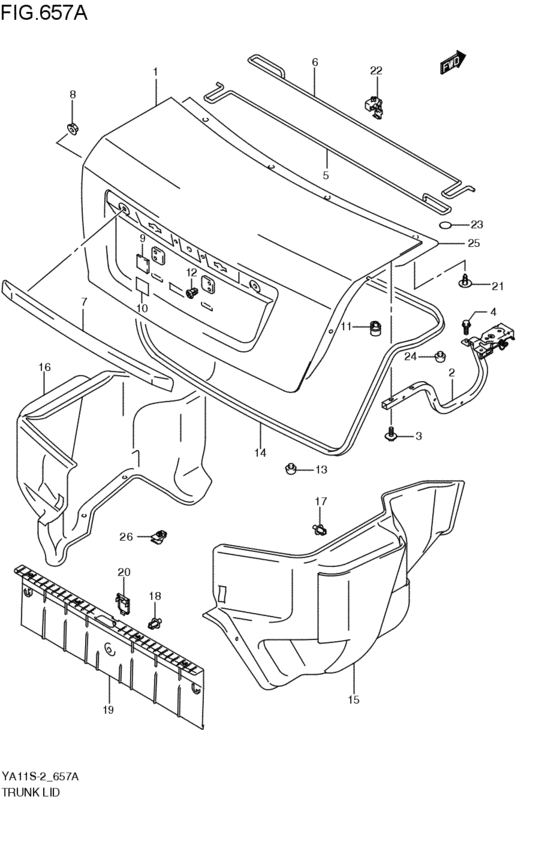

Крышка багажника (4DR; 2008-07-01~) Diagram Suzuki SX4
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- Number of doors
- 4DR
- grade
- BG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
65700-75K30-000
Panel assy,trunk lid
4DR; 2008-07-01~ |
65700-75K30-000 |
— | ||
| replacement | |||||
|
1
|
1
65700-75840-000 PANEL ASSY,TRUNK LID4DR; 2008-07-01~ |
65700-75840-000 |
US $513.92 |
||
|
2
|
2
65810-54LA0-000 HINGE,TRUNK LID4DR; 2008-07-01~ |
65810-54LA0-000 |
from US $74.84 |
||
|
3
|
3
09116-06171-000 BOLT(6X30)Bolt (6x30) 4DR; 2008-07-01~ |
09116-06171-000 |
from US $4.22 |
||
|
4
|
4
01551-0820A-000 BOLT4DR; 2008-07-01~ |
01551-0820A-000 |
from US $0.96 |
||
|
5
|
5
72811-54LA0-000 BAR,TRUNK LID HINGE TORSION,R4DR; 2008-07-01~ |
72811-54LA0-000 |
US $37.54 |
||
|
6
|
6
72812-54LA0-000 BAR,TRUNK LID HINGE TORSION,L4DR; 2008-07-01~ |
72812-54LA0-000 |
US $37.54 |
||
|
7
|
7
77230-75K10-0PG
ガーニッシュ,トランクリッド(クローム)
4DR; 2008-07-01~ |
77230-75K10-0PG |
— | ||
| replacement | |||||
|
7
|
7
77230-75K12-0PG GARNISH,TRUNK LID4DR; 2008-07-01~ |
77230-75K12-0PG |
US $213.44 |
||
|
8
|
8
08316-1006A-000 NUT4DR; 2008-07-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
9
|
9
63191-25C00-000 CUSHIONCushion, guard 4DR; 2008-07-01~ |
63191-25C00-000 |
from US $1.92 |
||
|
10
|
10
77151-82000-000
FILM
4DR; 2008-07-01~ |
77151-82000-000 |
— | ||
| replacements | |||||
|
10
|
10
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 4DR; 2008-07-01~ |
84761-50X50-000 |
US $6.72 |
||
|
10
|
10
77151-82010-000 Seal4DR; 2008-07-01~ |
77151-82010-000 |
US $1.44 |
||
|
11
|
11
82683-60B10-000 CUSHION4DR; 2008-07-01~ |
82683-60B10-000 |
US $1.92 |
||
|
12
|
12
09148-05035-000 NUT4DR; 2008-07-01~ |
09148-05035-000 |
US $12.90 |
||
|
13
|
13
82711-65J00-000 CUSHION4DR; 2008-07-01~ |
82711-65J00-000 |
from US $1.49 |
||
|
14
|
14
84681-75K00-000
Weatherstrip,trunk lid opng
4DR; 2008-07-01~ |
84681-75K00-000 |
— | ||
| replacement | |||||
|
14
|
14
84681-75K01-000 WEATHERSTRIP,TRUNK LID OPNG4DR; 2008-07-01~ |
84681-75K01-000 |
US $71.76 |
||
|
15
|
15
76630-75K00-R2B TRIM,TRUNK ROOM SIDE,R4DR; 2008-07-01~ |
76630-75K00-R2B |
US $107.82 |
||
|
16
|
16
76640-75K00-R2B TRIM,TRUNK ROOM SIDE,L4DR; 2008-07-01~ |
76640-75K00-R2B |
US $107.82 |
||
|
17
|
17
09409-10302-5PK CLIP(BLACK)4DR; 2008-07-01~ |
09409-10302-5PK |
US $1.28 |
||
|
18
|
18
09409-07308-5PK CLIP(BLACK)4DR; 2008-07-01~ |
09409-07308-5PK |
from US $0.95 |
||
|
19
|
19
76661-75K00-5PK TRIM,TRUNK ROOM REAR4DR; 2008-07-01~ |
76661-75K00-5PK |
from US $53.97 |
||
|
20
|
20
76662-55G00-000 CAP,TRUNK ROOM RR TRIM4DR; 2008-07-01~ |
76662-55G00-000 |
US $4.16 |
||
|
21
|
21
09409-07332-000 CLIP4DR; 2008-07-01~ |
09409-07332-000 |
from US $1.26 |
||
|
22
|
22
76691-79E00-000 HOLDER,TRUNK OPENER SPR4DR; 2008-07-01~ |
76691-79E00-000 |
US $1.60 |
||
|
23
|
23
77111-75K00-000
Seal,trunk e-coating hole
4DR; 2008-07-01~ |
77111-75K00-000 |
— | ||
|
24
|
24
82711-65J00-000 CUSHION4DR; 2008-07-01~ |
82711-65J00-000 |
from US $1.49 |
||
|
25
|
25
76671-56KA0-R2B TRIM,TRUNK LID4DR; 2008-07-01~ |
76671-56KA0-R2B |
US $49.68 |
||
|
26
|
26
84851-80H00-5PK HOOK,LUGGAGE CARPET4DR; 2008-07-01~ |
84851-80H00-5PK |
US $4.27 |
||
