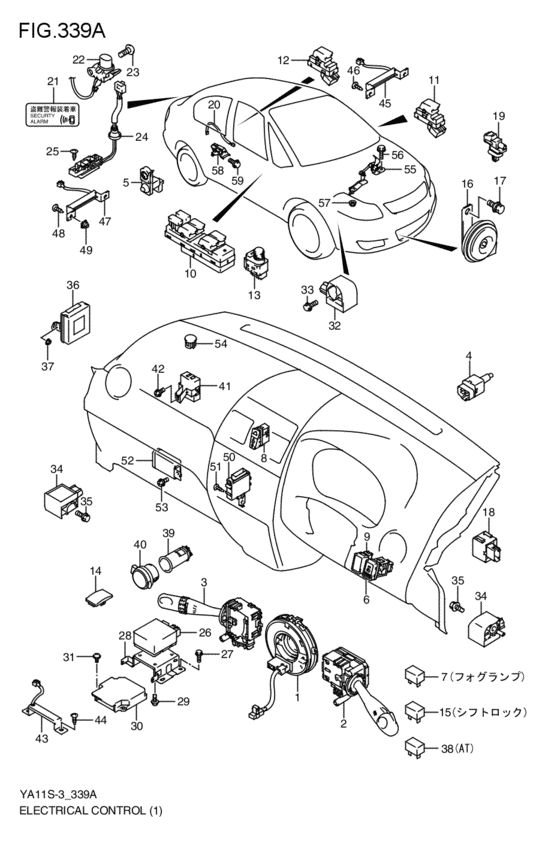

electrical control (4DR; 2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- Number of doors
- 4DR
- grade
- BG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37480-62J20-000 CABLE ASSY,CONTACT COIL4DR; 2009-01-01~ |
37480-62J20-000 |
from US $120.13 |
||
|
2
|
2
37210-82K00-000
Switch assy,lighting & turn
4DR; 2009-01-01~ |
37210-82K00-000 |
— | ||
| replacement | |||||
|
2
|
2
37210-82K01-000 SWITCH ASSY,LIGHTING&TURN4DR; 2009-01-01~ |
37210-82K01-000 |
US $116.29 |
||
|
3
|
3
37310-62J71-000 SWITCH ASSY,WIPER&WASHER4DR; 2009-01-01~ |
37310-62J71-000 |
US $104.14 |
||
|
4
|
4
37740-75H10-000
SWITCH ASSY,STOP LAMP
4DR; 2009-01-01~ |
37740-75H10-000 |
— | ||
| replacements | |||||
|
4
|
4
37741-75H10-000 Switch Assy,stop Lamp4DR; 2009-01-01~ |
37741-75H10-000 |
from US $14.15 |
||
|
4
|
4
37742-75H10-000 Bush,stop Lamp Sw4DR; 2009-01-01~ |
37742-75H10-000 |
from US $3.80 |
||
|
5
|
5
37670-68H10-000
Switch assy,door
4DR; 2009-01-01~ |
37670-68H10-000 |
— | ||
| replacement | |||||
|
5
|
5
37670-57L00-000 SWITCH ASSY,DOOR4DR; 2009-01-01~ |
37670-57L00-000 |
from US $9.79 |
||
|
6
|
6
37270-57L00-000 SWITCH ASSY,FR FOG4DR; 2009-01-01~ |
37270-57L00-000 |
US $39.74 |
||
|
7
|
7
38860-76F01-000 RELAY ASSYRelay, starting motor フオグランプリレ-; 4DR; 2009-01-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
8
|
8
37430-54L00-P4Z
SWITCH,HAZARD&SECURITY
4DR; 2009-01-01~ |
37430-54L00-P4Z |
— | ||
| replacement | |||||
|
8
|
8
37430-54L01-P4Z SWITCH,HAZARD&SECURITY4DR; 2009-01-01~ |
37430-54L01-P4Z |
US $59.25 |
||
|
9
|
9
37285-62J00-000 CAP,OPTION SW HOLE4DR; 2009-01-01~ |
37285-62J00-000 |
US $2.56 |
||
|
10
|
10
37990-80J00-000 SWITCH ASSY,P/W MASTER4DR; 2009-01-01~ |
37990-80J00-000 |
US $378.56 |
||
|
11
|
11
37995-62J00-000 SWITCH ASSY,P/W SUBサブスイツチ; 4DR; 2009-01-01~ |
37995-62J00-000 |
from US $16.92 |
||
|
12
|
12
37995-62J00-000 SWITCH ASSY,P/W SUBリヤスイツチ; 4DR; 2009-01-01~ |
37995-62J00-000 |
from US $16.92 |
||
|
13
|
13
37950-62J10-000
SWITCH ASSY,MIRROR
4DR; 2009-01-01~ |
37950-62J10-000 |
— | ||
| replacement | |||||
|
13
|
13
37950-62J11-000 SWITCH ASSY,MIRROR4DR; 2009-01-01~ |
37950-62J11-000 |
from US $32.87 |
||
|
14
|
14
37285-62J10-000 CAP,OPTION SW HOLE4DR; 2009-01-01~ |
37285-62J10-000 |
US $4.16 |
||
|
15
|
15
38860-76F01-000 RELAY ASSYRelay, starting motor シフトロツクリレ-; 4DR; 2009-01-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
16
|
16
38500-73H10-000
Horn assy
4DR; 2009-01-01~ |
38500-73H10-000 |
— | ||
| replacement | |||||
|
16
|
16
38500-73H11-000 HORN ASSY,LOW PITCHED4DR; 2009-01-01~ |
38500-73H11-000 |
US $71.39 |
||
|
17
|
17
09115-08001-000 BOLT(8X18)4DR; 2009-01-01~ |
09115-08001-000 |
US $15.10 |
||
|
18
|
18
38610-84F00-000 RELAY,TURN SIGNAL&4WAY4DR; 2009-01-01~ |
38610-84F00-000 |
from US $48 |
||
|
19
|
19
95643-58J00-000 SENSOR,AIR TEMPDENSO; 4DR; 2009-01-01~ |
95643-58J00-000 |
from US $21.24 |
||
|
20
|
20
36882-80J00-000 WIRE,RR HEIGHT SENSOR4DR; 2009-01-01~ |
36882-80J00-000 |
US $23.74 |
||
|
21
|
21
36771-58J00-000
LABEL,SECURITY ALARM
4DR; 2009-01-01~ |
36771-58J00-000 |
— | ||
| replacement | |||||
|
21
|
21
36771-58J01-000 Label,security Alarm4DR; 2009-01-01~ |
36771-58J01-000 |
US $2.80 |
||
|
22
|
22
37675-55G00-000 SWITCH ASSY,TRUNK4DR; 2009-01-01~ |
37675-55G00-000 |
US $14.32 |
||
|
23
|
23
02142-0508A-000 SCREWScrew, cap 4DR; 2009-01-01~ |
02142-0508A-000 |
from US $0.76 |
||
|
24
|
24
37178-79J00-000 SWITCH ASSY,BACK DOOR4DR; 2009-01-01~ |
37178-79J00-000 |
from US $44.64 |
||
|
25
|
25
03541-0416A-000 SCREWScrew, trunk box lamp 4DR; 2009-01-01~ |
03541-0416A-000 |
from US $0.76 |
||
|
26
|
26
38720-79JA0-000 CONTROLLER ASSY,EPS4DR; 2009-01-01~ |
38720-79JA0-000 |
US $1,149.12 |
||
|
27
|
27
09115-06005-000 BOLT(6X16)4DR; 2009-01-01~ |
09115-06005-000 |
US $1.28 |
||
|
28
|
28
38721-79J00-000 BRACKET,EPS CONT4DR; 2009-01-01~ |
38721-79J00-000 |
US $7.18 |
||
|
29
|
29
02162-0508A-000 SCREW4DR; 2009-01-01~ |
02162-0508A-000 |
from US $2.82 |
||
|
30
|
30
38910-80J12-000 CONTROLLER ASSY,A/B4DR; 2009-01-01~ |
38910-80J12-000 |
US $851.84 |
||
|
31
|
31
09115-06004-000 BOLT(6X16)4DR; 2009-01-01~ |
09115-06004-000 |
US $12.50 |
||
|
32
|
32
38930-80J00-000 SENSOR ASSY,FORWARD4DR; 2009-01-01~ |
38930-80J00-000 |
US $129.54 |
||
|
33
|
33
09115-06004-000 BOLT(6X16)4DR; 2009-01-01~ |
09115-06004-000 |
US $12.50 |
||
|
34
|
34
38930-80J10-000 SENSOR ASSY,SIDE AIR BAG4DR; 2009-01-01~ |
38930-80J10-000 |
US $129.54 |
||
|
35
|
35
09115-06004-000 BOLT(6X16)4DR; 2009-01-01~ |
09115-06004-000 |
US $12.50 |
||
|
36
|
36
38880-54L00-000 CONTROLLER ASSY,AT4DR; 2009-01-01~ |
38880-54L00-000 |
US $792 |
||
|
37
|
37
09159-06076-000 NUT4DR; 2009-01-01~ |
09159-06076-000 |
from US $1.28 |
||
|
38
|
38
38860-76F01-000 RELAY ASSYRelay, starting motor ATリレ-; 4DR; 2009-01-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
39
|
39
39420-76F00-000 BODY,SOCKET4DR; 2009-01-01~ |
39420-76F00-000 |
from US $6.82 |
||
|
40
|
40
39441-63J01-P4Z COVER,SOCKET4DR; 2009-01-01~ |
39441-63J01-P4Z |
US $4.96 |
||
|
41
|
41
37171-75K20-000
Controller assy,keyless start
4DR; 2009-01-01~ |
37171-75K20-000 |
— | ||
| replacement | |||||
|
41
|
41
37171-75K21-000 CONTROLLER ASSY,KLS4DR; 2009-01-01~ |
37171-75K21-000 |
US $287.04 |
||
|
42
|
42
02162-0612A-000 SCREWBolt, bracket 4DR; 2009-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
43
|
43
37175-62J00-000 ANTENNA ASSY,KLS INSIDE4DR; 2009-01-01~ |
37175-62J00-000 |
US $39.01 |
||
|
44
|
44
03141-0516A-000 SCREW4DR; 2009-01-01~ |
03141-0516A-000 |
from US $0.80 |
||
|
45
|
45
37175-80J10-000 ANTENNA ASSY,KLS LUGGAGE4DR; 2009-01-01~ |
37175-80J10-000 |
US $69.18 |
||
|
46
|
46
03541-0516A-000 SCREW4DR; 2009-01-01~ |
03541-0516A-000 |
from US $0.68 |
||
|
47
|
47
37175-80J00-000 ANTENNA ASSY,KLS BACK DR4DR; 2009-01-01~ |
37175-80J00-000 |
US $39.01 |
||
|
48
|
48
03541-0516A-000 SCREW4DR; 2009-01-01~ |
03541-0516A-000 |
from US $0.68 |
||
|
49
|
49
09148-05031-000 NUT4DR; 2009-01-01~ |
09148-05031-000 |
US $1.28 |
||
|
50
|
50
38620-80J00-000
Controller assy,auto leveling
4DR; 2009-01-01~ |
38620-80J00-000 |
— | ||
| replacement | |||||
|
50
|
50
38620-80J10-000 CONTROLLER ASSY,AUTO LEVELING4DR; 2009-01-01~ |
38620-80J10-000 |
US $292.56 |
||
|
51
|
51
02142-0512A-000 SCREWScrew, lower 4DR; 2009-01-01~ |
02142-0512A-000 |
from US $0.80 |
||
|
52
|
52
38680-80J01-000 CONTROLLER ASSY,AUTO LIGHT4DR; 2009-01-01~ |
38680-80J01-000 |
US $189.52 |
||
|
53
|
53
02162-0612A-000 SCREWBolt, bracket 4DR; 2009-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
54
|
54
38680-50J10-000 SENSOR ASSY,AUTO LIGHT4DR; 2009-01-01~ |
38680-50J10-000 |
US $48.94 |
||
|
55
|
55
38640-80J00-000 SENSOR ASSY,FR HEIGHT4DR; 2009-01-01~ |
38640-80J00-000 |
US $253.92 |
||
|
56
|
56
02162-0612A-000 SCREWBolt, bracket 4DR; 2009-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
57
|
57
08316-1008A-000 NUTNut, idle gear shaft 4DR; 2009-01-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
58
|
58
38640-80J10-000 SENSOR ASSY,RR HEIGHT4DR; 2009-01-01~ |
38640-80J10-000 |
US $191.36 |
||
|
59
|
59
02162-0612A-000 SCREWBolt, bracket 4DR; 2009-01-01~ |
02162-0612A-000 |
from US $0.80 |
||
