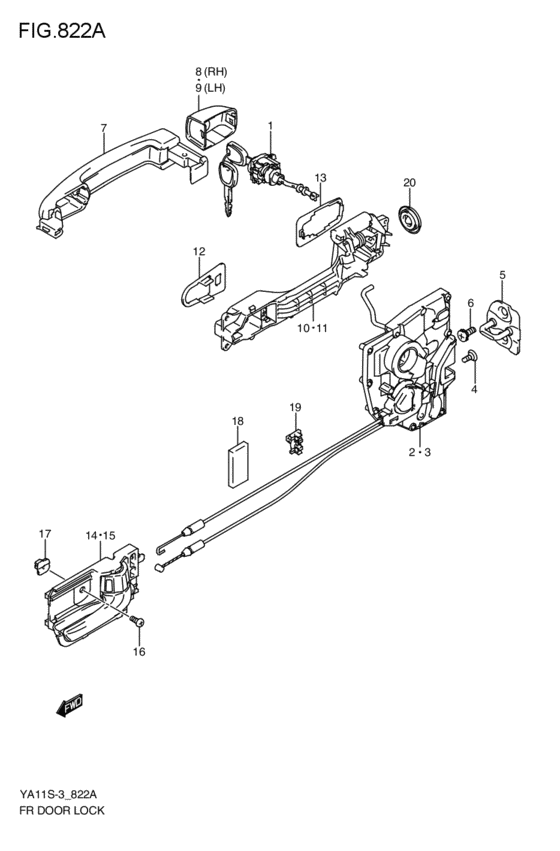

front door lock (フロント ドア ロツク; 2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- Number of doors
- 4DR
- grade
- BG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82270-80810-000 CYLINDER,FR DR LATCH,R2009-01-01~ |
82270-80810-000 |
US $51.15 |
||
|
2
|
2
82201-80J30-000
Latch assy,front door,r
2009-01-01~ |
82201-80J30-000 |
— | ||
| replacement | |||||
|
2
|
2
82201-80J34-000 LATCH ASSY,FR DR,R2009-01-01~ |
82201-80J34-000 |
US $294.40 |
||
|
3
|
3
82202-80J40-000
Latch assy,front door,l
2009-01-01~ |
82202-80J40-000 |
— | ||
| replacement | |||||
|
3
|
3
82202-80J44-000 LATCH ASSY,FR DR,L2009-01-01~ |
82202-80J44-000 |
US $151.62 |
||
|
4
|
4
09137-06028-000 SCREW(6X18)2009-01-01~ |
09137-06028-000 |
US $14.40 |
||
|
5
|
5
82610-63J00-000 STRIKER,DOOR LATCH2009-01-01~ |
82610-63J00-000 |
US $12.59 |
||
|
6
|
6
09137-08004-000 SCREW(8X18)2009-01-01~ |
09137-08004-000 |
from US $0.90 |
||
| replacement | |||||
|
6
|
6
09137-08011-000 SCREW(8X18)2009-01-01~ |
09137-08011-000 |
US $1.44 |
||
|
7
|
7
82810-63811-ZFM HANDLE,SIDE DOOR OUTBG,FG,FR; 2009-01-01~ |
82810-63811-ZFM |
US $151.25 |
||
|
7
|
7
82810-63811-ZMT HANDLE,SIDE DOOR OUTBG,FG,FR; 2009-01-01~ |
82810-63811-ZMT |
US $151.25 |
||
|
7
|
7
82810-63811-ZMU HANDLE,SIDE DOOR OUTBG,FG,FR; 2009-01-01~ |
82810-63811-ZMU |
US $151.25 |
||
|
7
|
7
82810-63811-ZMV HANDLE,SIDE DOOR OUTBG,FG,FR; 2009-01-01~ |
82810-63811-ZMV |
US $151.25 |
||
|
8
|
8
82813-63J00-ZMT CAP,FR DR OUTライト; BG,FG,FR; 2009-01-01~ |
82813-63J00-ZMT |
US $15.16 |
||
|
8
|
8
82813-63J00-ZMU CAP,FR DR OUTライト; BG,FG,FR; 2009-01-01~ |
82813-63J00-ZMU |
US $15.16 |
||
|
8
|
8
82813-63J00-ZMV CAP,FR DR OUTライト; BG,FG,FR; 2009-01-01~ |
82813-63J00-ZMV |
US $15.16 |
||
|
9
|
9
82813-63J10-ZMT CAP,FR DR OUTレフト; BG,FG,FR; 2009-01-01~ |
82813-63J10-ZMT |
US $17.22 |
||
|
9
|
9
82813-63J10-ZMU CAP,FR DR OUTレフト; BG,FG,FR; 2009-01-01~ |
82813-63J10-ZMU |
US $17.22 |
||
|
9
|
9
82813-63J10-ZMV CAP,FR DR OUTレフト; BG,FG,FR; 2009-01-01~ |
82813-63J10-ZMV |
US $17.22 |
||
|
10
|
10
82811-63J10-000 FRAME,FR DOOR OUT,R2009-01-01~ |
82811-63J10-000 |
US $31.65 |
||
|
11
|
11
82821-63J10-000 FRAME,FR DOOR OUT,L2009-01-01~ |
82821-63J10-000 |
US $31.65 |
||
|
12
|
12
82814-63J00-000 PAD,FRONT DOOR OUT2009-01-01~ |
82814-63J00-000 |
from US $1.52 |
||
|
13
|
13
82815-63J00-000 CUSHION,SIDE DR OUT2009-01-01~ |
82815-63J00-000 |
from US $1.60 |
||
|
14
|
14
83110-63J20-FC6 HANDLE,DR INS,R2009-01-01~ |
83110-63J20-FC6 |
US $37.17 |
||
|
15
|
15
83130-63J20-FC6 HANDLE,DR INS,L2009-01-01~ |
83130-63J20-FC6 |
US $37.17 |
||
|
16
|
16
09132-05058-000 SCREW(5X12)2009-01-01~ |
09132-05058-000 |
US $12.50 |
||
|
17
|
17
09148-05031-000 NUT2009-01-01~ |
09148-05031-000 |
US $1.28 |
||
|
18
|
18
77591-75000-000 PAD2009-01-01~ |
77591-75000-000 |
US $2.28 |
||
|
19
|
19
83271-50E00-000 CLIP,DR HANDLE ROD2009-01-01~ |
83271-50E00-000 |
US $1.60 |
||
|
20
|
20
09250-25007-000 CAP(OD:25.0)2009-01-01~ |
09250-25007-000 |
from US $0.97 |
||
