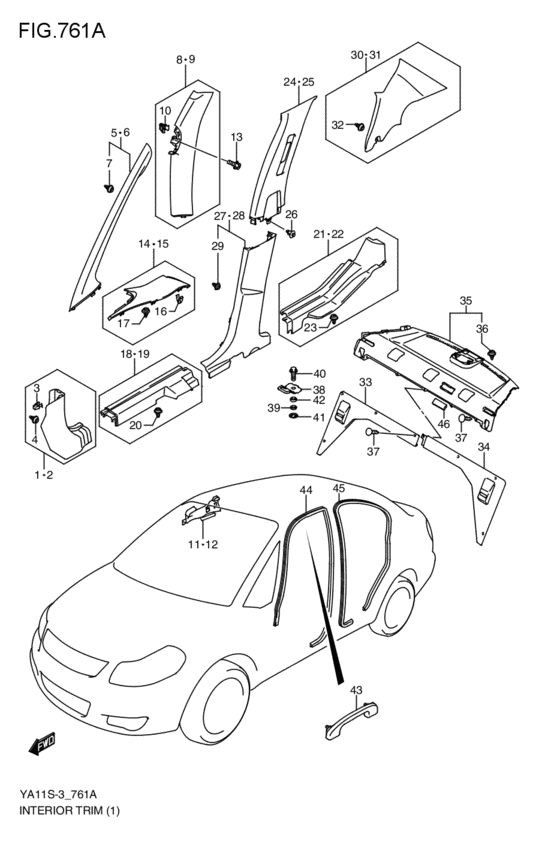

i trim interior (4DR; 2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- Number of doors
- 4DR
- grade
- BG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
76130-80J10-P4Z TRIM,DASH SIDE,R4DR; 2009-01-01~ |
76130-80J10-P4Z |
US $21.16 |
||
|
2
|
2
76140-80J00-P4Z TRIM,DASH SIDE,L4DR; 2009-01-01~ |
76140-80J00-P4Z |
US $21.16 |
||
|
3
|
3
09409-08326-000 CLIP4DR; 2009-01-01~ |
09409-08326-000 |
from US $0.76 |
||
|
4
|
4
09409-10312-000 CLIP4DR; 2009-01-01~ |
09409-10312-000 |
from US $1.13 |
||
|
5
|
5
76110-80J10-6GS TRIM,FR PILLAR FR,R4DR; 2009-01-01~ |
76110-80J10-6GS |
US $67.71 |
||
|
6
|
6
76120-80J10-6GS TRIM,FR PILLAR FR,L4DR; 2009-01-01~ |
76120-80J10-6GS |
US $67.71 |
||
|
7
|
7
09409-10312-000 CLIP4DR; 2009-01-01~ |
09409-10312-000 |
from US $1.13 |
||
|
8
|
8
76330-80J30-6GS TRIM,FR PLR RR,R(GRAY)4DR; 2009-01-01~ |
76330-80J30-6GS |
US $64.03 |
||
|
9
|
9
76340-80J30-6GS TRIM,FR PLR RR,L(GRAY)4DR; 2009-01-01~ |
76340-80J30-6GS |
US $64.03 |
||
|
10
|
10
09409-07335-000 CLIP4DR; 2009-01-01~ |
09409-07335-000 |
from US $1.04 |
||
|
11
|
11
76333-80J00-000 HOLDER,FR PILLAR TRIM,R4DR; 2009-01-01~ |
76333-80J00-000 |
US $8.17 |
||
|
12
|
12
76343-80J00-000 HOLDER,FR PILLAR TRIM,L4DR; 2009-01-01~ |
76343-80J00-000 |
US $8.17 |
||
|
13
|
13
02162-0616A-000 SCREW4DR; 2009-01-01~ |
02162-0616A-000 |
from US $0.95 |
||
| replacement | |||||
|
13
|
13
02162-0616B-000 SCREWBolt, adjust 4DR; 2009-01-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
14
|
14
76310-79J10-P4Z GARNISH,FR PLR LWR,R(GRAY)4DR; 2009-01-01~ |
76310-79J10-P4Z |
US $37.90 |
||
|
15
|
15
76320-79J10-P4Z GARNISH,FR PLR LWR,L(GRAY)4DR; 2009-01-01~ |
76320-79J10-P4Z |
US $37.90 |
||
|
16
|
16
09409-08326-000 CLIP4DR; 2009-01-01~ |
09409-08326-000 |
from US $0.76 |
||
|
17
|
17
09409-10312-000 CLIP4DR; 2009-01-01~ |
09409-10312-000 |
from US $1.13 |
||
|
18
|
18
76150-80J00-P4Z SCUFF,SIDE SILL FR,R4DR; 2009-01-01~ |
76150-80J00-P4Z |
US $23.74 |
||
|
19
|
19
76160-80J00-P4Z SCUFF,SIDE SILL FR,L4DR; 2009-01-01~ |
76160-80J00-P4Z |
US $32.69 |
||
|
20
|
20
09409-10312-000 CLIP4DR; 2009-01-01~ |
09409-10312-000 |
from US $1.13 |
||
|
21
|
21
76170-75K00-P4Z SCUFF,SIDE SILL,R4DR; 2009-01-01~ |
76170-75K00-P4Z |
US $14.72 |
||
|
22
|
22
76180-75K00-P4Z SCUFF,SIDE SILL,L4DR; 2009-01-01~ |
76180-75K00-P4Z |
US $14.72 |
||
|
23
|
23
09409-10312-000 CLIP4DR; 2009-01-01~ |
09409-10312-000 |
from US $1.13 |
||
|
24
|
24
76210-80J10-6GS TRIM,CTR PILLAR UPR,R4DR; 2009-01-01~ |
76210-80J10-6GS |
US $43.79 |
||
|
25
|
25
76220-80J10-6GS TRIM,CTR PILLAR UPR,L4DR; 2009-01-01~ |
76220-80J10-6GS |
US $43.79 |
||
|
26
|
26
09409-07308-P4Z CLIP(GRAY)4DR; 2009-01-01~ |
09409-07308-P4Z |
US $1.76 |
||
|
27
|
27
76230-79J00-P4Z TRIM,CTR PILLAR LWR,R4DR; 2009-01-01~ |
76230-79J00-P4Z |
US $41.58 |
||
|
28
|
28
76240-79J00-P4Z TRIM,CTR PILLAR LWR,L4DR; 2009-01-01~ |
76240-79J00-P4Z |
US $41.58 |
||
|
29
|
29
09409-10312-000 CLIP4DR; 2009-01-01~ |
09409-10312-000 |
from US $1.13 |
||
|
30
|
30
76250-75K00-6GS TRIM,RR PILLAR INNER,R4DR; 2009-01-01~ |
76250-75K00-6GS |
US $124.38 |
||
|
31
|
31
76260-75K00-6GS TRIM,RR PILLAR INNER,L4DR; 2009-01-01~ |
76260-75K00-6GS |
US $124.38 |
||
|
32
|
32
09409-10312-000 CLIP4DR; 2009-01-01~ |
09409-10312-000 |
from US $1.13 |
||
|
33
|
33
76281-75K00-P4Z TRIM,PARTITION FRONT,R4DR; 2009-01-01~ |
76281-75K00-P4Z |
US $22.26 |
||
|
34
|
34
76282-75K00-P4Z TRIM,PARTITION FRONT,L4DR; 2009-01-01~ |
76282-75K00-P4Z |
US $22.26 |
||
|
35
|
35
76290-75K10-P4Z TRIM,PARTITION4DR; 2009-01-01~ |
76290-75K10-P4Z |
US $213.44 |
||
|
36
|
36
09409-10312-000 CLIP4DR; 2009-01-01~ |
09409-10312-000 |
from US $1.13 |
||
|
37
|
37
09409-10302-5PK CLIP(BLACK)4DR; 2009-01-01~ |
09409-10302-5PK |
US $1.28 |
||
|
38
|
38
75481-55G00-000 PLATE,TETHER ANCHORAGE4DR; 2009-01-01~ |
75481-55G00-000 |
US $7.18 |
||
|
39
|
39
09160-08117-000 WASHER(8.5X16X4)4DR; 2009-01-01~ |
09160-08117-000 |
US $15.80 |
||
|
40
|
40
09103-08276-000 BOLT(8X25)4DR; 2009-01-01~ |
09103-08276-000 |
US $19.50 |
||
|
41
|
41
38570-65D00-000 STOPPER,HORN4DR; 2009-01-01~ |
38570-65D00-000 |
US $1.62 |
||
|
42
|
42
09160-08144-000 WASHER(8.5X16X2.6)4DR; 2009-01-01~ |
09160-08144-000 |
from US $3.71 |
||
|
43
|
43
76410-55G02-6GS GRIP,ASST4DR; 2009-01-01~ |
76410-55G02-6GS |
US $19.87 |
||
|
44
|
44
76291-80J00-000
Trim,front door opening
4DR; 2009-01-01~ |
76291-80J00-000 |
— | ||
| replacement | |||||
|
44
|
44
76291-80J01-000 TRIM,FR DOOR OPENING4DR; 2009-01-01~ |
76291-80J01-000 |
US $125.60 |
||
|
45
|
45
76295-75K00-000 TRIM,RR DOOR OPENING4DR; 2009-01-01~ |
76295-75K00-000 |
from US $67.41 |
||
|
46
|
46
76294-75K10-P4Z COVER,CENTER SEAT BELT4DR; 2009-01-01~ |
76294-75K10-P4Z |
US $13.76 |
||
