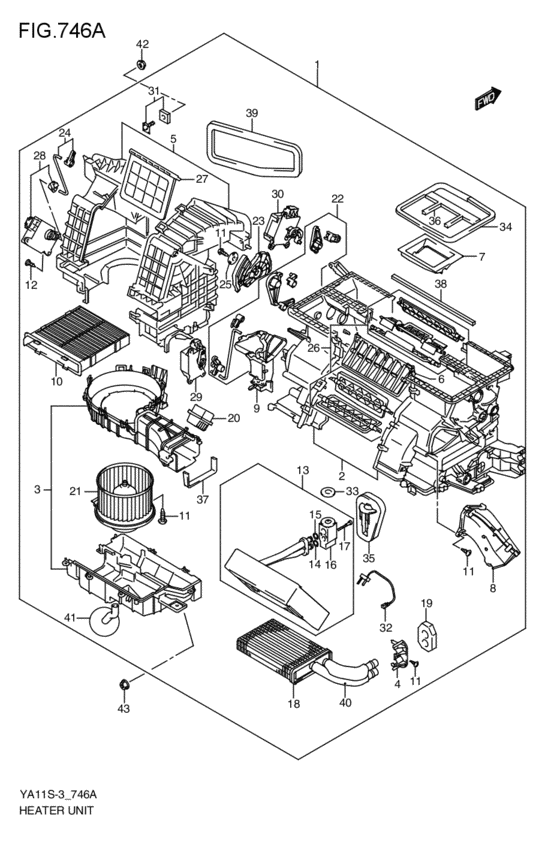

ヒ - タユニット (2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- Number of doors
- 4DR
- grade
- BG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-80J22-000
Hvac unit
2WD; 2009-01-01~ |
74100-80J22-000 |
— | ||
| replacement | |||||
|
1
|
1
74100-80J24-000 HVAC UNIT2WD; 2009-01-01~ |
74100-80J24-000 |
US $1,300.32 |
||
|
2
|
2
74110-80J20-000
CASE,HEATER
2WD; 2009-01-01~ |
74110-80J20-000 |
— | ||
|
3
|
3
74130-80J20-000 CASE,BLOWER LOWER2009-01-01~ |
74130-80J20-000 |
US $53.73 |
||
|
4
|
4
74272-80J00-000 COVER2009-01-01~ |
74272-80J00-000 |
US $4.86 |
||
|
5
|
5
74210-80J00-000 CASE,BLOWER2009-01-01~ |
74210-80J00-000 |
US $70.66 |
||
|
6
|
6
74282-80J00-000 GUIDE2009-01-01~ |
74282-80J00-000 |
US $8.24 |
||
|
7
|
7
74116-80J02-000 CASE,VENT OUTLET2009-01-01~ |
74116-80J02-000 |
US $43.20 |
||
|
8
|
8
74114-80J00-000 DUCT,DRVR SIDE2009-01-01~ |
74114-80J00-000 |
US $5.41 |
||
|
9
|
9
74115-80J00-000 DUCT,ASST SIDE2009-01-01~ |
74115-80J00-000 |
US $10.12 |
||
|
10
|
10
95860-80J00-000 AIRCON FILTER2009-01-01~ |
95860-80J00-000 |
from US $33.60 |
||
|
11
|
11
95654-80J00-000 SCREW2009-01-01~ |
95654-80J00-000 |
US $3.09 |
||
|
12
|
12
95655-80J00-000 SCREW2009-01-01~ |
95655-80J00-000 |
US $3.09 |
||
|
13
|
13
95411-80J10-000
Evaporator assy
2009-01-01~ |
95411-80J10-000 |
— | ||
| replacement | |||||
|
13
|
13
95411-80J12-000
EVAPORATOR ASSY
2009-01-01~ |
95411-80J12-000 |
— | ||
|
14
|
14
95418-80J00-000 O-RING,ID:10.82009-01-01~ |
95418-80J00-000 |
US $1.60 |
||
|
15
|
15
95897-54J00-000 O-RING2009-01-01~ |
95897-54J00-000 |
US $1.60 |
||
|
16
|
16
95431-80J00-000
Valve,expansion
2009-01-01~ |
95431-80J00-000 |
— | ||
| replacement | |||||
|
16
|
16
95431-80J01-000 VALVE,EXPANSION2009-01-01~ |
95431-80J01-000 |
from US $76.80 |
||
|
17
|
17
95417-80J00-000 BOLT,5X352009-01-01~ |
95417-80J00-000 |
US $12.29 |
||
|
18
|
18
74120-80J10-000 CORE ASSY, HEATER2009-01-01~ |
74120-80J10-000 |
US $345.92 |
||
|
19
|
19
74243-80J00-000 PACKING2009-01-01~ |
74243-80J00-000 |
US $10.08 |
||
|
20
|
20
95626-80J00-000 POWER TRANSISTOR2009-01-01~ |
95626-80J00-000 |
from US $88.69 |
||
|
21
|
21
74150-80J00-000 MOTOR,BLOW2009-01-01~ |
74150-80J00-000 |
US $345.92 |
||
|
22
|
22
74220-80JA0-000 LEVER,HEATER2009-01-01~ |
74220-80JA0-000 |
US $53.73 |
||
|
23
|
23
74222-80JA0-000 LEVER,MODE MAIN2009-01-01~ |
74222-80JA0-000 |
US $5.85 |
||
|
24
|
24
74220-80J00-000 LEVER,FRESH AIR DR2009-01-01~ |
74220-80J00-000 |
US $8.17 |
||
|
25
|
25
74176-54J00-000 WASHER,LINK2009-01-01~ |
74176-54J00-000 |
US $3.31 |
||
|
26
|
26
74170-80J12-000 DOOR,VENT2009-01-01~ |
74170-80J12-000 |
US $39.74 |
||
|
27
|
27
74171-80J00-000 DOOR,FRESH AIR2009-01-01~ |
74171-80J00-000 |
US $36.80 |
||
|
28
|
28
95650-80J00-000
Actuator,fresh air
2009-01-01~ |
95650-80J00-000 |
— | ||
| replacement | |||||
|
28
|
28
95650-80J01-000 ACTUATOR,FRESH AIR2009-01-01~ |
95650-80J01-000 |
from US $49.79 |
||
|
29
|
29
95651-80J00-000
Actuator,air mixture
2009-01-01~ |
95651-80J00-000 |
— | ||
| replacement | |||||
|
29
|
29
95651-80J01-000 ACTUATOR,AIR MIXTURE2009-01-01~ |
95651-80J01-000 |
US $88.16 |
||
|
30
|
30
95653-80J00-000
Actuator,mode
2009-01-01~ |
95653-80J00-000 |
— | ||
| replacement | |||||
|
30
|
30
95653-80J01-000 ACTUATOR,AIR MODE2009-01-01~ |
95653-80J01-000 |
from US $25.07 |
||
|
31
|
31
95660-80J00-000
Bolt
2009-01-01~ |
95660-80J00-000 |
— | ||
| replacement | |||||
|
31
|
31
95660-80J01-000 Bolt2009-01-01~ |
95660-80J01-000 |
US $7.95 |
||
|
32
|
32
95541-80J00-000 SENSOR2009-01-01~ |
95541-80J00-000 |
US $15.20 |
||
|
33
|
33
74271-80J10-000
Grommet
2009-01-01~ |
74271-80J10-000 |
— | ||
| replacement | |||||
|
33
|
33
74271-80J11-000 GROMMET2009-01-01~ |
74271-80J11-000 |
US $10.56 |
||
|
34
|
34
74246-80J00-000 PACKING2009-01-01~ |
74246-80J00-000 |
US $13.92 |
||
|
35
|
35
74252-80J00-000 SEAL2009-01-01~ |
74252-80J00-000 |
US $15.36 |
||
|
36
|
36
74247-80J00-000 PACKING2009-01-01~ |
74247-80J00-000 |
US $12.64 |
||
|
37
|
37
74242-80J00-000 PACKING2009-01-01~ |
74242-80J00-000 |
US $7.04 |
||
|
38
|
38
74248-80J00-000 PACKING,DEFROSTER OUTLET2009-01-01~ |
74248-80J00-000 |
US $6.62 |
||
|
39
|
39
74241-80J00-000 PACKING,INTAKE2009-01-01~ |
74241-80J00-000 |
US $15.36 |
||
|
40
|
40
74244-80J10-000 PACKING2009-01-01~ |
74244-80J10-000 |
US $5.67 |
||
|
41
|
41
95481-80J00-000 HOSE,DRAIN2009-01-01~ |
95481-80J00-000 |
US $5.81 |
||
|
42
|
42
09159-06081-000 NUT2009-01-01~ |
09159-06081-000 |
US $12.50 |
||
|
43
|
43
08361-2506A-000 NUT2009-01-01~ |
08361-2506A-000 |
US $0.80 |
||
