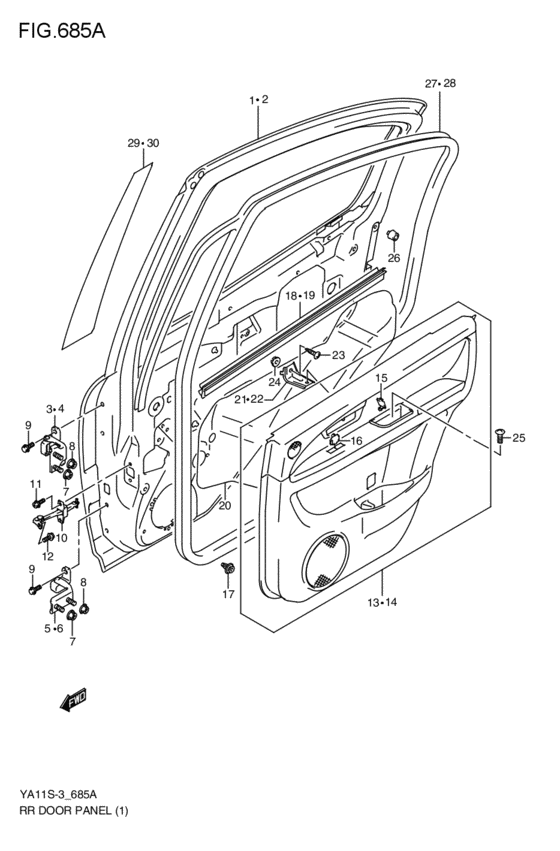

rear door panel (4DR; 2009-01-01~) Diagram Suzuki SX4
- Year
- 2009 - 2011
- Sales region
- Japan
- drive
- 2WD
- Number of doors
- 4DR
- grade
- BG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68003-75811-000 PANEL SET,REAR DOOR,R4DR; 2009-01-01~ |
68003-75811-000 |
from US $472.14 |
||
|
2
|
2
68004-75811-000 PANEL SET,REAR DOOR,L4DR; 2009-01-01~ |
68004-75811-000 |
US $675.84 |
||
|
3
|
3
69410-63J00-000 HINGE,RR DR UPR,R4DR; 2009-01-01~ |
69410-63J00-000 |
from US $32.57 |
||
|
4
|
4
69420-63J00-000 HINGE,RR DR UPR,L4DR; 2009-01-01~ |
69420-63J00-000 |
from US $29.43 |
||
|
5
|
5
69430-63J00-000 HINGE,RR DR LWR,R4DR; 2009-01-01~ |
69430-63J00-000 |
from US $30.40 |
||
|
6
|
6
69440-63J00-000 HINGE,RR DR LWR,L4DR; 2009-01-01~ |
69440-63J00-000 |
from US $32.57 |
||
|
7
|
7
08361-2508A-000 NUT4DR; 2009-01-01~ |
08361-2508A-000 |
from US $0.80 |
||
|
8
|
8
09159-08132-000 NUT4DR; 2009-01-01~ |
09159-08132-000 |
US $14.40 |
||
|
9
|
9
09103-08389-000 BOLT(8X24)4DR; 2009-01-01~ |
09103-08389-000 |
US $17.30 |
||
|
10
|
10
81810-54G03-000
Stop comp,side door open
4DR; 2009-01-01~ |
81810-54G03-000 |
— | ||
| replacement | |||||
|
10
|
10
81810-54G04-000 STOP,SIDE DOOR OPEN4DR; 2009-01-01~ |
81810-54G04-000 |
US $33.60 |
||
|
11
|
11
09122-86004-000 SCREW(6X20)4DR; 2009-01-01~ |
09122-86004-000 |
US $11.80 |
||
|
12
|
12
09112-08015-000 BOLT(8X25)4DR; 2009-01-01~ |
09112-08015-000 |
US $19.50 |
||
|
13
|
13
83730-54LL0-GJG
TRIM,REAR DOOR,R
4DR; 2009-01-01~ |
83730-54LL0-GJG |
— | ||
| replacement | |||||
|
13
|
13
83730-54LL2-GJG TRIM,REAR DOOR,R4DR; 2009-01-01~ |
83730-54LL2-GJG |
US $390.08 |
||
|
14
|
14
83740-54LL0-GJG
Trim comp,rear door,l
4DR; 2009-01-01~ |
83740-54LL0-GJG |
— | ||
| replacement | |||||
|
14
|
14
83740-54LL2-GJG
TRIM,REAR DOOR,L
4DR; 2009-01-01~ |
83740-54LL2-GJG |
— | ||
|
15
|
15
83752-80J00-5PK CAP,SIDE DR INSIDE CASE4DR; 2009-01-01~ |
83752-80J00-5PK |
US $4.86 |
||
|
16
|
16
83754-80J00-P4Z CAP,INSIDE HDL BEZEL4DR; 2009-01-01~ |
83754-80J00-P4Z |
US $5.37 |
||
|
17
|
17
09409-10312-000 CLIP4DR; 2009-01-01~ |
09409-10312-000 |
from US $1.13 |
||
|
18
|
18
83871-75KB0-000 WEATHERSTRIP,RR DR INR,R4DR; 2009-01-01~ |
83871-75KB0-000 |
US $43.33 |
||
|
19
|
19
83881-75KB0-000 WEATHERSTRIP,RR DR INR,L4DR; 2009-01-01~ |
83881-75KB0-000 |
US $43.33 |
||
|
20
|
20
83913-80J00-000 COVER,RR DR SEALING4DR; 2009-01-01~ |
83913-80J00-000 |
US $5.12 |
||
|
21
|
21
83751-75HA0-000 BRACKET,DR TRIM,R4DR; 2009-01-01~ |
83751-75HA0-000 |
US $3.97 |
||
|
22
|
22
83756-75HA0-000 BRACKET,DR TRIM,L4DR; 2009-01-01~ |
83756-75HA0-000 |
US $3.97 |
||
|
23
|
23
03241-0612A-000 SCREW4DR; 2009-01-01~ |
03241-0612A-000 |
US $0.80 |
||
|
24
|
24
09148-06007-000 NUT4DR; 2009-01-01~ |
09148-06007-000 |
from US $0.86 |
||
|
25
|
25
09132-05058-000 SCREW(5X12)4DR; 2009-01-01~ |
09132-05058-000 |
US $12.50 |
||
|
26
|
26
82711-65J00-000 CUSHION4DR; 2009-01-01~ |
82711-65J00-000 |
from US $1.49 |
||
|
27
|
27
84661-75KA0-000 WEATHERSTRIP,RR DR OPNG,R4DR; 2009-01-01~ |
84661-75KA0-000 |
US $137.60 |
||
|
28
|
28
84671-75KA0-000 WEATHERSTRIP,RR DR OPNG,L4DR; 2009-01-01~ |
84671-75KA0-000 |
US $76.18 |
||
|
29
|
29
83931-80J00-0CB TAPE,RR DOOR OUTER FR R4DR; 2009-01-01~ |
83931-80J00-0CB |
from US $24.17 |
||
|
30
|
30
83932-80J00-0CB TAPE,RR DOOR OUTER FR,L4DR; 2009-01-01~ |
83932-80J00-0CB |
US $61.60 |
||
