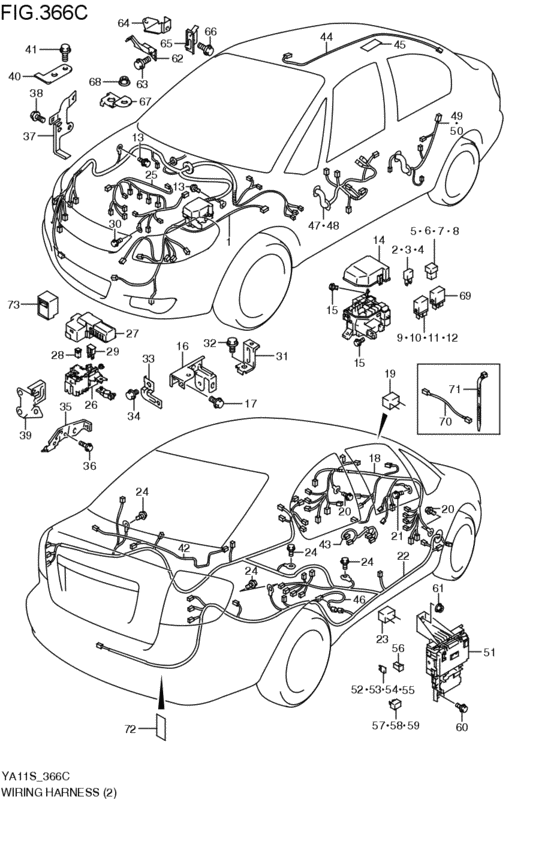

wire ring harness (4DR; 2007-06-01~) Diagram Suzuki SX4
- Year
- 2007 - 2011
- Sales region
- Japan
- Engine
- M15A
- drive
- 2WD
- transmission
- AT
- Number of doors
- 4DR
- grade
- G
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-80J01-000
Harness assy,main
4DR:G; 2007-06-01~ |
36610-80J01-000 |
— | ||
|
2
|
2
09481-15501-000 FUSE(15A)4DR; 2007-06-01~ |
09481-15501-000 |
from US $3.25 |
||
|
3
|
3
09481-20501-000 FUSE(20A)4DR; 2007-06-01~ |
09481-20501-000 |
from US $2.28 |
||
|
4
|
4
09481-30501-000 FUSE(30A)4DR; 2007-06-01~ |
09481-30501-000 |
from US $1.08 |
||
|
5
|
5
09481-30401-000 FUSE(30A)4DR; 2007-06-01~ |
09481-30401-000 |
from US $5.96 |
||
|
6
|
6
09481-40401-000 FUSE(40A)4DR; 2007-06-01~ |
09481-40401-000 |
from US $3.83 |
||
|
7
|
7
09481-50401-000 FUSE(50A)4DR; 2007-06-01~ |
09481-50401-000 |
US $46 |
||
|
8
|
8
09481-60401-000 FUSE(60A)4DR; 2007-06-01~ |
09481-60401-000 |
from US $3.92 |
||
|
9
|
9
38860-76F01-000 RELAY ASSYRelay, starting motor スタータ; 4DR; 2007-06-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
10
|
10
38860-76F01-000 RELAY ASSYRelay, starting motor ラジエータ; 4DR; 2007-06-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
11
|
11
38860-76F01-000 RELAY ASSYRelay, starting motor ヘッドライト; 4DR:G; 2007-06-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
12
|
12
38860-76F01-000 RELAY ASSYRelay, starting motor テールランプ; 4DR:G; 2007-06-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
13
|
13
09115-06005-000 BOLT(6X16)4DR; 2007-06-01~ |
09115-06005-000 |
US $1.28 |
||
|
14
|
14
36717-80J00-000 COVER,RELAY BOX4DR; 2007-06-01~ |
36717-80J00-000 |
US $23 |
||
|
15
|
15
02162-0616B-000 SCREWBolt, adjust 4DR; 2007-06-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
16
|
16
36614-79J10-000 BRACKET,ENG HARN4DR; 2007-06-01~ |
36614-79J10-000 |
US $8.17 |
||
|
17
|
17
01550-0812A-000 BOLT4DR; 2007-06-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
18
|
18
36620-80J21-000
ハーネスアッシ,インストゥルメントパネル
4DR:G; 2007-06-01~ |
36620-80J21-000 |
— | ||
|
19
|
19
36639-74F00-000 DIODE4DR; 2007-06-01~ |
36639-74F00-000 |
US $20.98 |
||
|
20
|
20
09115-06005-000 BOLT(6X16)4DR; 2007-06-01~ |
09115-06005-000 |
US $1.28 |
||
|
21
|
21
02162-0612A-000 SCREWBolt, bracket 4DR; 2007-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
22
|
22
36630-75K00-000
ハーネスアッシ,フロア
4DR:G; 2007-06-01~ |
36630-75K00-000 |
— | ||
| replacement | |||||
|
22
|
22
36630-75K01-000
New Genuine Part
4DR:G; 2007-06-01~ |
36630-75K01-000 |
— | ||
|
23
|
23
36639-74F00-000 DIODE4DR; 2007-06-01~ |
36639-74F00-000 |
US $20.98 |
||
|
24
|
24
09115-06005-000 BOLT(6X16)4DR; 2007-06-01~ |
09115-06005-000 |
US $1.28 |
||
|
25
|
25
36650-80J00-000 HARNESS ASSY,ENGINE4DR; 2007-06-01~ |
36650-80J00-000 |
US $612.48 |
||
|
26
|
26
36740-80J00-000 BOX ASSY,MAIN FUSE4DR; 2007-06-01~ |
36740-80J00-000 |
US $116 |
||
|
27
|
27
36694-80J00-000 COVER,BATTERY TERMINAL4DR; 2007-06-01~ |
36694-80J00-000 |
US $11.63 |
||
|
28
|
28
09481-50401-000 FUSE(50A)4DR; 2007-06-01~ |
09481-50401-000 |
US $46 |
||
|
29
|
29
09481-80301-000 FUSE(80A)4DR; 2007-06-01~ |
09481-80301-000 |
from US $5.74 |
||
|
30
|
30
01550-0612A-000 BOLT4DR; 2007-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
31
|
31
36651-60J00-000 BRACKET,ENG HARN BLOCK4DR; 2007-06-01~ |
36651-60J00-000 |
US $2.83 |
||
|
32
|
32
01550-1025A-000 BOLTBolt, drive gear 4DR; 2007-06-01~ |
01550-1025A-000 |
from US $1.06 |
||
|
33
|
33
36652-60J00-000 BRACKET,ENG HARN T/M4DR; 2007-06-01~ |
36652-60J00-000 |
US $2.72 |
||
|
34
|
34
01550-0812A-000 BOLT4DR; 2007-06-01~ |
01550-0812A-000 |
from US $0.91 |
||
|
35
|
35
36651-79J60-000 BRACKET,ENG HARN HOOK4DR; 2007-06-01~ |
36651-79J60-000 |
US $6.40 |
||
|
36
|
36
01550-0612A-000 BOLT4DR; 2007-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
37
|
37
36653-80G00-000 BRACKET,O2 CONN4DR; 2007-06-01~ |
36653-80G00-000 |
US $4.01 |
||
|
38
|
38
01550-0612A-000 BOLT4DR; 2007-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
39
|
39
36651-79J30-000 BRACKET,ENG HARN4DR; 2007-06-01~ |
36651-79J30-000 |
US $4.42 |
||
|
40
|
40
36995-77E21-000 BRACKET,ENG HARN4DR; 2007-06-01~ |
36995-77E21-000 |
US $1.69 |
||
|
41
|
41
01550-0816A-000 BOLTBolt, rear 4DR; 2007-06-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
42
|
42
36670-75K10-000 HARNESS ASSY,TRUNK4DR; 2007-06-01~ |
36670-75K10-000 |
US $65.50 |
||
|
43
|
43
36615-80J00-000 WIRE,EPS4DR; 2007-06-01~ |
36615-80J00-000 |
US $76.18 |
||
|
44
|
44
36820-75K00-000 WIRE,DOME LAMP4DR; 2007-06-01~ |
36820-75K00-000 |
US $17.88 |
||
|
45
|
45
36930-82010-000 COVER,HARNESSCover, roof wire 4DR; 2007-06-01~ |
36930-82010-000 |
from US $1.73 |
||
|
46
|
46
36840-80J00-000 WIRE,FUEL PUMP4DR; 2007-06-01~ |
36840-80J00-000 |
US $34.96 |
||
|
47
|
47
36756-80J30-000
ワイヤ,パワーウィンドメイン
4DR:G; 2007-06-01~ |
36756-80J30-000 |
— | ||
|
48
|
48
36757-80J30-000
WIRE,P/W SUB
4DR:G; 2007-06-01~ |
36757-80J30-000 |
— | ||
|
49
|
49
36751-75K10-000
WIRE,RR DR SIDE,R
4DR:G; 2007-06-01~ |
36751-75K10-000 |
— | ||
|
50
|
50
36751-75KB0-000
WIRE,RR DR SIDE,L
4DR:G; 2007-06-01~ |
36751-75KB0-000 |
— | ||
|
51
|
51
36780-75K00-000
ボックスセット,J/B/BCM
4DR; 2007-06-01~2007-09-01 |
36780-75K00-000 |
— | ||
|
51
|
51
36780-75K01-000
Box set,j/b & bcm
4DR; 2007-10-01~ |
36780-75K01-000 |
— | ||
| replacement | |||||
|
51
|
51
36780-75K02-000
BOX SET,J/B&BCM
4DR; 2007-10-01~ |
36780-75K02-000 |
— | ||
|
52
|
52
09481-10501-000 FUSE(10A)4DR; 2007-06-01~ |
09481-10501-000 |
from US $1.06 |
||
|
53
|
53
09481-15501-000 FUSE(15A)4DR; 2007-06-01~ |
09481-15501-000 |
from US $3.25 |
||
|
54
|
54
09481-20501-000 FUSE(20A)4DR; 2007-06-01~ |
09481-20501-000 |
from US $2.28 |
||
|
55
|
55
09481-30501-000 FUSE(30A)4DR; 2007-06-01~ |
09481-30501-000 |
from US $1.08 |
||
|
56
|
56
09481-30401-000 FUSE(30A)4DR; 2007-06-01~ |
09481-30401-000 |
from US $5.96 |
||
|
57
|
57
38860-76F01-000 RELAY ASSYRelay, starting motor ヒータ; 4DR; 2007-06-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
58
|
58
38860-76F01-000 RELAY ASSYRelay, starting motor ホーン; 4DR; 2007-06-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
59
|
59
38860-76F01-000 RELAY ASSYRelay, starting motor リヤデフォッガ; 4DR; 2007-06-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
60
|
60
01550-0816A-000 BOLTBolt, rear 4DR; 2007-06-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
61
|
61
08316-1008A-000 NUTNut, idle gear shaft 4DR; 2007-06-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
62
|
62
36651-79J10-000 BRACKET,ENG HARN4DR; 2007-06-01~ |
36651-79J10-000 |
US $7.40 |
||
|
63
|
63
02162-0612A-000 SCREWBolt, bracket 4DR; 2007-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
64
|
64
36651-79J50-000 BRACKET,ENG HARN4DR; 2007-06-01~ |
36651-79J50-000 |
US $5.41 |
||
|
65
|
65
36651-79J70-000 BRACKET,ENG HARN AT4DR; 2007-06-01~ |
36651-79J70-000 |
US $3.64 |
||
|
66
|
66
01550-0612A-000 BOLT4DR; 2007-06-01~ |
01550-0612A-000 |
from US $0.76 |
||
|
67
|
67
36655-54G50-000 BRACKET,ENG HARN4DR; 2007-06-01~ |
36655-54G50-000 |
US $2.13 |
||
|
68
|
68
08316-1006A-000 NUT4DR; 2007-06-01~ |
08316-1006A-000 |
from US $0.80 |
||
|
69
|
69
38860-76F01-000 RELAY ASSYRelay, starting motor メイン リレー; 4DR; 2007-06-01~ |
38860-76F01-000 |
from US $24.91 |
||
|
70
|
70
36691-79J00-000 WIRE,A/B4DR; 2007-06-01~ |
36691-79J00-000 |
from US $41.04 |
||
|
71
|
71
09407-18402-000 CLAMP(L:165)Clamp (l:165) 4DR; 2007-06-01~ |
09407-18402-000 |
from US $1.98 |
||
|
72
|
72
77151-82000-000
FILM
4DR; 2007-06-01~ |
77151-82000-000 |
— | ||
| replacements | |||||
|
72
|
72
84761-50X50-000 SEAL,140X190Seal, rr defogger wire hole 4DR; 2007-06-01~ |
84761-50X50-000 |
US $6.72 |
||
|
72
|
72
77151-82010-000 Seal4DR; 2007-06-01~ |
77151-82010-000 |
US $1.44 |
||
|
73
|
73
32810-58J00-000 SENSOR ASSY,CURRENT4DR; 2007-06-01~ |
32810-58J00-000 |
US $55.94 |
||
