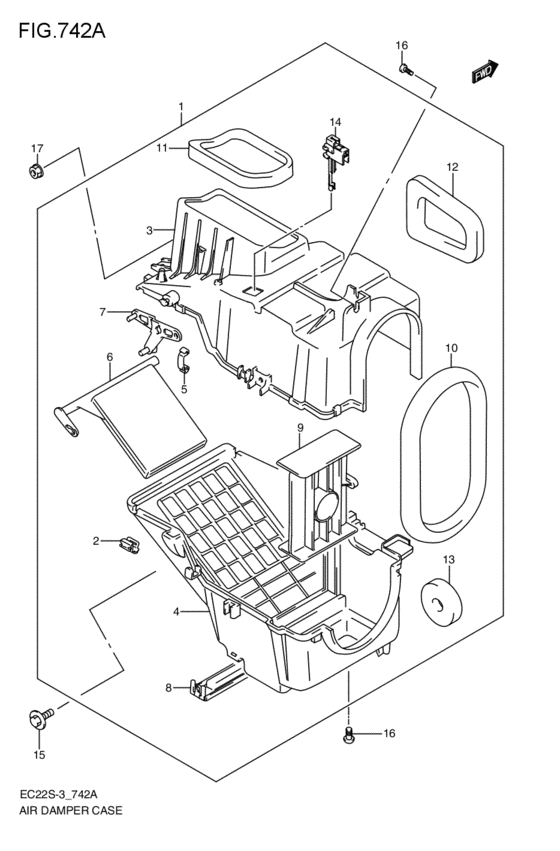

エアダンパケース (C; 2004-12-01~2005-09-01) Diagram Suzuki TWIN
- Year
- 2004 - 2011
- Sales region
- Japan
- transmission
- MT
- grade
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74200-76G20-000
BOX ASSY,AIR INLET
C; 2004-12-01~2005-09-01 |
74200-76G20-000 |
— | ||
|
2
|
2
74151-50F00-000 CABLEC; 2004-12-01~2005-09-01 |
74151-50F00-000 |
US $3.09 |
||
|
3
|
3
95421-76G01-000 CASE,EVAP,UPPERC; 2004-12-01~2005-09-01 |
95421-76G01-000 |
US $59.62 |
||
|
4
|
4
95422-81A00-000 CASE,EVAP,LOWERC; 2004-12-01~2005-09-01 |
95422-81A00-000 |
US $15.36 |
||
|
5
|
5
74316-85500-000 CLAMPClamp, case C; 2004-12-01~2005-09-01 |
74316-85500-000 |
US $1.82 |
||
|
6
|
6
74270-81A00-000
Door set, air inlet
C; 2004-12-01~2005-09-01 |
74270-81A00-000 |
— | ||
| replacement | |||||
|
6
|
6
74270-81A01-000 DOOR SET,AIR INLETC; 2004-12-01~2005-09-01 |
74270-81A01-000 |
US $26.13 |
||
|
7
|
7
74281-81A00-000 LINK,DRC; 2004-12-01~2005-09-01 |
74281-81A00-000 |
US $5.89 |
||
|
8
|
8
95423-81A01-000 COVER,FILTERC; 2004-12-01~2005-09-01 |
95423-81A01-000 |
from US $4.04 |
||
|
9
|
9
95428-81A00-000 BOARD,AIR RESISTORC; 2004-12-01~2005-09-01 |
95428-81A00-000 |
US $13.80 |
||
|
10
|
10
95461-70B01-000 PACKING,HEATERPacking, unit outlet C; 2004-12-01~2005-09-01 |
95461-70B01-000 |
US $4.80 |
||
|
11
|
11
95461-76G00-000 PACKING,COOLING UNITC; 2004-12-01~2005-09-01 |
95461-76G00-000 |
US $6.59 |
||
|
12
|
12
95465-78F10-000 PACKING,DASHC; 2004-12-01~2005-09-01 |
95465-78F10-000 |
US $9.60 |
||
|
13
|
13
95466-81A00-000 PACKING,DRAINC; 2004-12-01~2005-09-01 |
95466-81A00-000 |
US $2.56 |
||
|
14
|
14
95542-84G00-000
CLAMP,THERMISTOR
C; 2004-12-01~2005-09-01 |
95542-84G00-000 |
— | ||
|
15
|
15
09113-06006-000 BOLT(6X20)C; 2004-12-01~2005-09-01 |
09113-06006-000 |
US $12.50 |
||
| replacement | |||||
|
15
|
15
09113-06014-000 BOLT(6X20)C; 2004-12-01~2005-09-01 |
09113-06014-000 |
US $14.40 |
||
|
16
|
16
03541-05163-000
Screw
C; 2004-12-01~2005-09-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
16
|
16
03541-0516A-000 SCREWC; 2004-12-01~2005-09-01 |
03541-0516A-000 |
from US $0.68 |
||
|
17
|
17
09159-06081-000 NUTC; 2004-12-01~2005-09-01 |
09159-06081-000 |
US $12.50 |
||
