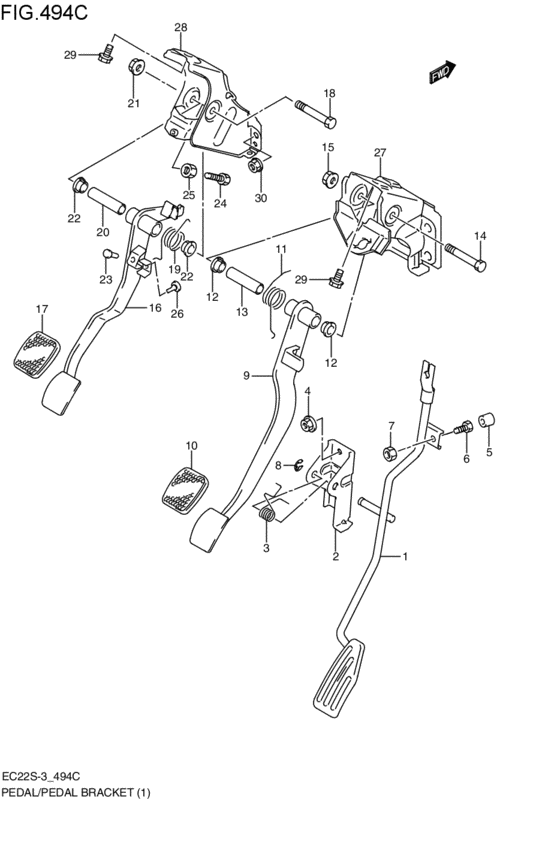

pedal / pedal bracket (MT; 2004-12-01~2005-09-01) Diagram Suzuki TWIN
- Year
- 2004 - 2011
- Sales region
- Japan
- transmission
- MT
- grade
- C
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49410-80H10-000
ペダルアッシ,アクセレレータ
MT; 2004-12-01~2005-09-01 |
49410-80H10-000 |
— | ||
|
2
|
2
49510-80G50-000 BRACKET,ACCELERATOR PEDALMT; 2004-12-01~2005-09-01 |
49510-80G50-000 |
US $15.90 |
||
|
3
|
3
09448-15016-000 SPRINGMT; 2004-12-01~2005-09-01 |
09448-15016-000 |
US $30.20 |
||
|
4
|
4
09159-06076-000 NUTMT; 2004-12-01~2005-09-01 |
09159-06076-000 |
from US $1.28 |
||
|
5
|
5
09251-05007-000 CAP(OD:13.6)MT; 2004-12-01~2005-09-01 |
09251-05007-000 |
US $26.50 |
||
|
6
|
6
09100-06150-000 BOLT(6X31)Bolt, adjuster MT; 2004-12-01~2005-09-01 |
09100-06150-000 |
from US $3.15 |
||
|
7
|
7
08310-00063-000
Nut
MT; 2004-12-01~2005-09-01 |
08310-00063-000 |
— | ||
| replacements | |||||
|
7
|
7
08310-0006B-000 NUTNut gear shift link rod MT; 2004-12-01~2005-09-01 |
08310-0006B-000 |
from US $0.76 |
||
|
7
|
7
08310-0006A-000 NUTMT; 2004-12-01~2005-09-01 |
08310-0006A-000 |
from US $0.76 |
||
|
8
|
8
08332-11073-000
E ring
MT; 2004-12-01~2005-09-01 |
08332-11073-000 |
— | ||
| replacement | |||||
|
8
|
8
08332-1107A-000 E RINGMT; 2004-12-01~2005-09-01 |
08332-1107A-000 |
from US $0.96 |
||
|
9
|
9
49610-80H00-000
ペダルアッシ,ブレーキ
MT; 2004-12-01~2005-09-01 |
49610-80H00-000 |
— | ||
|
10
|
10
49751-58J00-000 PAD,PEDALMT; 2004-12-01~2005-09-01 |
49751-58J00-000 |
from US $2.59 |
||
| replacement | |||||
|
10
|
10
49751-58J20-000 PAD,PEDALMT; 2004-12-01~2005-09-01 |
49751-58J20-000 |
from US $3.15 |
||
|
11
|
11
49691-84G00-000
スプリング,ブレーキペダル
MT; 2004-12-01~2005-09-01 |
49691-84G00-000 |
— | ||
|
12
|
12
09307-13005-000 BUSHBushing MT; 2004-12-01~2005-09-01 |
09307-13005-000 |
from US $2.72 |
||
|
13
|
13
49871-80F00-000 SPACER,PEDAL SHAFTMT; 2004-12-01~2005-09-01 |
49871-80F00-000 |
US $4.20 |
||
|
14
|
14
09100-10304-000 BOLT(10X65)MT; 2004-12-01~2005-09-01 |
09100-10304-000 |
US $35.30 |
||
|
15
|
15
08316-10103-000
Nut
MT; 2004-12-01~2005-09-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1010B-000 NUTMT; 2004-12-01~2005-09-01 |
08316-1010B-000 |
from US $0.80 |
||
|
16
|
16
49810-80H20-000 PEDAL ASSY,CLUTCHMT; 2004-12-01~2005-09-01 |
49810-80H20-000 |
US $61.09 |
||
|
17
|
17
49751-58J00-000 PAD,PEDALMT; 2004-12-01~2005-09-01 |
49751-58J00-000 |
from US $2.59 |
||
| replacement | |||||
|
17
|
17
49751-58J20-000 PAD,PEDALMT; 2004-12-01~2005-09-01 |
49751-58J20-000 |
from US $3.15 |
||
|
18
|
18
09100-10304-000 BOLT(10X65)MT; 2004-12-01~2005-09-01 |
09100-10304-000 |
US $35.30 |
||
|
19
|
19
49891-50E00-000 SPRING,CLUTCH PEDALMT; 2004-12-01~2005-09-01 |
49891-50E00-000 |
US $5.30 |
||
|
20
|
20
49871-80F00-000 SPACER,PEDAL SHAFTMT; 2004-12-01~2005-09-01 |
49871-80F00-000 |
US $4.20 |
||
|
21
|
21
08316-10103-000
Nut
MT; 2004-12-01~2005-09-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
21
|
21
08316-1010B-000 NUTMT; 2004-12-01~2005-09-01 |
08316-1010B-000 |
from US $0.80 |
||
|
22
|
22
09307-13005-000 BUSHBushing MT; 2004-12-01~2005-09-01 |
09307-13005-000 |
from US $2.72 |
||
|
23
|
23
09321-06033-000 CUSHIONMT; 2004-12-01~2005-09-01 |
09321-06033-000 |
from US $1.68 |
||
|
24
|
24
09100-06150-000 BOLT(6X31)Bolt, adjuster MT; 2004-12-01~2005-09-01 |
09100-06150-000 |
from US $3.15 |
||
|
25
|
25
08310-00063-000
Nut
MT; 2004-12-01~2005-09-01 |
08310-00063-000 |
— | ||
| replacements | |||||
|
25
|
25
08310-0006B-000 NUTNut gear shift link rod MT; 2004-12-01~2005-09-01 |
08310-0006B-000 |
from US $0.76 |
||
|
25
|
25
08310-0006A-000 NUTMT; 2004-12-01~2005-09-01 |
08310-0006A-000 |
from US $0.76 |
||
|
26
|
26
09321-06026-000 CUSHIONMT; 2004-12-01~2005-09-01 |
09321-06026-000 |
from US $1.60 |
||
|
27
|
27
49710-84G00-000 BRACKET,BRAKE PEDALMT; 2004-12-01~2005-09-01 |
49710-84G00-000 |
US $55.57 |
||
|
28
|
28
49720-84G20-000 BRACKET,CLUTCH PEDALMT; 2004-12-01~2005-09-01 |
49720-84G20-000 |
US $71.76 |
||
|
29
|
29
01551-08163-000
Bolt
MT; 2004-12-01~2005-09-01 |
01551-08163-000 |
— | ||
| replacements | |||||
|
29
|
29
01551-0816C-000 BoltMT; 2004-12-01~2005-09-01 |
01551-0816C-000 |
from US $0.96 |
||
|
29
|
29
01551-0816A-000
ボルト
MT; 2004-12-01~2005-09-01 |
01551-0816A-000 |
— | ||
|
30
|
30
09159-08127-000 NUTMT; 2004-12-01~2005-09-01 |
09159-08127-000 |
US $9.90 |
||
