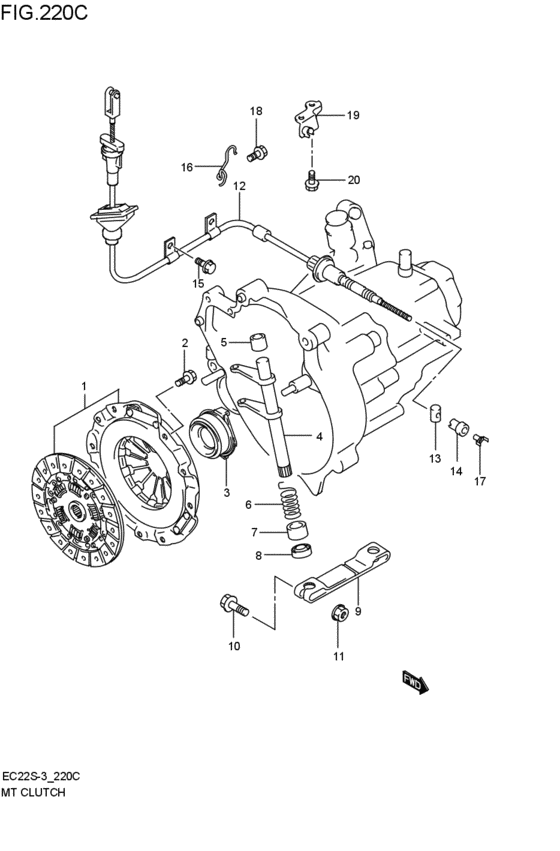

mt - clutch (MT; 2004-12-01~2005-09-01) Diagram Suzuki TWIN
- Year
- 2004 - 2011
- Sales region
- Japan
- transmission
- MT
- grade
- D
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22400-60810-000
Disc set,clutch
MT; 2004-12-01~2005-09-01 |
22400-60810-000 |
— | ||
| replacement | |||||
|
1
|
1
22400-60811-000 DISC SET,CLUTCHMT; 2004-12-01~2005-09-01 |
22400-60811-000 |
US $178.85 |
||
|
2
|
2
09117-06033-000 BOLT(6X12)MT; 2004-12-01~2005-09-01 |
09117-06033-000 |
US $1.06 |
||
|
3
|
3
23265-60D00-000 BEARING,CLUTCH RELEASEMT; 2004-12-01~2005-09-01 |
23265-60D00-000 |
from US $59.25 |
||
|
4
|
4
23260-60D02-000 SHAFT,CLUTCH RELEASEMT; 2004-12-01~2005-09-01 |
23260-60D02-000 |
from US $32.75 |
||
|
5
|
5
09300-12011-000 BUSH(12X16X15)MT; 2004-12-01~2005-09-01 |
09300-12011-000 |
from US $2.79 |
||
|
6
|
6
23269-60D01-000 SPRING,CLUTCH RELEASE RETURNMT; 2004-12-01~2005-09-01 |
23269-60D01-000 |
US $4.12 |
||
|
7
|
7
09300-12004-000 BUSH(12X20X15)MT; 2004-12-01~2005-09-01 |
09300-12004-000 |
from US $27.41 |
||
|
8
|
8
09284-12007-000 SEAL,OIL(12X20X5)MT; 2004-12-01~2005-09-01 |
09284-12007-000 |
from US $4.49 |
||
|
9
|
9
23266-70B20-000
Arm,clutch release
MT; 2004-12-01~2005-09-01 |
23266-70B20-000 |
— | ||
| replacement | |||||
|
9
|
9
23266-70B21-000 ARM,CLUTCH RELEASEMT; 2004-12-01~2005-09-01 |
23266-70B21-000 |
US $18.95 |
||
|
10
|
10
01550-08303-000
Bolt
MT; 2004-12-01~2005-09-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0830B-000 BoltMT; 2004-12-01~2005-09-01 |
01550-0830B-000 |
from US $1.06 |
||
|
10
|
10
01550-0830A-000 BOLTBolt, mount oil seal cover MT; 2004-12-01~2005-09-01 |
01550-0830A-000 |
from US $1.12 |
||
|
11
|
11
08316-1008A-000 NUTNut, idle gear shaft MT; 2004-12-01~2005-09-01 |
08316-1008A-000 |
from US $0.76 |
||
|
12
|
12
23710-75H00-000 CABLE ASSY,CLUTCHMT; 2004-12-01~2005-09-01 |
23710-75H00-000 |
from US $59.65 |
||
|
13
|
13
09209-13018-000 PIN(13X18)MT; 2004-12-01~2005-09-01 |
09209-13018-000 |
from US $1.82 |
||
|
14
|
14
09150-06014-000
Nut
MT; 2004-12-01~2005-09-01 |
09150-06014-000 |
— | ||
| replacement | |||||
|
14
|
14
09150-06010-000 NUTMT; 2004-12-01~2005-09-01 |
09150-06010-000 |
from US $1.44 |
||
|
15
|
15
02162-06123-000
Bolt (6x12)
MT; 2004-12-01~2005-09-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
02162-0612B-000 SCREWBolt MT; 2004-12-01~2005-09-01 |
02162-0612B-000 |
from US $0.80 |
||
|
15
|
15
02162-0612A-000 SCREWBolt, bracket MT; 2004-12-01~2005-09-01 |
02162-0612A-000 |
from US $0.80 |
||
|
16
|
16
23915-70B01-000 CLAMP,CLUTCH CABLEMT; 2004-12-01~2005-09-01 |
23915-70B01-000 |
US $3.72 |
||
|
17
|
17
23922-76G00-000 CAP,CLUTCH CABLE JOINT LOCKMT; 2004-12-01~2005-09-01 |
23922-76G00-000 |
US $1.25 |
||
|
18
|
18
09135-06022-000
Bolt
MT; 2004-12-01~2005-09-01 |
09135-06022-000 |
— | ||
| replacement | |||||
|
18
|
18
09135-06027-000 BOLT(6X12)MT; 2004-12-01~2005-09-01 |
09135-06027-000 |
from US $1.12 |
||
|
19
|
19
23910-76G00-000
ブラケット,クラッチケーブル
MT; 2004-12-01~2005-09-01 |
23910-76G00-000 |
— | ||
|
20
|
20
01550-08203-000
Bolt
MT; 2004-12-01~2005-09-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0820B-000 BoltMT; 2004-12-01~2005-09-01 |
01550-0820B-000 |
from US $0.91 |
||
|
20
|
20
01550-0820A-000 BOLTBolt, funnel bracket MT; 2004-12-01~2005-09-01 |
01550-0820A-000 |
from US $0.96 |
||
