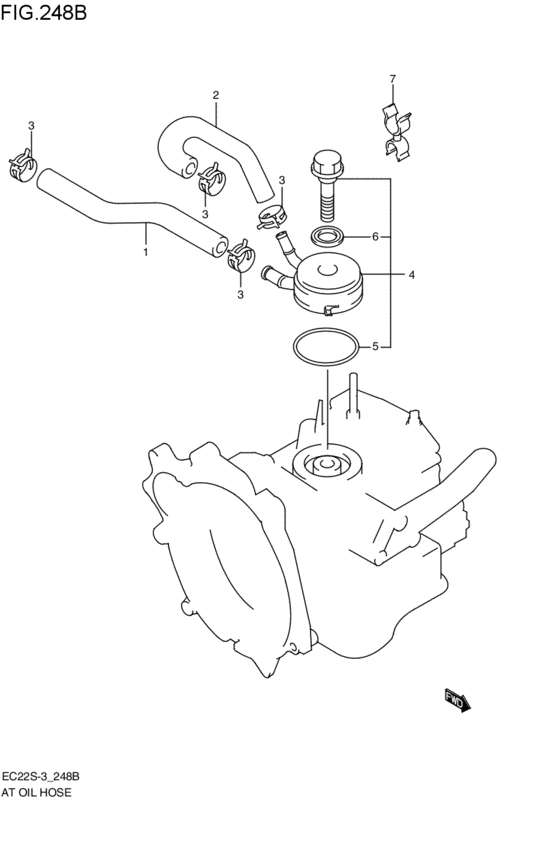

at - oil hose (AT; 2004-12-01~2005-09-01) Diagram Suzuki TWIN
- Year
- 2004 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24891-76G11-000 HOSE,OIL COOLER NO.1AT; 2004-12-01~2005-09-01 |
24891-76G11-000 |
US $18.40 |
||
|
2
|
2
24892-76G31-000 HOSE,OIL COOLER NO.2AT; 2004-12-01~2005-09-01 |
24892-76G31-000 |
US $16.89 |
||
|
3
|
3
09401-18403-000 CLIPClip, heater hose AT; 2004-12-01~2005-09-01 |
09401-18403-000 |
US $1.92 |
||
|
4
|
4
24921-76G30-000
クーラアッシ,AT
AT; 2004-12-01~2005-09-01 |
24921-76G30-000 |
— | ||
| replacement | |||||
|
4
|
4
24921-76G32-000 COOLER ASSY,ATAT; 2004-12-01~2005-09-01 |
24921-76G32-000 |
US $390.08 |
||
|
5
|
5
24924-76G10-000 O-RING,OIL COOLERAT; 2004-12-01~2005-09-01 |
24924-76G10-000 |
US $9.35 |
||
|
6
|
6
24925-76G10-000 WASHER,OIL COOLERAT; 2004-12-01~2005-09-01 |
24925-76G10-000 |
US $8.46 |
||
|
7
|
7
09408-00202-000 CLAMPAT; 2004-12-01~2005-09-01 |
09408-00202-000 |
US $25.80 |
||
