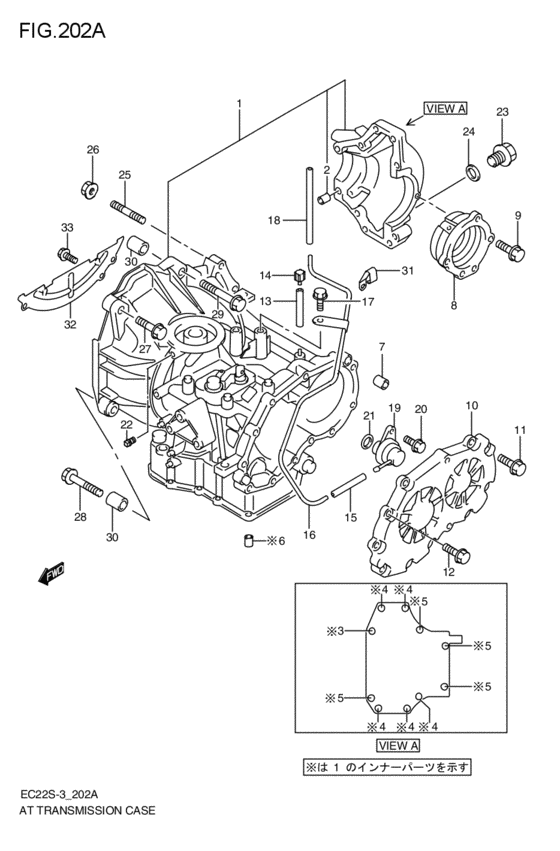

at - transmission case (AT; 2004-12-01~2005-09-01) Diagram Suzuki TWIN
- Year
- 2004 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-76G12-000
CASE ASSY,T/M
AT; 2004-12-01~2005-09-01 |
24700-76G12-000 |
— | ||
|
2
|
2
04211-13149-000 PINAT; 2004-12-01~2005-09-01 |
04211-13149-000 |
from US $1.28 |
||
|
3
|
3
24743-76G11-000
BOLT,T/M BOTTOM CASE N0.1
AT; 2004-12-01~2005-09-01 |
24743-76G11-000 |
— | ||
| replacement | |||||
|
3
|
3
24743-76G12-000
Bolt,t/m Bottom Case No.1
AT; 2004-12-01~2005-09-01 |
24743-76G12-000 |
— | ||
|
4
|
4
09117-08090-000 BOLT(8X40)AT; 2004-12-01~2005-09-01 |
09117-08090-000 |
US $21.70 |
||
|
5
|
5
01550-10503-000
Bolt
AT; 2004-12-01~2005-09-01 |
01550-10503-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-1050B-000 BOLTAT; 2004-12-01~2005-09-01 |
01550-1050B-000 |
US $1.22 |
||
|
6
|
6
09202-06035-000 PINAT; 2004-12-01~2005-09-01 |
09202-06035-000 |
US $37.20 |
||
|
7
|
7
04211-13149-000 PINAT; 2004-12-01~2005-09-01 |
04211-13149-000 |
from US $1.28 |
||
|
8
|
8
24721-76G10-000 HOUSING,SIDE BEARINGAT; 2004-12-01~2005-09-01 |
24721-76G10-000 |
US $131.38 |
||
|
9
|
9
24722-56E00-000
ボルト,サイドベアリングハウジング
AT; 2004-12-01~2005-09-01 |
24722-56E00-000 |
— | ||
| replacements | |||||
|
9
|
9
24722-72J10-000
BOLT,SIDE BRG HSG
AT; 2004-12-01~2005-09-01 |
24722-72J10-000 |
— | ||
|
9
|
9
24722-72J11-000
Bolt,side Brg Hsg
AT; 2004-12-01~2005-09-01 |
24722-72J11-000 |
— | ||
|
10
|
10
24731-76G10-000 COVER,T/M RRAT; 2004-12-01~2005-09-01 |
24731-76G10-000 |
US $172.96 |
||
|
11
|
11
01550-08253-000
Bolt, rear
AT; 2004-12-01~2005-09-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0825B-000 BOLTAT; 2004-12-01~2005-09-01 |
01550-0825B-000 |
from US $0.96 |
||
|
11
|
11
01550-0825A-000 BOLTAT; 2004-12-01~2005-09-01 |
01550-0825A-000 |
from US $1.06 |
||
|
12
|
12
24732-76G10-000
ボルト,トランスミッションリヤカバー
AT; 2004-12-01~2005-09-01 |
24732-76G10-000 |
— | ||
| replacements | |||||
|
12
|
12
24722-72J10-000
BOLT,SIDE BRG HSG
AT; 2004-12-01~2005-09-01 |
24722-72J10-000 |
— | ||
|
12
|
12
24722-72J11-000
Bolt,side Brg Hsg
AT; 2004-12-01~2005-09-01 |
24722-72J11-000 |
— | ||
|
13
|
13
09352-50823-600
HOSE(5X8.2X600)
L:600>70; AT; 2004-12-01~2005-09-01 |
09352-50823-600 |
— | ||
| replacements | |||||
|
13
|
13
44420-44AR0-000 HOSE SET,FUELL:600>70; AT; 2004-12-01~2005-09-01 |
44420-44AR0-000 |
US $11.95 |
||
|
13
|
13
09352-50005-600 Hose(5X8.2X600)L:600>70; AT; 2004-12-01~2005-09-01 |
09352-50005-600 |
US $4.10 |
||
|
14
|
14
27991-78G10-000 PLUG,BREATHER HOSEAT; 2004-12-01~2005-09-01 |
27991-78G10-000 |
US $1.77 |
||
|
15
|
15
09355-35754-601
HOSE(3.5X7.5X601)
L:601>80; AT; 2004-12-01~2005-09-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
15
|
15
09355-35006-601 Hose(3.5X7.5X601)L:601>80; AT; 2004-12-01~2005-09-01 |
09355-35006-601 |
from US $5.78 |
||
|
16
|
16
24898-76G10-000
パイプ,バキューム
AT; 2004-12-01~2005-09-01 |
24898-76G10-000 |
— | ||
| replacement | |||||
|
16
|
16
24898-76G11-000 PIPE,VACUUMAT; 2004-12-01~2005-09-01 |
24898-76G11-000 |
US $26.13 |
||
|
17
|
17
01550-0612A-000 BOLTAT; 2004-12-01~2005-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
18
|
18
24899-76G50-000 HOSE,VACUUMAT; 2004-12-01~2005-09-01 |
24899-76G50-000 |
US $5.63 |
||
|
19
|
19
24781-71B80-000 DIAPHRAGM,VACUUMAT; 2004-12-01~2005-09-01 |
24781-71B80-000 |
US $78.75 |
||
|
20
|
20
01550-0612A-000 BOLTAT; 2004-12-01~2005-09-01 |
01550-0612A-000 |
from US $0.76 |
||
|
21
|
21
26584-84G10-000 O-RING,VACUUM DIAPHRAGMAT; 2004-12-01~2005-09-01 |
26584-84G10-000 |
US $3.72 |
||
|
22
|
22
24822-58E00-000
PLUG,BOOSTER
AT; 2004-12-01~2005-09-01 |
24822-58E00-000 |
— | ||
| replacement | |||||
|
22
|
22
24822-58E01-000 Plug,boosterAT; 2004-12-01~2005-09-01 |
24822-58E01-000 |
US $5 |
||
|
23
|
23
09247-14044-000 DRAIN PLUG (M14x1.5)AT; 2004-12-01~2005-09-01 |
09247-14044-000 |
from US $1.67 |
||
|
24
|
24
24824-71B71-000 GASKET,18X24X2AT; 2004-12-01~2005-09-01 |
24824-71B71-000 |
US $1.52 |
||
|
25
|
25
01421-10353-000
Stud 10x1.25x55
AT; 2004-12-01~2005-09-01 |
01421-10353-000 |
— | ||
| replacements | |||||
|
25
|
25
01421-1035A-000 BOLT,STUDAT; 2004-12-01~2005-09-01 |
01421-1035A-000 |
from US $4.13 |
||
|
25
|
25
01421-1035B-000 BOLT,STUDAT; 2004-12-01~2005-09-01 |
01421-1035B-000 |
US $17.30 |
||
|
26
|
26
08316-10103-000
Nut
AT; 2004-12-01~2005-09-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
26
|
26
08316-1010B-000 NUTAT; 2004-12-01~2005-09-01 |
08316-1010B-000 |
from US $0.80 |
||
|
27
|
27
01550-10453-000
Bolt
AT; 2004-12-01~2005-09-01 |
01550-10453-000 |
— | ||
| replacement | |||||
|
27
|
27
01550-1045B-000 BoltAT; 2004-12-01~2005-09-01 |
01550-1045B-000 |
from US $1.28 |
||
|
28
|
28
01550-10553-000
Bolt
AT; 2004-12-01~2005-09-01 |
01550-10553-000 |
— | ||
| replacement | |||||
|
28
|
28
01550-1055B-000 BoltAT; 2004-12-01~2005-09-01 |
01550-1055B-000 |
from US $1.44 |
||
|
29
|
29
01550-10603-000
Bolt
AT; 2004-12-01~2005-09-01 |
01550-10603-000 |
— | ||
| replacements | |||||
|
29
|
29
01550-1060B-000 BoltAT; 2004-12-01~2005-09-01 |
01550-1060B-000 |
US $1.60 |
||
|
29
|
29
01550-1060A-000 BoltAT; 2004-12-01~2005-09-01 |
01550-1060A-000 |
from US $1.60 |
||
|
30
|
30
04211-13149-000 PINAT; 2004-12-01~2005-09-01 |
04211-13149-000 |
from US $1.28 |
||
|
31
|
31
26585-71B70-000 CLIP,HARN,NO.3AT; 2004-12-01~2005-09-01 |
26585-71B70-000 |
US $3.02 |
||
|
32
|
32
29531-58J00-000
プレート,クラッチハウジング,ロア
AT; 2004-12-01~2005-09-01 |
29531-58J00-000 |
— | ||
| replacement | |||||
|
32
|
32
24793-65KF0-000
プレート,クラッチハウジングロア
AT; 2004-12-01~2005-09-01 |
24793-65KF0-000 |
— | ||
|
33
|
33
02162-06103-000
Bolt
AT; 2004-12-01~2005-09-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
33
|
33
02162-0610A-000 SCREWAT; 2004-12-01~2005-09-01 |
02162-0610A-000 |
from US $0.64 |
||
