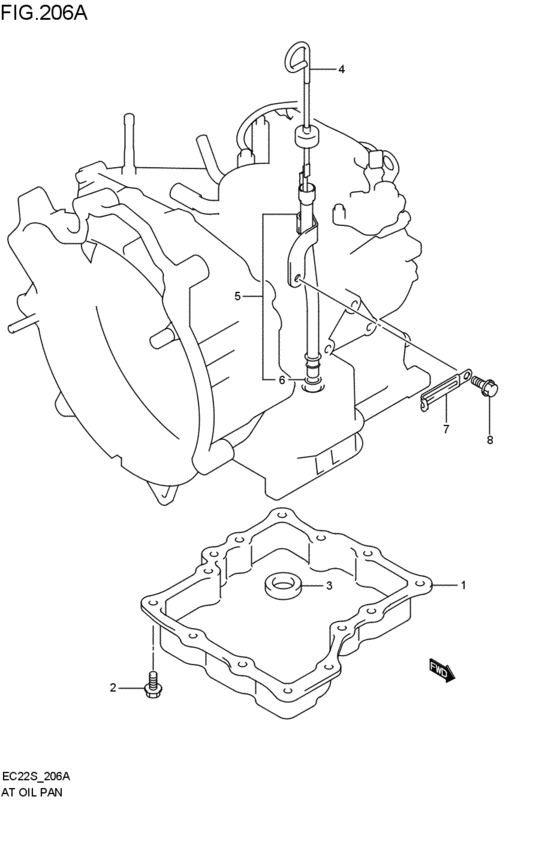

at - oil pan (AT; 2003-01-01~2003-12-01) Diagram Suzuki TWIN
- Year
- 2003 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24761-76G10-000 PAN,T/M OILAT; 2003-01-01~2003-12-01 |
24761-76G10-000 |
US $87.58 |
||
|
2
|
2
01550-06123-000
Bolt
AT; 2003-01-01~2003-12-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0612B-000 BOLTBolt, clamp AT; 2003-01-01~2003-12-01 |
01550-0612B-000 |
from US $0.76 |
||
|
2
|
2
01550-0612A-000 BOLTAT; 2003-01-01~2003-12-01 |
01550-0612A-000 |
from US $0.76 |
||
|
3
|
3
24861-78H10-000 MAGNET,OIL CLEANERAT; 2003-01-01~2003-12-01 |
24861-78H10-000 |
US $6.40 |
||
|
4
|
4
24830-76G11-000
ゲージ,トランスミッションオイルレベル
AT; 2003-01-01~2003-12-01 |
24830-76G11-000 |
— | ||
| replacement | |||||
|
4
|
4
24830-72J10-000 GAUGE,T/M OIL LEVELAT; 2003-01-01~2003-12-01 |
24830-72J10-000 |
US $23.55 |
||
|
5
|
5
24770-76G10-000
チューブアッシ,トランスミッションオイルフィラ
AT; 2003-01-01~2003-12-01 |
24770-76G10-000 |
— | ||
| replacements | |||||
|
5
|
5
24770-72J10-000 TUBE ASSY,T/M OIL FILLERAT; 2003-01-01~2003-12-01 |
24770-72J10-000 |
US $30.36 |
||
|
5
|
5
24830-72J10-000 GAUGE,T/M OIL LEVELAT; 2003-01-01~2003-12-01 |
24830-72J10-000 |
US $23.55 |
||
|
6
|
6
09280-09008-000 O RING(D:2.1,ID:8.8)O ring (d:2.1,id:8.8) AT; 2003-01-01~2003-12-01 |
09280-09008-000 |
from US $1.49 |
||
|
7
|
7
26585-71B70-000 CLIP,HARN,NO.3AT; 2003-01-01~2003-12-01 |
26585-71B70-000 |
US $3.02 |
||
|
8
|
8
01550-06123-000
Bolt
AT; 2003-01-01~2003-12-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0612B-000 BOLTBolt, clamp AT; 2003-01-01~2003-12-01 |
01550-0612B-000 |
from US $0.76 |
||
|
8
|
8
01550-0612A-000 BOLTAT; 2003-01-01~2003-12-01 |
01550-0612A-000 |
from US $0.76 |
||
