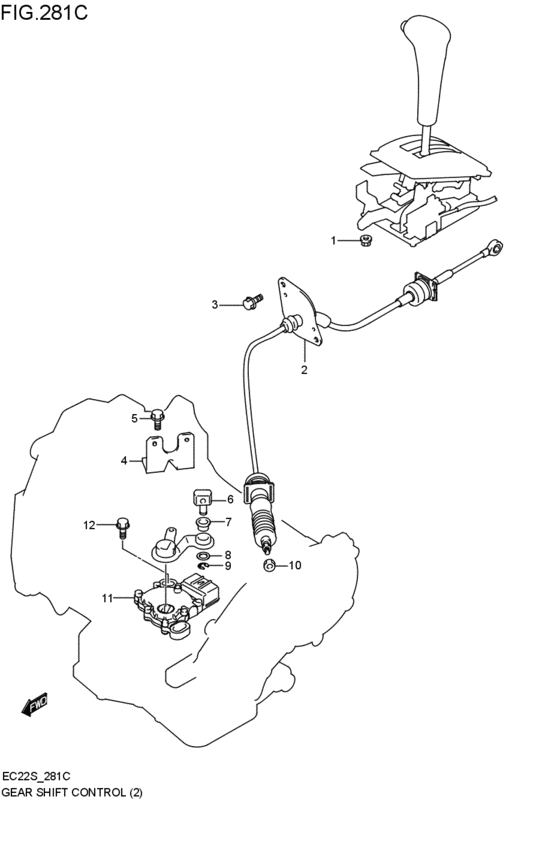

gearlever control (AT; 2003-01-01~2003-12-01) Diagram Suzuki TWIN
- Year
- 2003 - 2011
- Sales region
- Japan
- transmission
- AT
- grade
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
08316-10083-000
Nut
AT; 2003-01-01~2003-12-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
1
|
1
08316-1008B-000 NUTAT; 2003-01-01~2003-12-01 |
08316-1008B-000 |
from US $0.76 |
||
|
2
|
2
28210-76G11-000 CABLE ASSY,SELECTAT; 2003-01-01~2003-12-01 |
28210-76G11-000 |
US $129.54 |
||
|
3
|
3
02162-06203-000
Bolt
AT; 2003-01-01~2003-12-01 |
02162-06203-000 |
— | ||
| replacement | |||||
|
3
|
3
02162-0620C-000 SCREWAT; 2003-01-01~2003-12-01 |
02162-0620C-000 |
from US $0.80 |
||
|
4
|
4
28221-61D11-000 BRACKET,SELECT CABLEAT; 2003-01-01~2003-12-01 |
28221-61D11-000 |
US $6.59 |
||
|
5
|
5
28223-61D00-000 BOLTBolt, selector cable bracket AT; 2003-01-01~2003-12-01 |
28223-61D00-000 |
US $3.97 |
||
|
6
|
6
28291-78233-000 JOINT,CABLEAT; 2003-01-01~2003-12-01 |
28291-78233-000 |
US $12.32 |
||
|
7
|
7
09305-08012-000 BUSHAT; 2003-01-01~2003-12-01 |
09305-08012-000 |
US $1.28 |
||
|
8
|
8
08322-01083-000
WASHER
AT; 2003-01-01~2003-12-01 |
08322-01083-000 |
— | ||
| replacements | |||||
|
8
|
8
08322-0108B-000 WASHERAT; 2003-01-01~2003-12-01 |
08322-0108B-000 |
from US $0.80 |
||
|
8
|
8
08322-0108A-000 WASHERAT; 2003-01-01~2003-12-01 |
08322-0108A-000 |
from US $0.80 |
||
|
9
|
9
08332-11063-000
E ring
AT; 2003-01-01~2003-12-01 |
08332-11063-000 |
— | ||
| replacements | |||||
|
9
|
9
08332-1106B-000 E RINGCirclip AT; 2003-01-01~2003-12-01 |
08332-1106B-000 |
from US $0.90 |
||
|
9
|
9
08332-1106A-000 E RINGE ring, pinion AT; 2003-01-01~2003-12-01 |
08332-1106A-000 |
from US $0.77 |
||
|
10
|
10
08310-00063-000
Nut
AT; 2003-01-01~2003-12-01 |
08310-00063-000 |
— | ||
| replacements | |||||
|
10
|
10
08310-0006B-000 NUTNut gear shift link rod AT; 2003-01-01~2003-12-01 |
08310-0006B-000 |
from US $0.76 |
||
|
10
|
10
08310-0006A-000 NUTAT; 2003-01-01~2003-12-01 |
08310-0006A-000 |
from US $0.76 |
||
|
11
|
11
37720-76G31-000 SWITCH ASSY,SHIFTAT; 2003-01-01~2003-12-01 |
37720-76G31-000 |
US $162.64 |
||
|
12
|
12
25948-76G10-000
Bolt, shift switch
AT; 2003-01-01~2003-12-01 |
25948-76G10-000 |
— | ||
| replacement | |||||
|
12
|
12
25948-76G11-000 BOLT,SHIFT SWITCHAT; 2003-01-01~2003-12-01 |
25948-76G11-000 |
US $3.97 |
||
