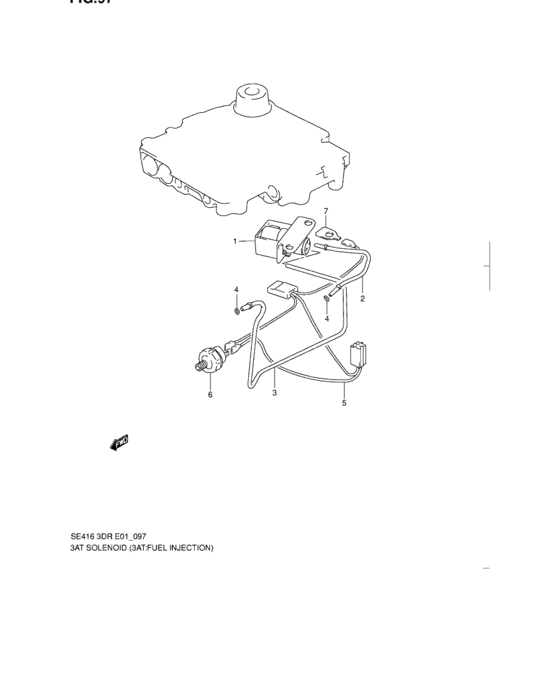

3at solenoid (3AT:W/FUEL INJECTION) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26964-61A00-000 SOLENOID ASSY,VALVE BODY |
26964-61A00-000 |
US $164.80 |
||
|
2
|
2
26574-61A00-000
TUBE,VALVE BODY TO SOL VALVE
|
26574-61A00-000 |
— | ||
|
3
|
3
26573-61A00-000
TUBE,SOL VALVE TO PUMP BODY
|
26573-61A00-000 |
— | ||
|
4
|
4
26575-61A00-000 O-RING,TUBE |
26575-61A00-000 |
US $2.08 |
||
|
5
|
5
26965-61A00-000
HARNESS,SOLENOID WIRING
|
26965-61A00-000 |
— | ||
|
6
|
6
26572-61A00-000 SWITCH ASSY,OIL PRESSURE |
26572-61A00-000 |
US $34.59 |
||
|
7
|
7
26576-61A00-000
ターミナル,アース
|
26576-61A00-000 |
— |
