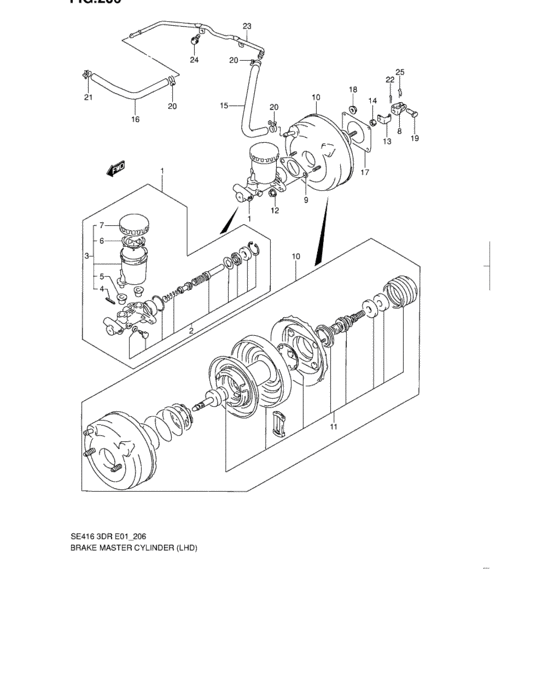

Bk master cylinder (LHD) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-60A30-000
Cylinder assy,brake master
TYPE 1,N/WARNING SWITCH,<-51100-60A50 |
51100-60A30-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-60A31-000 CYLINDER ASSY,BRAKE MASTERTYPE 1,N/WARNING SWITCH,<-51100-60A50 |
51100-60A31-000 |
US $301.76 |
||
|
1
|
1
51100-56B10-000
Cylinder assy,brake master
Germany:PRODUCT OF CANADA |
51100-56B10-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-56B11-000 CYLINDER ASSY,BRAKE MASTERGermany:PRODUCT OF CANADA |
51100-56B11-000 |
from US $305.73 |
||
|
2
|
2
51100-60810-000
Piston set, brake master
TYPE 1 |
51100-60810-000 |
— | ||
| replacement | |||||
|
2
|
2
51100-60811-000 PISTON SET,BRAKE MASTERTYPE 1 |
51100-60811-000 |
US $91.26 |
||
|
2
|
2
51100-70841-000
Piston set,brake master
Germany:PRODUCT OF CANADA |
51100-70841-000 |
— | ||
| replacement | |||||
|
2
|
2
51100-70842-000 PISTON SET,BRAKE MASTERGermany:PRODUCT OF CANADA |
51100-70842-000 |
from US $60 |
||
|
3
|
3
51200-60A30-000
RESERVOIR ASSY,MASTER CYLINDER
TYPE 1 |
51200-60A30-000 |
— | ||
|
3
|
3
51200-60A60-000
リザーバアッシ,マスタシリンダ
Germany:PRODUCT OF CANADA |
51200-60A60-000 |
— | ||
| replacement | |||||
|
3
|
3
51200-60A61-000 RESERVOIR ASSY,MASTER CYLINDERGermany:PRODUCT OF CANADA |
51200-60A61-000 |
US $136.90 |
||
|
4
|
4
09205-05003-000 PIN,SPRING(5X45)TYPE 1, <-51194-60A20 |
09205-05003-000 |
US $1.76 |
||
|
4
|
4
09205-05016-000 PIN,SPRING(5X32)Germany:PRODUCT OF CANADA |
09205-05016-000 |
US $1.12 |
||
|
5
|
5
51197-85520-000 GROMMET,RESERVOIR CONNECTOR |
51197-85520-000 |
US $2.72 |
||
|
6
|
6
51234-60A20-000 STRAINER,MASTER CYLINDER |
51234-60A20-000 |
US $7.68 |
||
|
7
|
7
51220-60A20-000 CAP,RESERVOIR |
51220-60A20-000 |
US $17.60 |
||
|
8
|
8
51182-85520-000 CLEVIS,CYLINDER PUSH RODTYPE 1 |
51182-85520-000 |
US $10.27 |
||
|
8
|
8
51182-77E00-000 CLEVIS,CYLINDER PUSH RODGermany:PRODUCT OF CANADA |
51182-77E00-000 |
US $9.12 |
||
|
9
|
9
51199-82020-000
GASKET,MASTER CYLINDER
~TA01C-100547 |
51199-82020-000 |
— | ||
|
10
|
10
51300-60A30-000 BOOSTER ASSY,BRAKE MASTERTYPE 1 |
51300-60A30-000 |
US $404.80 |
||
|
10
|
10
51300-60A60-000
BOOSTER ASSY,BRAKE MASTER
Germany:PRODUCT OF CANADA |
51300-60A60-000 |
— | ||
|
11
|
11
51300-60810-000
REPAIR KIT,BRAKE MASTER
,~TA01V-101440,~JSAETA01C00111465,~JSAETA01V00111023 |
51300-60810-000 |
— | ||
|
12
|
12
09159-08075-000 NUT |
09159-08075-000 |
US $0.91 |
||
|
13
|
13
51348-60A20-000
ブラケット,シリンダプッシュロッド
TYPE 1 |
51348-60A20-000 |
— | ||
|
14
|
14
09140-10019-000 NUT |
09140-10019-000 |
US $9.20 |
||
|
15
|
15
51020-60A42-000 HOSE,BRAKE VACUUMTYPE 1 |
51020-60A42-000 |
US $49.68 |
||
|
15
|
15
51020-56B40-000
HOSE,BRAKE VACUUM
Germany:PRODUCT OF CANADA |
51020-56B40-000 |
— | ||
|
16
|
16
51831-60A11-000
HOSE,BRAKE VACUUM INTAKE
W/CARBURETOR |
51831-60A11-000 |
— | ||
|
16
|
16
51831-60A01-000 HOSE,BRAKE VACUUM INTAKEW/FUEL INJECTION:2 VALVE |
51831-60A01-000 |
US $12.62 |
||
|
16
|
16
51831-57B10-000
Hose,brake vacuum intake
W/FUEL INJECTION:4 VALVE |
51831-57B10-000 |
— | ||
|
17
|
17
51132-82003-000 PACKING,BRAKE MASTER CYLINDER |
51132-82003-000 |
US $1.60 |
||
|
18
|
18
09159-08069-000
Nut
|
09159-08069-000 |
— | ||
| replacement | |||||
|
18
|
18
09159-08135-000 NUT |
09159-08135-000 |
from US $0.77 |
||
|
19
|
19
09200-10018-000
ピン
|
09200-10018-000 |
— | ||
|
19
|
19
09200-10021-000 PINTA01C-112628~,TA01V-117612~,JSAETA01C00169443~,JSAETA01V00148960~,JSAETA02C01100011~,JSAETA02V01100011~ |
09200-10021-000 |
US $1.28 |
||
|
20
|
20
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
|
21
|
21
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
|
22
|
22
04111-25208-000
25 x 20 cotter
|
04111-25208-000 |
— | ||
| replacement | |||||
|
22
|
22
04111-2520A-000 PIN |
04111-2520A-000 |
from US $0.80 |
||
|
23
|
23
51380-60A11-000 PIPE,BRAKE VACUUM |
51380-60A11-000 |
US $41.95 |
||
|
24
|
24
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
24
|
24
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
25
|
25
09385-10006-000 PIN,SNAPPin TA01C-112628~,TA01V-117612~,JSAETA01C00169443~,JSAETA01V00148960~,JSAETA02C01100011~,JSAETA02V01100011~ |
09385-10006-000 |
from US $1.60 |
||
