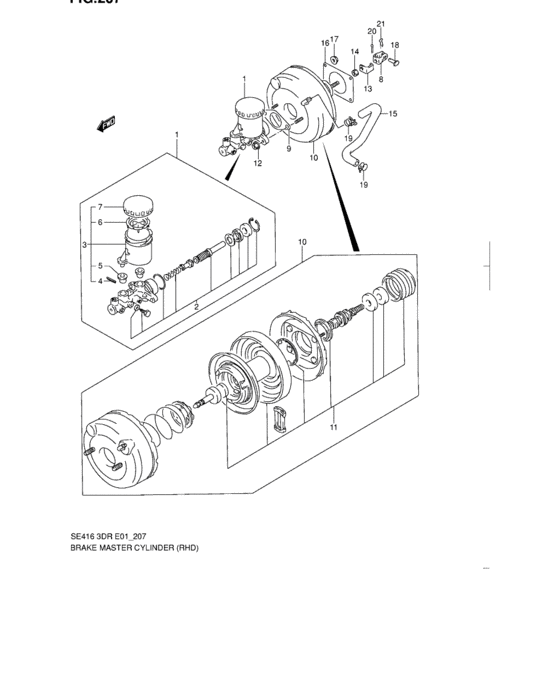

Bk master cylinder (RHD) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-60A20-000
Brake master cylinder sub-assy
TYPE 1,N/WARNING SWITCH,<-51100-60A40 |
51100-60A20-000 |
— | ||
|
1
|
1
51100-56B00-000
Cylinder assy,brake master
TYPE 2: |
51100-56B00-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-56B01-000
CYLINDER ASSY,BRAKE MASTER
TYPE 2: |
51100-56B01-000 |
— | ||
|
1
|
1
51100-56B20-000
Cylinder assy,brake master
TYPE 2,TYPE 3 |
51100-56B20-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-56B21-000
CYLINDER ASSY,BRAKE MASTER
TYPE 2,TYPE 3 |
51100-56B21-000 |
— | ||
|
2
|
2
51100-60810-000
Piston set, brake master
TYPE 1 |
51100-60810-000 |
— | ||
| replacement | |||||
|
2
|
2
51100-60811-000 PISTON SET,BRAKE MASTERTYPE 1 |
51100-60811-000 |
US $91.26 |
||
|
2
|
2
51100-70841-000
Piston set,brake master
TYPE 2,TYPE 3 |
51100-70841-000 |
— | ||
| replacement | |||||
|
2
|
2
51100-70842-000 PISTON SET,BRAKE MASTERTYPE 2,TYPE 3 |
51100-70842-000 |
from US $60 |
||
|
3
|
3
51200-60A20-000 RESERVOIR,MASTER CYLINDERTYPE 1 |
51200-60A20-000 |
US $136.90 |
||
|
3
|
3
51200-56B00-000 RESERVOIR,MASTER CYLINDERTYPE 2,TYPE 3,<-51210-56B00 |
51200-56B00-000 |
US $104.88 |
||
|
4
|
4
09205-05003-000 PIN,SPRING(5X45)TYPE 1,<-51194-60A20 |
09205-05003-000 |
US $1.76 |
||
|
4
|
4
09205-05016-000 PIN,SPRING(5X32)TYPE 2,TYPE 3 |
09205-05016-000 |
US $1.12 |
||
|
5
|
5
51197-85520-000 GROMMET,RESERVOIR CONNECTOR |
51197-85520-000 |
US $2.72 |
||
|
6
|
6
51234-60A20-000 STRAINER,MASTER CYLINDER |
51234-60A20-000 |
US $7.68 |
||
|
7
|
7
51220-60A20-000 CAP,RESERVOIR |
51220-60A20-000 |
US $17.60 |
||
|
8
|
8
51182-85520-000 CLEVIS,CYLINDER PUSH RODTYPE 1 |
51182-85520-000 |
US $10.27 |
||
|
8
|
8
51182-77E00-000 CLEVIS,CYLINDER PUSH RODTYPE 2,TYPE 3 |
51182-77E00-000 |
US $9.12 |
||
|
9
|
9
51199-82020-000
GASKET,MASTER CYLINDER
~TA01C-100547,~TA01V-101440,~JSAETA01C00111465,~JSAETA01V00111023 |
51199-82020-000 |
— | ||
|
10
|
10
51300-60A20-000
Brake booster assy
TYPE 1 |
51300-60A20-000 |
— | ||
|
10
|
10
51300-56B00-000
BOOSTER ASSY,BRAKE MASTER
TYPE 2,TYPE 3 |
51300-56B00-000 |
— | ||
|
11
|
11
51300-60810-000
REPAIR KIT,BRAKE MASTER
TYPE 1 |
51300-60810-000 |
— | ||
|
12
|
12
09159-08075-000 NUT |
09159-08075-000 |
US $0.91 |
||
|
13
|
13
51348-60A20-000
ブラケット,シリンダプッシュロッド
TYPE 1 |
51348-60A20-000 |
— | ||
|
14
|
14
09140-10019-000 NUT<-51349-82020 |
09140-10019-000 |
US $9.20 |
||
|
15
|
15
51020-60A33-000
Hose, brake vacuum intake
TYPE 1 |
51020-60A33-000 |
— | ||
|
15
|
15
51020-60A90-000
HOSE,BRAKE VACUUM
TYPE 2,TYPE 3 |
51020-60A90-000 |
— | ||
|
15
|
15
51020-56B20-000
HOSE,BRAKE VACUUM
TYPE 2,TYPE 3::2 VALVE |
51020-56B20-000 |
— | ||
|
15
|
15
51020-57B20-000
HOSE,BRAKE VACUUM
TYPE 3::4 VALVE |
51020-57B20-000 |
— | ||
|
16
|
16
51132-82003-000 PACKING,BRAKE MASTER CYLINDER |
51132-82003-000 |
US $1.60 |
||
|
17
|
17
09159-08069-000
Nut
|
09159-08069-000 |
— | ||
| replacement | |||||
|
17
|
17
09159-08135-000 NUT |
09159-08135-000 |
from US $0.77 |
||
|
18
|
18
09200-10018-000
ピン
|
09200-10018-000 |
— | ||
|
18
|
18
09200-10021-000 PINTA01C-112628~,TA01V-117612~,JSAETA01C00169443~,JSAETA01V00148960~,JSAETA02C01100011~,JSAETA02V01100011~ |
09200-10021-000 |
US $1.28 |
||
|
19
|
19
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
|
20
|
20
04111-25208-000
25 x 20 cotter
|
04111-25208-000 |
— | ||
| replacement | |||||
|
20
|
20
04111-2520A-000 PIN |
04111-2520A-000 |
from US $0.80 |
||
|
21
|
21
09385-10006-000 PIN,SNAPPin TA01C-112628~,TA01V-117612~,JSAETA01C00169443~,JSAETA01V00148960~,JSAETA02C01100011~,JSAETA02V01100011~ |
09385-10006-000 |
from US $1.60 |
||
