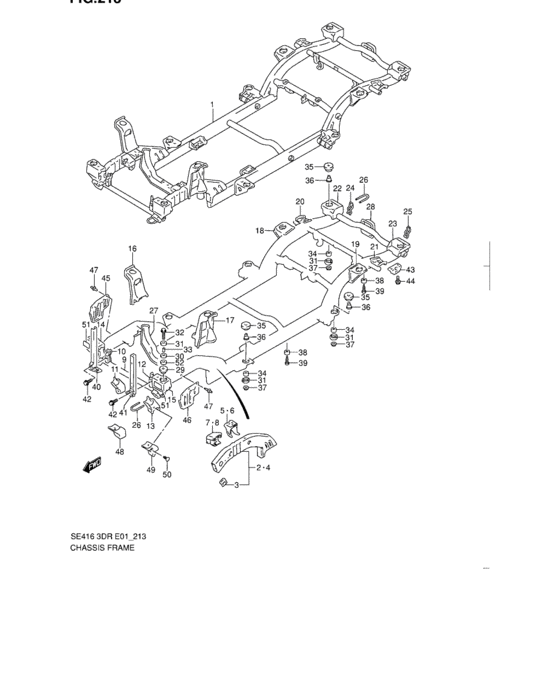

Chassis frame (CHASSIS FRAME) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57000-62A00-000
Chassis frame
TYPE 1,TYPE 2:LHD |
57000-62A00-000 |
— | ||
|
1
|
1
57000-61A50-000
Chassis frame
TYPE 3:LHD |
57000-61A50-000 |
— | ||
|
1
|
1
57000-63A30-000
フレームアッシ
RHD |
57000-63A30-000 |
— | ||
|
2
|
2
57110-60A21-000 MEMBER,SIDE FRAME FR,RLHD |
57110-60A21-000 |
US $397.76 |
||
|
2
|
2
57110-60A31-000
MEMBER,SIDE FRAME FR,R
RHD |
57110-60A31-000 |
— | ||
|
3
|
3
57942-60A00-000 HOOK,SHIPPING FR |
57942-60A00-000 |
US $9.31 |
||
|
4
|
4
57160-60A20-000 MEMBER,SIDE FRAME FR,LLHD |
57160-60A20-000 |
US $344.08 |
||
|
4
|
4
57160-60A30-000
MEMBER,SIDE FRAME FR,L
RHD |
57160-60A30-000 |
— | ||
|
5
|
5
57511-60A00-000
BRACKET,ENG MTG,R
|
57511-60A00-000 |
— | ||
|
6
|
6
57521-60A00-000
BRACKET,ENG MTG,L
|
57521-60A00-000 |
— | ||
|
7
|
7
57620-60A00-000
BRACKET,FR DIFF MTG,R
|
57620-60A00-000 |
— | ||
|
8
|
8
57630-60A00-000
BRACKET,FR DIFF MTG,L
|
57630-60A00-000 |
— | ||
|
9
|
9
57211-60A20-000 CROSSMEMBER,1ST |
57211-60A20-000 |
US $104.88 |
||
|
10
|
10
57551-60A10-000
BRACKET,RDTR STAY,R
TYPE 1,TYPE 2:LHD |
57551-60A10-000 |
— | ||
|
10
|
10
57551-60A00-000 BRACKET,RDTR STAY,RTYPE 3:LHD |
57551-60A00-000 |
US $14.46 |
||
|
11
|
11
57710-60A10-000 HANGER,FR SPNSN ARM,RLHD,<-57710-60A00 |
57710-60A10-000 |
US $52.26 |
||
|
12
|
12
57561-60A00-000 BRACKET,RDTR STAY,L |
57561-60A00-000 |
US $17.37 |
||
|
13
|
13
57720-60A00-000 HANGER,FR SPNSN ARM,LLHD |
57720-60A00-000 |
US $62.93 |
||
|
14
|
14
57310-60A01-000 BRACKET,1ST MOUNTING,R |
57310-60A01-000 |
US $100.46 |
||
|
15
|
15
57320-60A01-000 BRACKET,1ST MOUNTING,L |
57320-60A01-000 |
US $100.46 |
||
|
16
|
16
57730-56B10-000 BRACKET,FR STRUT,R |
57730-56B10-000 |
US $268.64 |
||
|
17
|
17
57740-56B00-000 BRACKET,FR STRUT,L |
57740-56B00-000 |
US $323.84 |
||
|
18
|
18
57810-77E00-000 BRACKET,RR COIL SPRING,R |
57810-77E00-000 |
US $69.18 |
||
|
19
|
19
57820-77E00-000
BRACKET,RR COIL SPRING,L
|
57820-77E00-000 |
— | ||
|
20
|
20
57831-56B00-000
BRACKET,RR SHOCK ABSORBER,R
|
57831-56B00-000 |
— | ||
|
21
|
21
57841-56B00-000
BRACKET,RR SHOCK ABSORBER,L
|
57841-56B00-000 |
— | ||
|
22
|
22
57370-60A00-000
BRACKET,4TH MOUNTING,R
|
57370-60A00-000 |
— | ||
|
23
|
23
57380-60A00-000 BRACKET,4TH MOUNTING,L |
57380-60A00-000 |
US $61.60 |
||
|
24
|
24
57481-60A00-000 BRACKET,RR BUMPER SIDE,R |
57481-60A00-000 |
US $36.80 |
||
|
25
|
25
57482-60A00-000 BRACKET,RR BUMPER SIDE,L |
57482-60A00-000 |
US $28 |
||
|
26
|
26
57941-60A00-000
HOOK,TOWING
|
57941-60A00-000 |
— | ||
|
27
|
27
57220-60A01-000
CROSSMEMBER,2ND
|
57220-60A01-000 |
— | ||
|
28
|
28
57260-60A10-000
クロスメンバ,テール
|
57260-60A10-000 |
— | ||
| replacement | |||||
|
28
|
28
57260-60A11-000 CROSSMEMBER,TAIL |
57260-60A11-000 |
US $233.60 |
||
|
29
|
29
71514-60A00-000 CUSHION,BODY FR MTG NO.1 |
71514-60A00-000 |
US $16.67 |
||
|
30
|
30
71515-60A00-000 CUSHION,BODY FR MTG NO.2 |
71515-60A00-000 |
US $8.83 |
||
|
31
|
31
71632-83010-000
ボトム,ボディマウンチング
|
71632-83010-000 |
— | ||
| replacement | |||||
|
31
|
31
71632-83011-000 BOTTOM,BODY MOUNTING |
71632-83011-000 |
US $2.24 |
||
|
32
|
32
01570-10853-000
Bolt
|
01570-10853-000 |
— | ||
| replacement | |||||
|
32
|
32
01570-1085C-000 Bolt |
01570-1085C-000 |
US $1.68 |
||
|
33
|
33
71516-60A00-000
カラー,ボディフロントマウンチング
|
71516-60A00-000 |
— | ||
| replacement | |||||
|
33
|
33
71516-60A01-000
COLLAR,BODY FR MOUNTING
|
71516-60A01-000 |
— | ||
|
33
|
33
71516-56B00-000
カラー,ボディフロントマウンチング
TA01C-110759~,TA01V-111933~,JSAETA01C00164032~,JSAETA01V00143232~ |
71516-56B00-000 |
— | ||
| replacement | |||||
|
33
|
33
71516-56B01-000 COLLAR,BODY FR MOUNTINGTA01C-110759~,TA01V-111933~,JSAETA01C00164032~,JSAETA01V00143232~ |
71516-56B01-000 |
US $14.08 |
||
|
34
|
34
71512-60A10-000 CUSHION,BODY MTG NO.2 |
71512-60A10-000 |
US $13.60 |
||
|
35
|
35
71511-60A00-000 CUSHION,BODY MTG NO.1 |
71511-60A00-000 |
from US $17.42 |
||
|
36
|
36
71513-60A00-000 COLLAR,BODY MOUNTING |
71513-60A00-000 |
US $2.08 |
||
|
37
|
37
09159-10060-000 NUT |
09159-10060-000 |
from US $1.28 |
||
|
38
|
38
71521-56B00-000 PAD,BODY MOUNTING |
71521-56B00-000 |
US $11.52 |
||
|
39
|
39
09409-10302-5PK CLIP(BLACK) |
09409-10302-5PK |
US $1.28 |
||
|
39
|
39
09409-10302-6MK
Clip, luggage floor
Germany:PRODUCT OF CANADA |
09409-10302-6MK |
— | ||
| replacement | |||||
|
39
|
39
09409-10302-55Y CLIP(GRAY)Germany:PRODUCT OF CANADA |
09409-10302-55Y |
US $17.30 |
||
|
40
|
40
71410-60A21-000 STAY,RADIATOR,RTYPE 1,TYPE 2:LHD |
71410-60A21-000 |
US $34.22 |
||
|
40
|
40
71410-60A01-000 STAY,RADIATOR,RTYPE 1,TYPE 2:RHD |
71410-60A01-000 |
US $45.26 |
||
|
41
|
41
71420-60AA0-000
STAY,RADIATOR,L
|
71420-60AA0-000 |
— | ||
|
41
|
41
71420-60A11-000 STAY,RADIATOR,LTA01C-110156~,TA01V-110585~,JSAETA01C00162346~,JSAETA01V00141740~ |
71420-60A11-000 |
US $55.20 |
||
|
42
|
42
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
42
|
42
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
42
|
42
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
|
43
|
43
71451-60A00-000 HOOK,SHIPPING RR |
71451-60A00-000 |
US $10.27 |
||
|
44
|
44
09103-12043-000 BOLT(12X20) |
09103-12043-000 |
US $1.92 |
||
|
45
|
45
72211-60A00-000
Flap,front frame side,r
|
72211-60A00-000 |
— | ||
|
45
|
45
72211-56B01-000 FLAP,FR FRAME SIDE,RTA01C-150742~,TA01V-151712~,JSAETA01C01101247~,JSAETA01V01100700~,JSAETA01CSS100384~,JSAETA01VSS100821~ |
72211-56B01-000 |
US $18 |
||
|
46
|
46
72221-60A00-000
FLAP,FR FRAME SIDE,L
|
72221-60A00-000 |
— | ||
|
47
|
47
09103-12043-000 BOLT(12X20) |
09103-12043-000 |
US $1.92 |
||
|
47
|
47
09409-06318-000 CLIPTA01C-101254~,TA01V-104015~,JSAETA01C00128407~,JSAETA01V00120548~,2S3TA01C M6401565~,2S3TA01V000510001~ |
09409-06318-000 |
US $12.90 |
||
|
48
|
48
71461-60A00-000 COVER,FR SPNSN ARM HANGER,R |
71461-60A00-000 |
US $17.37 |
||
|
49
|
49
71471-60A00-000 COVER,FR SPNSN ARM HANGER,L |
71471-60A00-000 |
US $17.37 |
||
|
50
|
50
09409-07317-5PK CLIP(BLACK) |
09409-07317-5PK |
US $14.40 |
||
|
51
|
51
71481-60A00-000 PROTECTOR,1ST MOUNTING BRACKET |
71481-60A00-000 |
US $3.97 |
||
|
52
|
52
71517-56B02-000 SPACER,BODY FRONT MTGTA01C-110759~,TA01V-111933~,JSAETA01C00164032~,JSAETA01V00143232~ |
71517-56B02-000 |
US $2.29 |
||
