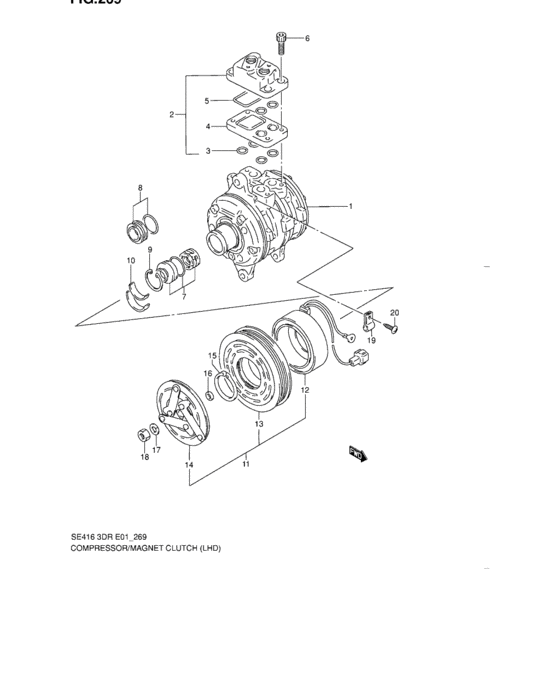

Compressor and magnet clutch (LHD) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
95200-60A51-000
Compressor & magnet clutch
TYPE 1:R12 |
95200-60A51-000 |
— | ||
|
|
95200-64A51-000
COMPRESSOR&MAGNET CLUTCH
TYPE 2:R12 |
95200-64A51-000 |
— | ||
|
|
95200-67A50-000
COMPRESSOR&MAGNET CLUTCH
TYPE 2,TYPE 3:HFC134A |
95200-67A50-000 |
— | ||
|
1
|
1
95230-82116-000
COMPRESSOR
TYPE 1,TYPE 2:R12 |
95230-82116-000 |
— | ||
|
1
|
1
95230-82117-000
COMPRESSOR
TYPE 2,TYPE 3:HFC134A |
95230-82117-000 |
— | ||
|
2
|
2
95251-82115-000
CONNECTOR,JOINT SERVICE
TYPE 1,TYPE 2:R12 |
95251-82115-000 |
— | ||
|
2
|
2
95251-82116-000 CONNECTOR,JOINT SERVICETYPE 2,TYPE 3:HFC134A |
95251-82116-000 |
US $220.80 |
||
|
3
|
3
95259-82001-000
SEAL,DIFFUSER
|
95259-82001-000 |
— | ||
|
4
|
4
95258-82010-000
DIFFUSER
|
95258-82010-000 |
— | ||
|
5
|
5
95254-82000-000 O-RING |
95254-82000-000 |
US $6.15 |
||
|
6
|
6
07130-08253-000
Bolt
|
07130-08253-000 |
— | ||
| replacement | |||||
|
6
|
6
07130-0825B-000 Bolt |
07130-0825B-000 |
from US $1.28 |
||
|
7
|
7
95260-82000-000
Seal assy,mechanical
TYPE 1,TYPE 2:R12,FOR 95200-60A50 |
95260-82000-000 |
— | ||
|
8
|
8
95260-82001-000
Seal assy, shaft
TYPE 1,TYPE 2:R12,FOR 95200-60A51,95200-64A51 |
95260-82001-000 |
— | ||
| replacement | |||||
|
8
|
8
95260-82002-000 SEAL ASSY,LIPTYPE 1,TYPE 2:R12,FOR 95200-60A51,95200-64A51 |
95260-82002-000 |
US $75.81 |
||
|
8
|
8
95260-82002-000 SEAL ASSY,LIPTYPE 2,TYPE 3:HFC134A |
95260-82002-000 |
US $75.81 |
||
|
9
|
9
08331-41303-000
Circlip 30mm
|
08331-41303-000 |
— | ||
| replacement | |||||
|
9
|
9
08331-41309-000 CIRCLIP |
08331-41309-000 |
from US $3.86 |
||
|
10
|
10
95271-82000-000 FELT,OIL |
95271-82000-000 |
US $9.57 |
||
|
11
|
11
95210-60A50-000
Magnet, clutch
TYPE 1:R12 |
95210-60A50-000 |
— | ||
| replacement | |||||
|
11
|
11
95210-60A51-000 CLUTCH ASSY,MAGNETTYPE 1:R12 |
95210-60A51-000 |
US $401.28 |
||
|
11
|
11
95210-64A50-000
Magnet, clutcy
TYPE 2:R12 |
95210-64A50-000 |
— | ||
| replacement | |||||
|
11
|
11
95210-64A51-000 CLUTCH ASSY,MAGNETTYPE 2:R12 |
95210-64A51-000 |
US $401.28 |
||
|
11
|
11
95210-64A51-000 CLUTCH ASSY,MAGNETTYPE 2,TYPE 3:HFC134A |
95210-64A51-000 |
US $401.28 |
||
|
12
|
12
95213-60A50-000
COIL,MAGNET CLUTCH
TYPE 1,TYPE 2:R12 |
95213-60A50-000 |
— | ||
|
12
|
12
95213-60A51-000 COIL,MAGNETO CLUTCHTYPE 2,TYPE 3:HFC134A |
95213-60A51-000 |
US $101.57 |
||
|
13
|
13
95212-60A51-000 CLUTCH,COMPRESSOR DRIVETYPE 1:R12 |
95212-60A51-000 |
US $224.48 |
||
|
13
|
13
95212-64A51-000 CLUTCH,COMPRESSOR DRIVETYPE 2,TYPE 3 |
95212-64A51-000 |
US $224.48 |
||
|
14
|
14
95211-82000-000 PLATE,CPRSR DRIVE CLUTCH |
95211-82000-000 |
US $129.90 |
||
|
15
|
15
08331-31383-000 CIRCLIP |
08331-31383-000 |
from US $1.82 |
||
|
16
|
16
95216-82000-000
WASHER,PLATE
|
95216-82000-000 |
— | ||
|
17
|
17
08321-01083-000
Lock washer
|
08321-01083-000 |
— | ||
| replacements | |||||
|
17
|
17
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
17
|
17
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
18
|
18
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
18
|
18
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
18
|
18
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
19
|
19
95215-82000-000
CLAMP,HARNESS
|
95215-82000-000 |
— | ||
|
20
|
20
03141-05083-000
Screw
|
03141-05083-000 |
— | ||
| replacement | |||||
|
20
|
20
03141-0508A-000 SCREW |
03141-0508A-000 |
US $7.70 |
||
|
21
|
21
95299-82005-000
OVERHAUL KIT
TYPE 1,TYPE 2:R12,NOT ILLUSTRATED |
95299-82005-000 |
— | ||
| replacement | |||||
|
21
|
21
95299-82006-000 OVERHAUL KITTYPE 1,TYPE 2:R12,NOT ILLUSTRATED |
95299-82006-000 |
US $182.53 |
||
|
21
|
21
95299-82006-000 OVERHAUL KITTYPE 2,TYPE 3:HFC134A,,NOT ILLUSTRATED |
95299-82006-000 |
US $182.53 |
||
