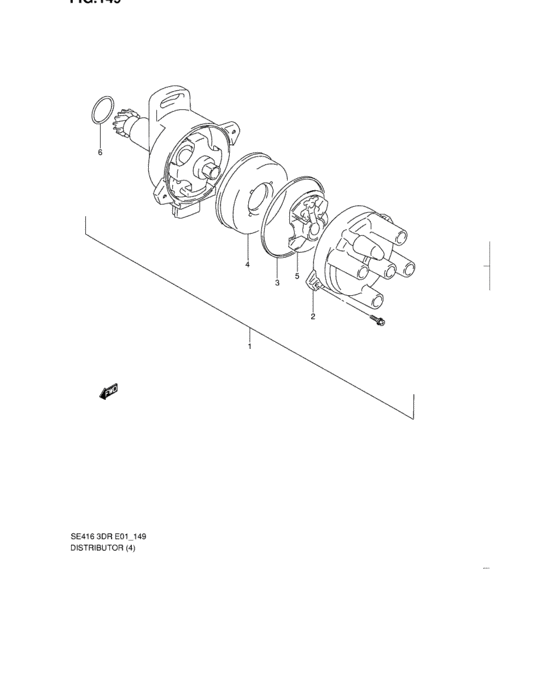

Distributor (TYPE 3:4 VALVE) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33100-58B10-000 DISTRIBUTOR ASSY |
33100-58B10-000 |
US $594.88 |
||
|
2
|
2
33321-58B10-000 CAP,DISTRIBUTOR |
33321-58B10-000 |
US $46 |
||
|
3
|
3
33324-60C30-000
パッキング,キャップ
|
33324-60C30-000 |
— | ||
| replacement | |||||
|
3
|
3
33324-50F50-000 PACKING |
33324-50F50-000 |
US $34.40 |
||
|
4
|
4
33326-50F60-000 COVER<-33326-50F50 |
33326-50F60-000 |
US $38.27 |
||
|
5
|
5
33310-60C30-000
ロータアッシ
<-33310-56B10 |
33310-60C30-000 |
— | ||
| replacement | |||||
|
5
|
5
33310-60C31-000 ROTOR ASSY<-33310-56B10 |
33310-60C31-000 |
US $29.60 |
||
|
6
|
6
33278-60B40-000 O-RING |
33278-60B40-000 |
from US $3.04 |
||
