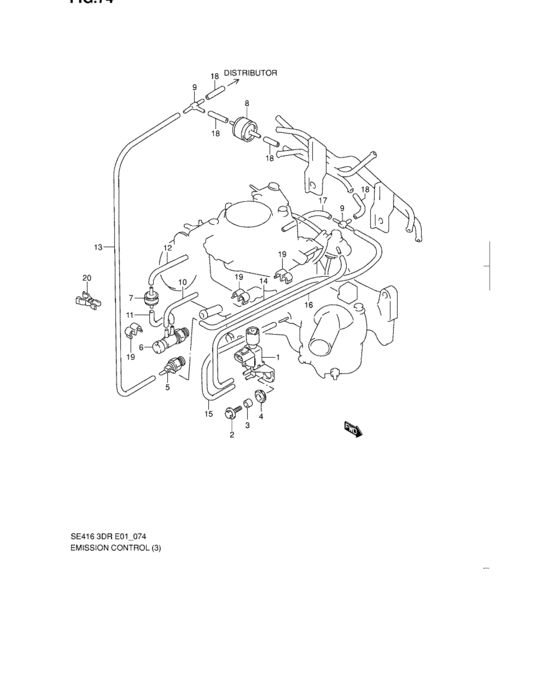

Emission control Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18117-60A00-000
VALVE,VACUUM SWITCHING
|
18117-60A00-000 |
— | ||
|
2
|
2
09116-06115-000 BOLT(6X20)Bolt (6x20) |
09116-06115-000 |
from US $1.37 |
||
|
3
|
3
09180-06106-000 SPACER(6.8X10X7) |
09180-06106-000 |
from US $2.08 |
||
|
4
|
4
09308-10004-000 GROMMET |
09308-10004-000 |
US $1.98 |
||
|
5
|
5
18122-60A00-000
VALVE,BVS
|
18122-60A00-000 |
— | ||
|
6
|
6
18123-80400-000 VALVE,BIMETAL VACUUM SWITCHING |
18123-80400-000 |
US $113.60 |
||
|
7
|
7
18115-83010-000
JET,50CC
|
18115-83010-000 |
— | ||
|
8
|
8
18114-80000-000 VALVE,VACUUM TRANSMITTING |
18114-80000-000 |
US $27.97 |
||
|
9
|
9
09367-04002-000 CONNECTOR |
09367-04002-000 |
US $4.80 |
||
|
10
|
10
09355-35754-600
ホース,3.5X7.5X600
L:600->95 |
09355-35754-600 |
— | ||
| replacements | |||||
|
10
|
10
09355-35754-601
HOSE(3.5X7.5X601)
L:600->95 |
09355-35754-601 |
— | ||
|
10
|
10
09355-35006-601 Hose(3.5X7.5X601)L:600->95 |
09355-35006-601 |
from US $5.78 |
||
|
11
|
11
09355-35754-600
ホース,3.5X7.5X600
L:600->100 |
09355-35754-600 |
— | ||
| replacements | |||||
|
11
|
11
09355-35754-601
HOSE(3.5X7.5X601)
L:600->100 |
09355-35754-601 |
— | ||
|
11
|
11
09355-35006-601 Hose(3.5X7.5X601)L:600->100 |
09355-35006-601 |
from US $5.78 |
||
|
12
|
12
09355-35754-600
ホース,3.5X7.5X600
L:600->65 |
09355-35754-600 |
— | ||
| replacements | |||||
|
12
|
12
09355-35754-601
HOSE(3.5X7.5X601)
L:600->65 |
09355-35754-601 |
— | ||
|
12
|
12
09355-35006-601 Hose(3.5X7.5X601)L:600->65 |
09355-35006-601 |
from US $5.78 |
||
|
13
|
13
09355-35754-600
ホース,3.5X7.5X600
L:600->280 |
09355-35754-600 |
— | ||
| replacements | |||||
|
13
|
13
09355-35754-601
HOSE(3.5X7.5X601)
L:600->280 |
09355-35754-601 |
— | ||
|
13
|
13
09355-35006-601 Hose(3.5X7.5X601)L:600->280 |
09355-35006-601 |
from US $5.78 |
||
|
14
|
14
09355-35754-600
ホース,3.5X7.5X600
L:600->350 |
09355-35754-600 |
— | ||
| replacements | |||||
|
14
|
14
09355-35754-601
HOSE(3.5X7.5X601)
L:600->350 |
09355-35754-601 |
— | ||
|
14
|
14
09355-35006-601 Hose(3.5X7.5X601)L:600->350 |
09355-35006-601 |
from US $5.78 |
||
|
15
|
15
09355-35754-600
ホース,3.5X7.5X600
L:600->115 |
09355-35754-600 |
— | ||
| replacements | |||||
|
15
|
15
09355-35754-601
HOSE(3.5X7.5X601)
L:600->115 |
09355-35754-601 |
— | ||
|
15
|
15
09355-35006-601 Hose(3.5X7.5X601)L:600->115 |
09355-35006-601 |
from US $5.78 |
||
|
16
|
16
09355-35754-600
ホース,3.5X7.5X600
L:600->240 |
09355-35754-600 |
— | ||
| replacements | |||||
|
16
|
16
09355-35754-601
HOSE(3.5X7.5X601)
L:600->240 |
09355-35754-601 |
— | ||
|
16
|
16
09355-35006-601 Hose(3.5X7.5X601)L:600->240 |
09355-35006-601 |
from US $5.78 |
||
|
17
|
17
09355-35754-600
ホース,3.5X7.5X600
L:600->30 |
09355-35754-600 |
— | ||
| replacements | |||||
|
17
|
17
09355-35754-601
HOSE(3.5X7.5X601)
L:600->30 |
09355-35754-601 |
— | ||
|
17
|
17
09355-35006-601 Hose(3.5X7.5X601)L:600->30 |
09355-35006-601 |
from US $5.78 |
||
|
18
|
18
09355-35754-600
ホース,3.5X7.5X600
L:600->30 |
09355-35754-600 |
— | ||
| replacements | |||||
|
18
|
18
09355-35754-601
HOSE(3.5X7.5X601)
L:600->30 |
09355-35754-601 |
— | ||
|
18
|
18
09355-35006-601 Hose(3.5X7.5X601)L:600->30 |
09355-35006-601 |
from US $5.78 |
||
|
19
|
19
09408-00033-000 CLAMPClamp |
09408-00033-000 |
from US $1.60 |
||
|
20
|
20
09408-00056-000 CLIP |
09408-00056-000 |
from US $4.22 |
||
