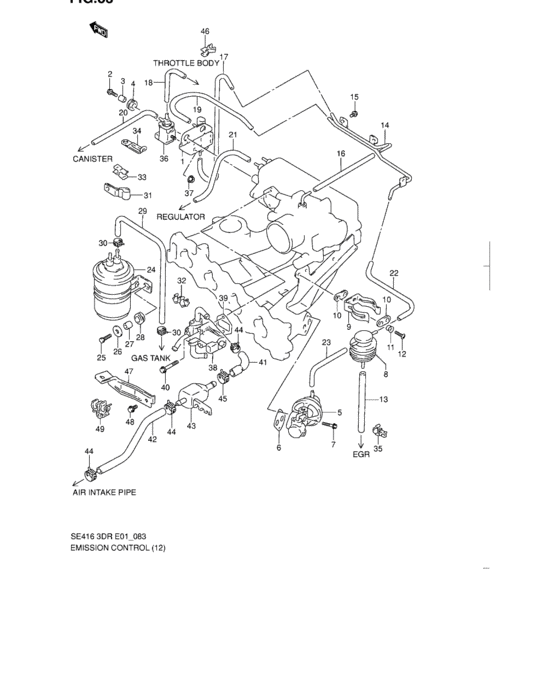

Emission control (TYPE 3:4V:W/FUEL INJECTION) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18117-58B20-000 VALVE,VACUUM SWITCHING FOR EGR |
18117-58B20-000 |
US $204.80 |
||
|
2
|
2
09136-06086-000
スクリュ,6X14
|
09136-06086-000 |
— | ||
| replacement | |||||
|
2
|
2
09136-06133-000 BOLT(6X16)Screw |
09136-06133-000 |
US $12.50 |
||
|
3
|
3
09180-06106-000 SPACER(6.8X10X7) |
09180-06106-000 |
from US $2.08 |
||
|
4
|
4
09308-10004-000 GROMMET |
09308-10004-000 |
US $1.98 |
||
|
5
|
5
18111-58B40-000 VALVE,EGR |
18111-58B40-000 |
US $217.12 |
||
|
6
|
6
18529-60A00-000 GASKET,EGR VALVE |
18529-60A00-000 |
US $1.60 |
||
|
7
|
7
01550-06453-000
Bolt
|
01550-06453-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-0645A-000 Bolt |
01550-0645A-000 |
from US $0.96 |
||
|
8
|
8
18112-55A00-000 MODULATOR ASSY,EGR |
18112-55A00-000 |
US $121.44 |
||
|
9
|
9
13814-82000-000 CLAMP,MODULATOR |
13814-82000-000 |
US $6.40 |
||
|
10
|
10
13817-82000-000 CUSHION,MODULATOR CLAMP |
13817-82000-000 |
US $2.87 |
||
|
11
|
11
13815-82000-000 WASHER,MODULATOR CLAMP |
13815-82000-000 |
US $2.72 |
||
|
12
|
12
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
12
|
12
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
13
|
13
18471-65B00-000 HOSE,MODULATER |
18471-65B00-000 |
US $60.72 |
||
|
14
|
14
18340-57B01-000
PIPE,VACUUM
|
18340-57B01-000 |
— | ||
|
15
|
15
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
15
|
15
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
16
|
16
09355-35754-600
ホース,3.5X7.5X600
L:600->85 |
09355-35754-600 |
— | ||
| replacements | |||||
|
16
|
16
09355-35754-601
HOSE(3.5X7.5X601)
L:600->85 |
09355-35754-601 |
— | ||
|
16
|
16
09355-35006-601 Hose(3.5X7.5X601)L:600->85 |
09355-35006-601 |
from US $5.78 |
||
|
17
|
17
09355-35754-600
ホース,3.5X7.5X600
L:600->180 |
09355-35754-600 |
— | ||
| replacements | |||||
|
17
|
17
09355-35754-601
HOSE(3.5X7.5X601)
L:600->180 |
09355-35754-601 |
— | ||
|
17
|
17
09355-35006-601 Hose(3.5X7.5X601)L:600->180 |
09355-35006-601 |
from US $5.78 |
||
|
18
|
18
09355-35754-600
ホース,3.5X7.5X600
L:600->65 |
09355-35754-600 |
— | ||
| replacements | |||||
|
18
|
18
09355-35754-601
HOSE(3.5X7.5X601)
L:600->65 |
09355-35754-601 |
— | ||
|
18
|
18
09355-35006-601 Hose(3.5X7.5X601)L:600->65 |
09355-35006-601 |
from US $5.78 |
||
|
19
|
19
09355-35754-600
ホース,3.5X7.5X600
L:600->150 |
09355-35754-600 |
— | ||
| replacements | |||||
|
19
|
19
09355-35754-601
HOSE(3.5X7.5X601)
L:600->150 |
09355-35754-601 |
— | ||
|
19
|
19
09355-35006-601 Hose(3.5X7.5X601)L:600->150 |
09355-35006-601 |
from US $5.78 |
||
|
20
|
20
09355-35754-600
ホース,3.5X7.5X600
L:600->200 |
09355-35754-600 |
— | ||
| replacements | |||||
|
20
|
20
09355-35754-601
HOSE(3.5X7.5X601)
L:600->200 |
09355-35754-601 |
— | ||
|
20
|
20
09355-35006-601 Hose(3.5X7.5X601)L:600->200 |
09355-35006-601 |
from US $5.78 |
||
|
21
|
21
09355-35754-600
ホース,3.5X7.5X600
L:600->170 |
09355-35754-600 |
— | ||
| replacements | |||||
|
21
|
21
09355-35754-601
HOSE(3.5X7.5X601)
L:600->170 |
09355-35754-601 |
— | ||
|
21
|
21
09355-35006-601 Hose(3.5X7.5X601)L:600->170 |
09355-35006-601 |
from US $5.78 |
||
|
22
|
22
09355-35754-600
ホース,3.5X7.5X600
L:600->130 |
09355-35754-600 |
— | ||
| replacements | |||||
|
22
|
22
09355-35754-601
HOSE(3.5X7.5X601)
L:600->130 |
09355-35754-601 |
— | ||
|
22
|
22
09355-35006-601 Hose(3.5X7.5X601)L:600->130 |
09355-35006-601 |
from US $5.78 |
||
|
23
|
23
09355-35754-600
ホース,3.5X7.5X600
L:600->290 |
09355-35754-600 |
— | ||
| replacements | |||||
|
23
|
23
09355-35754-601
HOSE(3.5X7.5X601)
L:600->290 |
09355-35754-601 |
— | ||
|
23
|
23
09355-35006-601 Hose(3.5X7.5X601)L:600->290 |
09355-35006-601 |
from US $5.78 |
||
|
24
|
24
18560-61A00-000 CANISTER |
18560-61A00-000 |
US $156.80 |
||
|
25
|
25
01500-08203-000
Bolt
|
01500-08203-000 |
— | ||
| replacement | |||||
|
25
|
25
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
26
|
26
09160-08133-000
Washer
|
09160-08133-000 |
— | ||
| replacement | |||||
|
26
|
26
09160-08151-000 WASHER(8.5X26X1.6)Washer, shift rod (8.5x26x1.6) |
09160-08151-000 |
from US $0.91 |
||
|
27
|
27
09180-08185-000 SPACER(8.5X12X6) |
09180-08185-000 |
US $23.20 |
||
|
28
|
28
09320-12011-000
CUSHION
|
09320-12011-000 |
— | ||
| replacement | |||||
|
28
|
28
09320-12090-000 Cushion(11.8X25X7.5) |
09320-12090-000 |
from US $1.67 |
||
|
29
|
29
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->550 |
09355-54115-600 |
from US $7.20 |
||
|
30
|
30
09401-10409-000 CLIP |
09401-10409-000 |
from US $1.12 |
||
|
31
|
31
09403-12405-000 CLAMP |
09403-12405-000 |
US $18 |
||
|
32
|
32
09408-00083-000 CLAMP |
09408-00083-000 |
US $17.30 |
||
|
33
|
33
09408-00137-000 CLAMP |
09408-00137-000 |
US $19.10 |
||
|
34
|
34
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
35
|
35
09408-00111-000 CLAMP |
09408-00111-000 |
US $2.08 |
||
|
36
|
36
18117-58B10-000 SOLENOID,DUTY FOR PURGE |
18117-58B10-000 |
US $158.08 |
||
|
37
|
37
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
37
|
37
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
38
|
38
18117-58B00-000 VALVE,ISC |
18117-58B00-000 |
US $766.40 |
||
|
39
|
39
18139-58B00-000 GASKET,ISC VALVE |
18139-58B00-000 |
from US $3.40 |
||
|
40
|
40
01550-06453-000
Bolt
|
01550-06453-000 |
— | ||
| replacement | |||||
|
40
|
40
01550-0645A-000 Bolt |
01550-0645A-000 |
from US $0.96 |
||
|
41
|
41
18141-58B00-000 HOSE,ISC-V NO.1 |
18141-58B00-000 |
US $14.88 |
||
|
42
|
42
18142-58B00-000 HOSE,ISC-V NO.2 |
18142-58B00-000 |
US $24 |
||
|
43
|
43
18145-58B00-000
CHAMBER,ISC VALVE
|
18145-58B00-000 |
— | ||
|
44
|
44
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
|
45
|
45
09401-18404-000 CLIP |
09401-18404-000 |
from US $1.33 |
||
|
46
|
46
09408-00067-000 CLIP |
09408-00067-000 |
US $11 |
||
|
47
|
47
18568-56B01-000 BRACKET,CANISTER HOSE CLAMP |
18568-56B01-000 |
US $4.60 |
||
|
48
|
48
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
48
|
48
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
48
|
48
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
49
|
49
09403-13308-000 CLAMP |
09403-13308-000 |
US $14 |
||
