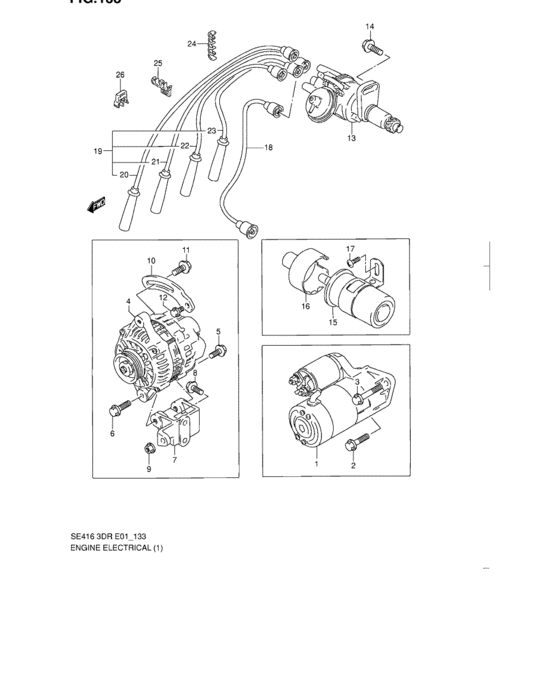

Engine electrical (TYPE 1) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-83031-000
Motor assy,starting
<-31100-83011 |
31100-83031-000 |
— | ||
| replacements | |||||
|
1
|
1
31100-83031-REM
Starting motor
<-31100-83011 |
31100-83031-REM |
— | ||
|
1
|
1
31100-83032-000 MOTOR ASSY,STARTING<-31100-83011 |
31100-83032-000 |
US $524.48 |
||
|
1
|
1
31100-60A12-000
モータアッシ,スターティング
Norway,Sweden,Iceland,<-31100-60A11 |
31100-60A12-000 |
— | ||
| replacements | |||||
|
1
|
1
31100-60A12-REM
Starting motor
Norway,Sweden,Iceland,<-31100-60A11 |
31100-60A12-REM |
— | ||
|
1
|
1
31100-60A24-000 MOTOR ASSY,STARTINGNorway,Sweden,Iceland,<-31100-60A11 |
31100-60A24-000 |
US $668.80 |
||
|
2
|
2
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
2
|
2
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
3
|
3
01550-08503-000
Bolt
|
01550-08503-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0850B-000 Bolt |
01550-0850B-000 |
from US $1.22 |
||
|
4
|
4
31400-60A11-000
Generator assy
|
31400-60A11-000 |
— | ||
| replacements | |||||
|
4
|
4
31400-60A13-000
GENERATOR ASSY
|
31400-60A13-000 |
— | ||
|
4
|
4
31400-60A14-000 Generator Assy |
31400-60A14-000 |
US $693.44 |
||
|
5
|
5
01550-08303-000
Bolt
|
01550-08303-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
5
|
5
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
6
|
6
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
6
|
6
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
7
|
7
17911-86500-000
BRACKET,GENERATOR
|
17911-86500-000 |
— | ||
|
8
|
8
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
8
|
8
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
9
|
9
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
10
|
10
17921-60A00-000
ARM,GENERATOR ADJUST
|
17921-60A00-000 |
— | ||
|
11
|
11
09118-08107-000 BOLT(8X25) |
09118-08107-000 |
US $1.12 |
||
|
12
|
12
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
12
|
12
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
13
|
13
33100-60A10-000
DISTRIBUTOR ASSY
W/CARBURETOR |
33100-60A10-000 |
— | ||
|
14
|
14
09138-08003-000 SCREW(8X30)<-09118-08110 |
09138-08003-000 |
from US $1.49 |
||
|
15
|
15
33410-71C10-000 COIL ASSY,IGNITION |
33410-71C10-000 |
US $163.20 |
||
|
16
|
16
33471-77011-000
CAP,IGNITION COIL
,Norway,Sweden,Switzerland,Belgium,1,,2,5,6,Italy,Austria,Channel Islands,,Iceland |
33471-77011-000 |
— | ||
|
17
|
17
02142-06103-000
Screw
|
02142-06103-000 |
— | ||
| replacements | |||||
|
17
|
17
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
17
|
17
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
18
|
18
33710-60A20-000
CORD,HT,NO.1
|
33710-60A20-000 |
— | ||
|
19
|
19
33705-83020-000
コードセット,ハイテンション
|
33705-83020-000 |
— | ||
| replacement | |||||
|
19
|
19
33705-80C00-000 CORD SET,HIGH TENSION |
33705-80C00-000 |
US $70.40 |
||
|
20
|
20
33730-60C30-000
CORD,HT NO.2
|
33730-60C30-000 |
— | ||
|
21
|
21
33740-60C30-000
CORD,HT NO.3
|
33740-60C30-000 |
— | ||
|
22
|
22
33750-83020-000
コード,ハイテンション,NO.4
|
33750-83020-000 |
— | ||
| replacement | |||||
|
22
|
22
33750-80C00-000 CORD,HT NO.4 |
33750-80C00-000 |
US $19.01 |
||
|
23
|
23
33760-85220-000 CORD,HT NO.5 |
33760-85220-000 |
US $20.53 |
||
|
24
|
24
09408-00116-000 CLIP<-33883-83020 |
09408-00116-000 |
US $44.90 |
||
|
25
|
25
33884-86510-000 CLAMP |
33884-86510-000 |
US $2.08 |
||
|
26
|
26
33882-60A10-000 CLAMP,HT CORDW/FUEL INJECTION |
33882-60A10-000 |
US $3.02 |
||
