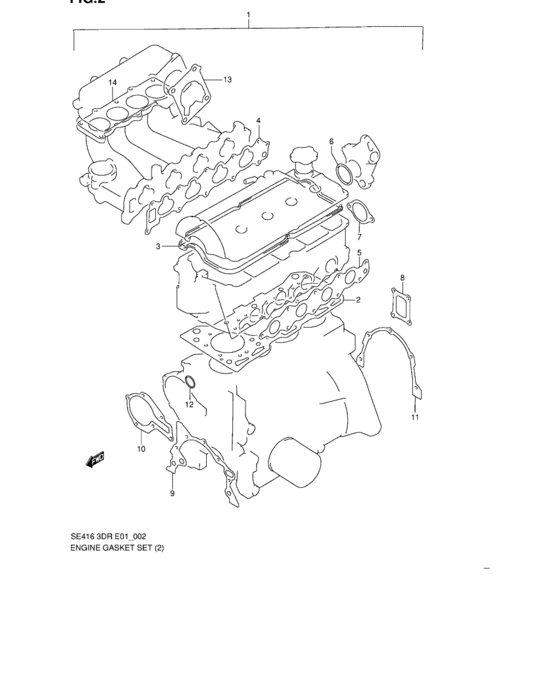

Engine gasket set (4 VALVE) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11400-58829-000
ガスケットセット,エンジン
|
11400-58829-000 |
— | ||
| replacement | |||||
|
1
|
1
11400-58832-000 GASKET SET,ENGINE |
11400-58832-000 |
from US $176.02 |
||
|
2
|
2
11141-71C00-000 GASKET,CYL HEAD |
11141-71C00-000 |
from US $74.99 |
||
|
3
|
3
11189-71C00-000 GASKET,CYL HEAD COVERGasket, cylinder head cover |
11189-71C00-000 |
from US $11.12 |
||
|
4
|
4
13119-57B00-000 GASKET,INTK MANFGasket, intake manifold |
13119-57B00-000 |
from US $11.32 |
||
|
5
|
5
14140-58B01-000
ガスケット,エキゾーストマニホールド
|
14140-58B01-000 |
— | ||
| replacement | |||||
|
5
|
5
14140-52G00-000 Gasket, exhaust manifold |
14140-52G00-000 |
from US $14.04 |
||
|
6
|
6
11162-71C01-000
Oリング,ケース
|
11162-71C01-000 |
— | ||
| replacement | |||||
|
6
|
6
11162-71C10-000 O-RING,CASEO ring, dli sensor case |
11162-71C10-000 |
from US $2.24 |
||
|
7
|
7
17699-60B02-000 GASKET,THERMO CASE |
17699-60B02-000 |
from US $3.94 |
||
|
8
|
8
11229-60A00-000 GASKET,CYL BLOCK PLATE |
11229-60A00-000 |
US $13.44 |
||
|
9
|
9
16119-60A04-000
Gasket
<-16119-60A03 |
16119-60A04-000 |
— | ||
| replacement | |||||
|
9
|
9
16119-60A05-000 GASKET,OIL PUMP<-16119-60A03 |
16119-60A05-000 |
US $16.80 |
||
|
10
|
10
17431-60A00-000 GASKET,WATER PUMP |
17431-60A00-000 |
from US $3.80 |
||
|
11
|
11
11349-60A01-000 GASKET,OIL SEAL HSGGasket, oil seal housing |
11349-60A01-000 |
from US $6.05 |
||
|
12
|
12
09280-28008-000 O RING(D:3.5,ID:27.7) |
09280-28008-000 |
from US $0.63 |
||
|
13
|
13
13421-58B00-000 GASKET,THROTTLE BODY |
13421-58B00-000 |
US $2.72 |
||
|
14
|
14
13122-58B00-000
GASKET,SURGE TANK
|
13122-58B00-000 |
— | ||
