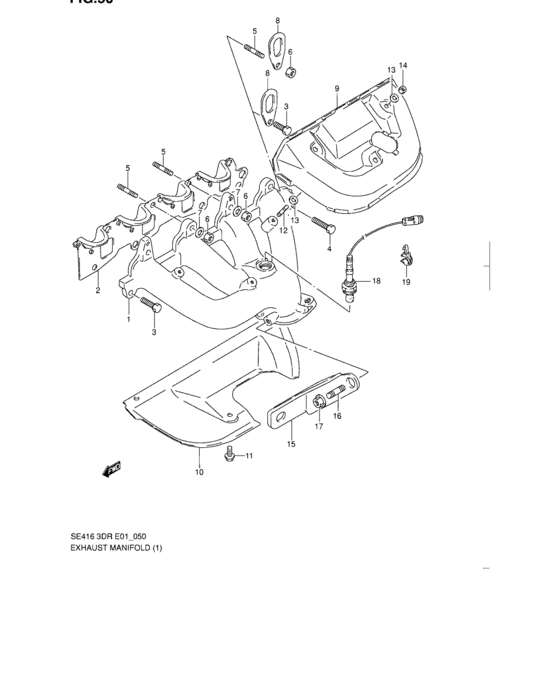

Exhaust manifold Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-60X51-000
MANIFOLD,EXH
|
14111-60X51-000 |
— | ||
|
2
|
2
14140-60A20-000 GASKET,EXH MANF |
14140-60A20-000 |
US $102.40 |
||
|
3
|
3
01500-08253-000
Bolt
~TA01C-110373,~TA01V-111110,~JSAETA01C00163210,~JSAETA01V00142601,TYPE 1:Germany:,PRODUCT OF CANADA |
01500-08253-000 |
— | ||
| replacement | |||||
|
3
|
3
01500-0825A-000 Bolt~TA01C-110373,~TA01V-111110,~JSAETA01C00163210,~JSAETA01V00142601,TYPE 1:Germany:,PRODUCT OF CANADA |
01500-0825A-000 |
from US $0.91 |
||
|
4
|
4
01500-08353-000
Bolt
|
01500-08353-000 |
— | ||
| replacement | |||||
|
4
|
4
01500-0835B-000 BOLTBolt, muffler support |
01500-0835B-000 |
from US $0.96 |
||
|
4
|
4
01550-08353-000
Bolt, rear
TA01C-110374~,TA01V-111111~,JSAETA01C00163211~,JSAETA01V00142602~,TYPE 2:Germany:,PRODUCT OF CANADA |
01550-08353-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0835B-000 BOLTTA01C-110374~,TA01V-111111~,JSAETA01C00163211~,JSAETA01V00142602~,TYPE 2:Germany:,PRODUCT OF CANADA |
01550-0835B-000 |
from US $1.12 |
||
|
4
|
4
01550-0835A-000 BOLTTA01C-110374~,TA01V-111111~,JSAETA01C00163211~,JSAETA01V00142602~,TYPE 2:Germany:,PRODUCT OF CANADA |
01550-0835A-000 |
from US $1.06 |
||
|
5
|
5
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
| replacement | |||||
|
5
|
5
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.12 |
||
|
6
|
6
08310-00083-000
Nut
|
08310-00083-000 |
— | ||
| replacements | |||||
|
6
|
6
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
6
|
6
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
7
|
7
08322-01083-000
WASHER
TA01C-110374~,TA01V-111111~,JSAETA01C00163211~,JSAETA01V00142602~,TYPE 2:Germany:,PRODUCT OF CANADA |
08322-01083-000 |
— | ||
| replacements | |||||
|
7
|
7
08322-0108B-000 WASHERTA01C-110374~,TA01V-111111~,JSAETA01C00163211~,JSAETA01V00142602~,TYPE 2:Germany:,PRODUCT OF CANADA |
08322-0108B-000 |
from US $0.80 |
||
|
7
|
7
08322-0108A-000 WASHERTA01C-110374~,TA01V-111111~,JSAETA01C00163211~,JSAETA01V00142602~,TYPE 2:Germany:,PRODUCT OF CANADA |
08322-0108A-000 |
from US $0.80 |
||
|
8
|
8
11851-62B00-000 HOOK |
11851-62B00-000 |
US $5.02 |
||
|
9
|
9
14120-60A00-000
COVER,EXH MANF,UPPER
W/CARBURETOR,W/WARM AIR |
14120-60A00-000 |
— | ||
|
9
|
9
14120-61A00-000
カバー,エキゾーストマニホールド,アッパ
W/CARBURETOR,N/WARM AIR |
14120-61A00-000 |
— | ||
| replacement | |||||
|
9
|
9
14120-60A00-000
COVER,EXH MANF,UPPER
W/CARBURETOR,N/WARM AIR |
14120-60A00-000 |
— | ||
|
10
|
10
14130-60A00-000
COVER,EXH MANF,LOWER
|
14130-60A00-000 |
— | ||
|
11
|
11
09103-06168-000 BOLT(6X10) |
09103-06168-000 |
from US $1.01 |
||
|
12
|
12
01411-06123-000
Bolt, stud
|
01411-06123-000 |
— | ||
| replacement | |||||
|
12
|
12
01411-0612A-000 BOLT,STUD |
01411-0612A-000 |
from US $0.67 |
||
|
13
|
13
08322-01063-000
Washer
|
08322-01063-000 |
— | ||
| replacement | |||||
|
13
|
13
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
14
|
14
08310-00063-000
Nut
|
08310-00063-000 |
— | ||
| replacements | |||||
|
14
|
14
08310-0006B-000 NUTNut gear shift link rod |
08310-0006B-000 |
from US $0.76 |
||
|
14
|
14
08310-0006A-000 NUT |
08310-0006A-000 |
from US $0.76 |
||
|
15
|
15
14190-60A01-000
Stiffener,exh manf
<-14190-60A00 |
14190-60A01-000 |
— | ||
|
16
|
16
01411-10163-000
スタッドボルト
|
01411-10163-000 |
— | ||
| replacement | |||||
|
16
|
16
01411-1016A-000 BOLT,STUD |
01411-1016A-000 |
US $1.60 |
||
|
17
|
17
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
18
|
18
18213-61A10-000
SENSOR,OXYGEN
TYPE 1,W/FUEL INJECTION |
18213-61A10-000 |
— | ||
|
18
|
18
18213-57B20-000
Sensok, oxygen
TYPE 2,TYPE 3,W/FUEL INJECTION |
18213-57B20-000 |
— | ||
| replacement | |||||
|
18
|
18
18213-57B21-000
SENSOR ASSY,OXYGEN
TYPE 2,TYPE 3,W/FUEL INJECTION |
18213-57B21-000 |
— | ||
|
18
|
18
18213-56B00-000 SENSOR,OXYGENTYPE 1,Germany:W/FUEL INJECTION,PRODUCT OF CANADA |
18213-56B00-000 |
US $246.56 |
||
|
19
|
19
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap TYPE 1,W/FUEL INJECTION |
09407-14403-000 |
from US $2.08 |
||
|
19
|
19
09407-14407-000 CLAMP(L:145)Band TYPE 2,TYPE 3,W/FUEL INJECTION |
09407-14407-000 |
from US $2.08 |
||
