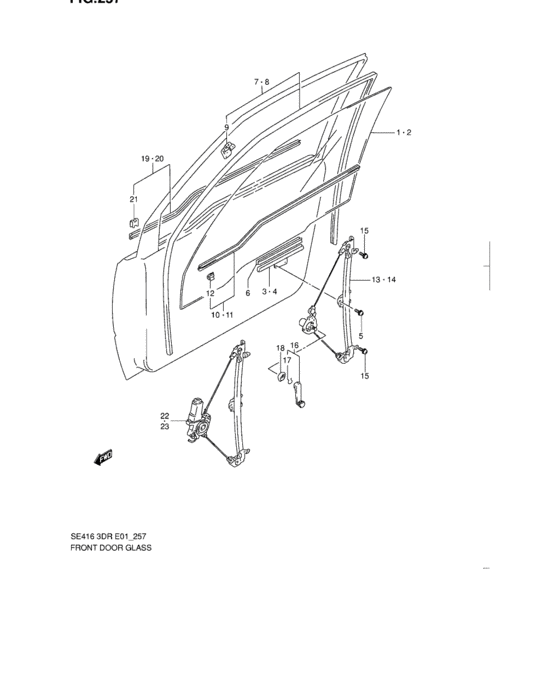

Fr dr glass (FR DR GLASS) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84531-61A01-000
Glass, window rh
|
84531-61A01-000 |
— | ||
| replacement | |||||
|
1
|
1
84531-61A30-000
GLASS,FR DR WDO,R
|
84531-61A30-000 |
— | ||
|
1
|
1
84531-61A11-000
ガラス,フロントドアウィンド,ライト(ブルー)
|
84531-61A11-000 |
— | ||
| replacement | |||||
|
1
|
1
84531-61A30-000
GLASS,FR DR WDO,R
|
84531-61A30-000 |
— | ||
|
1
|
1
84531-61A21-000
GLASS,FR DR WDO,R
|
84531-61A21-000 |
— | ||
|
2
|
2
84536-61A01-000
Glass, window lh
|
84536-61A01-000 |
— | ||
| replacement | |||||
|
2
|
2
84536-61A30-000
GLASS,FR DR WDO,L
|
84536-61A30-000 |
— | ||
|
2
|
2
84536-61A11-000
ガラス,フロントドアウィンド,レフト(ブルー)
|
84536-61A11-000 |
— | ||
| replacement | |||||
|
2
|
2
84536-61A30-000
GLASS,FR DR WDO,L
|
84536-61A30-000 |
— | ||
|
2
|
2
84536-61A21-000
GLASS,FR DR WDO,L
|
84536-61A21-000 |
— | ||
|
3
|
3
83610-60A00-000 CHANNEL,FR GLASS BOTTOM,R |
83610-60A00-000 |
US $32.80 |
||
|
4
|
4
83620-60A00-000 CHANNEL,FR GLASS BOTTOM,L |
83620-60A00-000 |
US $32.80 |
||
|
5
|
5
02112-76123-000
Screw
|
02112-76123-000 |
— | ||
| replacement | |||||
|
5
|
5
02112-7612B-000 SCREW |
02112-7612B-000 |
from US $0.96 |
||
|
6
|
6
83691-60A00-000 RUBBER,FR GLASS BOTTOM CHANNEL |
83691-60A00-000 |
US $2.56 |
||
|
7
|
7
83660-60A00-000 RUN,FR DOOR GLASS,R |
83660-60A00-000 |
US $84 |
||
|
8
|
8
83680-60A00-000 RUN,FR DOOR GLASS,L |
83680-60A00-000 |
US $92.80 |
||
|
9
|
9
83662-60A00-000 GUIDE,DR WINDOW GLASS |
83662-60A00-000 |
US $13.60 |
||
|
10
|
10
83850-60A00-000 WEATHERSTRIP,DR INR,RJX |
83850-60A00-000 |
US $94.40 |
||
|
11
|
11
83860-60A00-000 WEATHERSTRIP,DR INR,LJX |
83860-60A00-000 |
US $94.40 |
||
|
12
|
12
83852-60A00-000 CLIPJX |
83852-60A00-000 |
US $1.92 |
||
|
13
|
13
83410-60A00-000 REGULATOR ASSY,FR WINDOW,RN/POWER WINDOW |
83410-60A00-000 |
US $171.20 |
||
|
14
|
14
83440-60A00-000 REGULATOR ASSY,FR WINDOW,LN/POWER WINDOW |
83440-60A00-000 |
US $171.20 |
||
|
15
|
15
02112-76123-000
Screw
N/POWER WINDOW |
02112-76123-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-7612B-000 SCREWN/POWER WINDOW |
02112-7612B-000 |
from US $0.96 |
||
|
16
|
16
82960-82001-5ER
HANDLE,DR WINDOW RGLTR
N/POWER WINDOW,<-82960-82000-5ER |
82960-82001-5ER |
— | ||
|
16
|
16
82960-82001-5ES HANDLE,DR WINDOW RGLTRN/POWER WINDOW,<-82960-82000-5ES |
82960-82001-5ES |
US $28.80 |
||
|
17
|
17
78463-78000-000 SNAPN/POWER WINDOW |
78463-78000-000 |
US $1.60 |
||
|
18
|
18
82972-82101-5ER
Escutcheon,window rgltr handle
N/POWER WINDOW,<-82972-82100-5ER |
82972-82101-5ER |
— | ||
| replacement | |||||
|
18
|
18
82972-82101-5CW ESCUTCHEON,WINDOW RGLTR HDLN/POWER WINDOW,<-82972-82100-5ER |
82972-82101-5CW |
US $2.69 |
||
|
18
|
18
82972-82101-5ES ESCUTCHEON,RGLTR HDLN/POWER WINDOW,<-82972-82100-5ES |
82972-82101-5ES |
US $2.24 |
||
|
19
|
19
83810-60A00-000
WEATHERSTRIP,DR OUT,R
TYPE 1 |
83810-60A00-000 |
— | ||
|
19
|
19
83810-65A00-000 WEATHERSTRIP,DR OUT,RHTYPE 2,TYPE 3 |
83810-65A00-000 |
US $110.40 |
||
|
20
|
20
83820-60A00-000
WEATHERSTRIP,DR OUT,L
TYPE 1 |
83820-60A00-000 |
— | ||
|
20
|
20
83820-65A00-000 WEATHERSTRIP,DR OUT,LHTYPE 2,TYPE 3 |
83820-65A00-000 |
US $110.40 |
||
|
21
|
21
83812-60A00-000 CLIP |
83812-60A00-000 |
US $1.60 |
||
|
22
|
22
83401-62A00-000 REGULATOR ASSY,FR WINDOW,RJLX:W/POWER WINDOW |
83401-62A00-000 |
US $443.52 |
||
|
23
|
23
83402-62A00-000 REGULATOR ASSY,FR WINDOW,LJLX:W/POWER WINDOW |
83402-62A00-000 |
US $443.52 |
||
