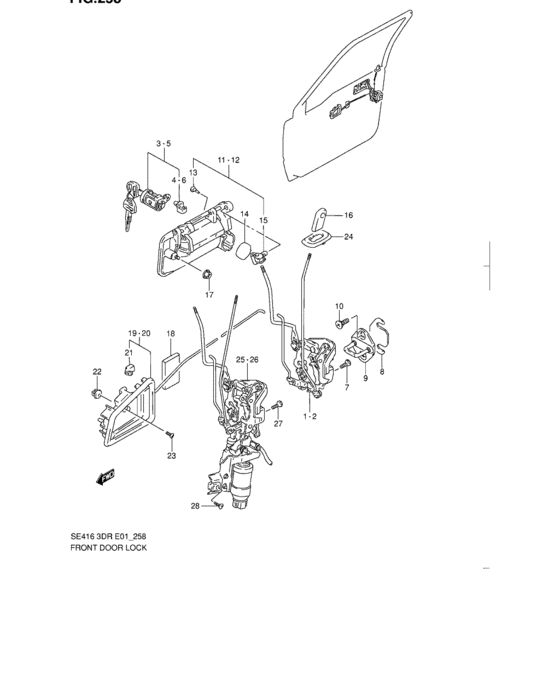

Fr dr lock (FR DR LOCK) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82201-65A00-000 LATCH ASSY,FR DR,R<-82201-60A00 |
82201-65A00-000 |
US $87.58 |
||
|
2
|
2
82202-65A00-000 LATCH ASSY,FR DR,L<-82202-60A00 |
82202-65A00-000 |
US $182.40 |
||
|
3
|
3
82200-60831-000 CYLINDER,FR DR LOCK,R<-82200-60830 |
82200-60831-000 |
US $51.15 |
||
|
4
|
4
82277-60A00-000 HOLDER |
82277-60A00-000 |
US $4.38 |
||
|
5
|
5
82200-60841-000 CYLINDER,FR DR LOCK,L<-82200-60840 |
82200-60841-000 |
US $76.80 |
||
|
6
|
6
82287-60A00-000 HOLDER |
82287-60A00-000 |
US $1.60 |
||
|
7
|
7
02122-56163-000
SCREW
|
02122-56163-000 |
— | ||
| replacement | |||||
|
7
|
7
02122-5616B-000 SCREW |
02122-5616B-000 |
US $0.80 |
||
|
8
|
8
78199-78000-000 SPACER,DOOR LOCK STRIKER |
78199-78000-000 |
US $1.60 |
||
|
9
|
9
82610-60A01-000 STRIKER,FR DOOR LATCH<-82610-60A00 |
82610-60A01-000 |
US $21.60 |
||
|
10
|
10
09137-08011-000 SCREW(8X18) |
09137-08011-000 |
US $1.44 |
||
|
11
|
11
82810-60A00-5PK HANDLE,FRONT DOOR OUT,R |
82810-60A00-5PK |
US $169.60 |
||
|
11
|
11
82810-60A00-0AA
HANDLE,FRONT DOOR OUT,R
TYPE 2:JLX,Germany:PRODUCT OF CANADA |
82810-60A00-0AA |
— | ||
|
11
|
11
82810-60A00-0DG
HANDLE,FRONT DOOR OUT,R
TYPE 2:JLX,Germany:PRODUCT OF CANADA |
82810-60A00-0DG |
— | ||
| replacement | |||||
|
11
|
11
82810-60A00-5PK HANDLE,FRONT DOOR OUT,RTYPE 2:JLX,Germany:PRODUCT OF CANADA |
82810-60A00-5PK |
US $169.60 |
||
|
11
|
11
82810-60A00-0RW
Handle,front door out,r(blue)
TYPE 2:JLX |
82810-60A00-0RW |
— | ||
|
11
|
11
82810-60A00-0UE
Handle, door out rh
Germany:PRODUCT OF CANDDA |
82810-60A00-0UE |
— | ||
|
11
|
11
82810-60A00-26U
HANDLE,FRONT DOOR OUT,R
TYPE 2,TYPE 3:JLX,Germany:PRODUCT OF CANADA |
82810-60A00-26U |
— | ||
| replacement | |||||
|
11
|
11
82810-60A00-5PK HANDLE,FRONT DOOR OUT,RTYPE 2,TYPE 3:JLX,Germany:PRODUCT OF CANADA |
82810-60A00-5PK |
US $169.60 |
||
|
11
|
11
82810-60A00-37V
HANDLE,FRONT DOOR OUT,R
TYPE 2:JLX,Germany:PRODUCT OF CANADA |
82810-60A00-37V |
— | ||
| replacement | |||||
|
11
|
11
82810-60A00-5PK HANDLE,FRONT DOOR OUT,RTYPE 2:JLX,Germany:PRODUCT OF CANADA |
82810-60A00-5PK |
US $169.60 |
||
|
11
|
11
82810-60A00-38B
HANDLE,FRONT DOOR OUT,R
TYPE 2,TYPE 3:JLX,Germany:PRODUCT OF CANADA |
82810-60A00-38B |
— | ||
|
11
|
11
82810-60A00-1FH
Handle, door out rh
Germany:PRODUCT OF CANADA |
82810-60A00-1FH |
— | ||
|
11
|
11
82810-60A00-1FG
Handle comp,front door out,r
TYPE 2,TYPE 3:JLX |
82810-60A00-1FG |
— | ||
|
11
|
11
82810-60A00-0FT
HANDLE,FRONT DOOR OUT,R
TYPE 2,TYPE 3:JLX |
82810-60A00-0FT |
— | ||
|
11
|
11
82810-60A00-Y27
ハンドル,フロントドアアウト,ライト(グレー)
TYPE 3:JLX |
82810-60A00-Y27 |
— | ||
|
11
|
11
82810-60A00-Y29
HANDLE,FRONT DOOR OUT,R
TYPE 3:JLX |
82810-60A00-Y29 |
— | ||
|
11
|
11
82810-60A00-Z01
HANDLE,FRONT DOOR OUT,R
TYPE 3:JLX |
82810-60A00-Z01 |
— | ||
| replacement | |||||
|
11
|
11
82810-60A00-5PK HANDLE,FRONT DOOR OUT,RTYPE 3:JLX |
82810-60A00-5PK |
US $169.60 |
||
|
11
|
11
82810-60AA0-1PU
Handle, door out rh
Germany:PRODUCT OF CANADA |
82810-60AA0-1PU |
— | ||
|
11
|
11
82810-60AA0-1PV
Handle, door out rh
Germany:PRODUCT OF CANADA |
82810-60AA0-1PV |
— | ||
|
11
|
11
82810-60AA0-1SC
Handle, door out rh
Germany:PRODUCT OF CANADA |
82810-60AA0-1SC |
— | ||
|
11
|
11
82810-60AA0-1SH
Handle, door out rh
Germany:PRODUCT OF CANADA |
82810-60AA0-1SH |
— | ||
|
11
|
11
82810-60AA0-1RZ
Handle, door out rh
Germany:PRODUCT OF CANADA |
82810-60AA0-1RZ |
— | ||
|
12
|
12
82820-60A00-5PK HANDLE,FRONT DOOR OUT,L |
82820-60A00-5PK |
US $169.60 |
||
|
12
|
12
82820-60A00-0AA
HANDLE,FRONT DOOR OUT,L
TYPE 2:JLX,Germany:PRODUCT OF CANADA |
82820-60A00-0AA |
— | ||
|
12
|
12
82820-60A00-0DG
HANDLE,FRONT DOOR OUT,L
TYPE 2:JLX,Germany:PRODUCT OF CANADA |
82820-60A00-0DG |
— | ||
| replacement | |||||
|
12
|
12
82820-60A00-5PK HANDLE,FRONT DOOR OUT,LTYPE 2:JLX,Germany:PRODUCT OF CANADA |
82820-60A00-5PK |
US $169.60 |
||
|
12
|
12
82820-60A00-0RW
ハンドル,フロントドアアウタ,レフト(ブルー)
TYPE 2:JLX |
82820-60A00-0RW |
— | ||
|
12
|
12
82820-60A00-0UE
Handle, door out lh
Germany:PRODUCT OF CANADA |
82820-60A00-0UE |
— | ||
|
12
|
12
82820-60A00-26U
Handle,front door out,l(white)
TYPE 2,TYPE 3:JLX,Germany:PRODUCT OF CANADA |
82820-60A00-26U |
— | ||
|
12
|
12
82820-60A00-37V
Handle comp,front door out,l
TYPE 2:JLX,Germany:PRODUCT OF CANADA |
82820-60A00-37V |
— | ||
| replacement | |||||
|
12
|
12
82820-60A00-5PK HANDLE,FRONT DOOR OUT,LTYPE 2:JLX,Germany:PRODUCT OF CANADA |
82820-60A00-5PK |
US $169.60 |
||
|
12
|
12
82820-60A00-38B
Handle,front door out,l(gray)
TYPE 2,TYPE 3:JLX,Germany:PRODUCT OF CANADA |
82820-60A00-38B |
— | ||
|
12
|
12
82820-60A00-1FH
Handle, door out lh
Germany:PRODUCT OF CANADA |
82820-60A00-1FH |
— | ||
|
12
|
12
82820-60A00-1FG HANDLE,FRONT DOOR OUT,LTYPE 2,TYPE 3:JLX |
82820-60A00-1FG |
US $98.62 |
||
|
12
|
12
82820-60A00-0FT
HANDLE,FRONT DOOR OUT,L
TYPE 2,TYPE 3:JLX |
82820-60A00-0FT |
— | ||
|
12
|
12
82820-60A00-Y27
HANDLE,FRONT DOOR OUT,L
TYPE 3:JLX |
82820-60A00-Y27 |
— | ||
|
12
|
12
82820-60A00-Y29
HANDLE,FRONT DOOR OUT,L
TYPE 3:JLX |
82820-60A00-Y29 |
— | ||
|
12
|
12
82820-60A00-Z01
HANDLE,FRONT DOOR OUT,L
TYPE 3:JLX |
82820-60A00-Z01 |
— | ||
| replacement | |||||
|
12
|
12
82820-60A00-5PK HANDLE,FRONT DOOR OUT,LTYPE 3:JLX |
82820-60A00-5PK |
US $169.60 |
||
|
12
|
12
82820-60AA0-1PU
Handle, door out lh
Germany:PRODUCT OF CANADA |
82820-60AA0-1PU |
— | ||
|
12
|
12
82820-60AA0-1PV
Handle, door out lh
Germany:PRODUCT OF CANADA |
82820-60AA0-1PV |
— | ||
|
12
|
12
82820-60AA0-1SC
Handle, door out lh
Germany:PRODUCT OF CANADA |
82820-60AA0-1SC |
— | ||
|
12
|
12
82820-60AA0-1SH
Handle, door out lh
Germany:PRODUCT OF CANADA |
82820-60AA0-1SH |
— | ||
|
12
|
12
82820-60AA0-1RZ
Handle, door out lh
Germany:PRODUCT OF CANADA |
82820-60AA0-1RZ |
— | ||
|
13
|
13
82816-60A00-000
RUBBER,STOP
|
82816-60A00-000 |
— | ||
|
14
|
14
82817-60A00-000 RING,SNAP |
82817-60A00-000 |
US $1.60 |
||
|
15
|
15
82818-60A00-000 JOINT |
82818-60A00-000 |
US $2.08 |
||
|
16
|
16
82973-60A01-5ER
KNOB,DOOR INSIDE LOCK
|
82973-60A01-5ER |
— | ||
| replacement | |||||
|
16
|
16
82973-60A01-5PK
KNOB,FR DR INSIDE LOCK
|
82973-60A01-5PK |
— | ||
|
16
|
16
82973-60A01-5PK
KNOB,FR DR INSIDE LOCK
<-82973-60A01-5ES |
82973-60A01-5PK |
— | ||
|
17
|
17
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
18
|
18
77591-75000-000 PAD |
77591-75000-000 |
US $2.28 |
||
|
19
|
19
83110-60A00-5ER
HANDLE,FR DOOR INSIDE,R
|
83110-60A00-5ER |
— | ||
|
19
|
19
83110-60A00-5ES HANDLE,FR DOOR INSIDE,R |
83110-60A00-5ES |
from US $32.74 |
||
|
20
|
20
83130-60A00-5ER HANDLE,FR DOOR INSIDE,L |
83130-60A00-5ER |
US $27.42 |
||
|
20
|
20
83130-60A00-5ES HANDLE,FR DOOR INSIDE,L |
83130-60A00-5ES |
from US $33.75 |
||
|
21
|
21
83116-60A00-000 SNAP,DR INSIDE HDL(NATURAL) |
83116-60A00-000 |
US $1.60 |
||
|
22
|
22
09148-06007-000 NUT |
09148-06007-000 |
from US $0.86 |
||
|
23
|
23
03121-05163-000
Screw
|
03121-05163-000 |
— | ||
| replacement | |||||
|
23
|
23
03121-0516A-000 SCREW |
03121-0516A-000 |
from US $0.80 |
||
|
24
|
24
83795-60A00-5ER
Cap,lock knob(brown)
|
83795-60A00-5ER |
— | ||
| replacements | |||||
|
24
|
24
83795-60A00-5PK
CAP,DR INSIDE LOCK KNOB
|
83795-60A00-5PK |
— | ||
|
24
|
24
83795-60A00-5ES CAP,INSIDE LOCK KNOB |
83795-60A00-5ES |
US $3.04 |
||
|
24
|
24
83795-60A00-5ES CAP,INSIDE LOCK KNOB |
83795-60A00-5ES |
US $3.04 |
||
|
25
|
25
82201-62A00-000
LATCH ASSY,FR DR,R
TYPE 1:JLX:LHD,(W/POWER DOOR LOCK) |
82201-62A00-000 |
— | ||
|
25
|
25
82201-61A00-000
ラッチアッシ,ドア,ライト
TYPE 1:JLX:RHD,(W/POWER DOOR LOCK) |
82201-61A00-000 |
— | ||
|
25
|
25
82201-66A00-000 LATCH ASSY,FR DR,RTYPE 2,TYPE 3:JLX,(W/POWER DOOR LOCK) |
82201-66A00-000 |
US $358.80 |
||
|
26
|
26
82202-61A00-000
LATCH ASSY,DR LOCK,L
TYPE 1:JLX:LHD,(W/POWER DOOR LOCK) |
82202-61A00-000 |
— | ||
|
26
|
26
82202-62A00-000
ラッチアッシ,ドア,レフト
TYPE 1:JLX:RHD,(W/POWER DOOR LOCK) |
82202-62A00-000 |
— | ||
|
26
|
26
82202-66A00-000 LATCH ASSY,FR DR,LTYPE 2,TYPE 3:JLX,(W/POWER DOOR LOCK) |
82202-66A00-000 |
US $358.80 |
||
|
27
|
27
09138-06026-000 SCREW(6X16)Screw, fender center JLX (W/POWER DOOR LOCK) |
09138-06026-000 |
from US $3.37 |
||
|
28
|
28
02122-56163-000
SCREW
JLX (W/POWER DOOR LOCK) |
02122-56163-000 |
— | ||
| replacement | |||||
|
28
|
28
02122-5616B-000 SCREWJLX (W/POWER DOOR LOCK) |
02122-5616B-000 |
US $0.80 |
||
