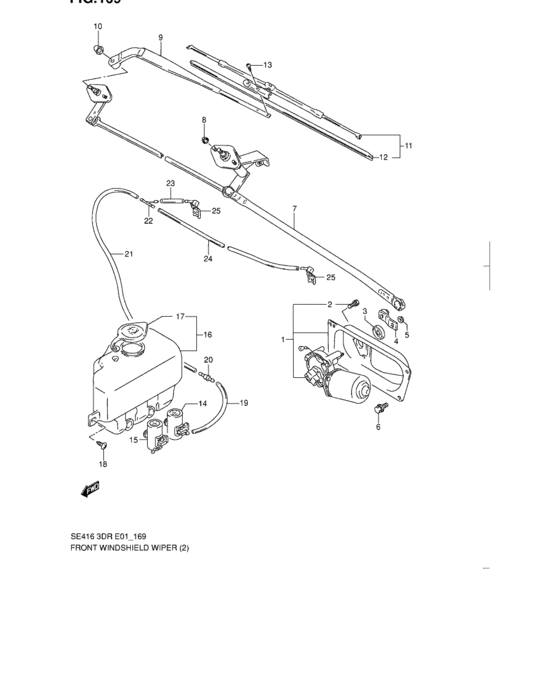

Fr windshield wiper (RHD:,Sinagpore,Barbados; ~TA01C-111847,~TA01V-114751) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38101-60A20-000
MOTOR&BRACKET ASSY,WIPER
|
38101-60A20-000 |
— | ||
|
2
|
2
01570-06123-000
Bolt
|
01570-06123-000 |
— | ||
| replacements | |||||
|
2
|
2
01570-0612B-000 BOLTBolt, upper |
01570-0612B-000 |
US $0.80 |
||
|
2
|
2
01570-0612A-000 BOLTBolt |
01570-0612A-000 |
from US $0.80 |
||
|
3
|
3
38147-84030-000 SEAL,WIPER MOTOR |
38147-84030-000 |
US $1.66 |
||
|
4
|
4
38101-60A20-000
MOTOR&BRACKET ASSY,WIPER
<-38174-60A20 |
38101-60A20-000 |
— | ||
|
5
|
5
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
6
|
6
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
7
|
7
38102-60A20-000
LINK ASSY,WIPER
|
38102-60A20-000 |
— | ||
|
8
|
8
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
9
|
9
38310-60A20-000
ARM ASSY,WIPER
TYPE 1 |
38310-60A20-000 |
— | ||
|
9
|
9
38310-56B20-000 ARM ASSY,WIPERTYPE 2 |
38310-56B20-000 |
US $58.14 |
||
|
10
|
10
08313-20083-000
Nut
|
08313-20083-000 |
— | ||
| replacements | |||||
|
10
|
10
08313-2008B-000 NUT |
08313-2008B-000 |
from US $3.94 |
||
|
10
|
10
08313-2008A-000 NUT |
08313-2008A-000 |
from US $0.91 |
||
|
11
|
11
38340-84010-000
BLADE ASSY,WIPER
TYPE 1 |
38340-84010-000 |
— | ||
|
11
|
11
38340-50F00-000 BLADE ASSY,WIPER,RTYPE 2,<-38340-56B20 |
38340-50F00-000 |
US $28.34 |
||
|
12
|
12
38346-84010-000
BLADE
|
38346-84010-000 |
— | ||
|
13
|
13
38319-75000-000 SCREW,WIPER BLADETYPE 1 |
38319-75000-000 |
US $2.40 |
||
|
14
|
14
38410-70B20-000 PUMP ASSY,WASHER FR |
38410-70B20-000 |
from US $81.11 |
||
|
15
|
15
38410-70B10-000 PUMP ASSY,WASHER RRW/REAR WASHER |
38410-70B10-000 |
US $115.92 |
||
|
16
|
16
38450-60A10-000
タンクアッシ,ウォッシャ
|
38450-60A10-000 |
— | ||
|
16
|
16
38450-61A10-000
TANK ASSY,WASHER
W/REAR WASHER |
38450-61A10-000 |
— | ||
|
17
|
17
38452-60A10-000 CAP,WASHER TANK |
38452-60A10-000 |
US $2.65 |
||
|
18
|
18
02142-06163-000
Screw
|
02142-06163-000 |
— | ||
| replacement | |||||
|
18
|
18
02142-0616A-000 SCREW |
02142-0616A-000 |
from US $0.76 |
||
|
19
|
19
38491-61A10-000 HOSE,WASHER L:2100 |
38491-61A10-000 |
US $5.44 |
||
|
20
|
20
38833-63A10-000 VALVE,WASHER HOSE |
38833-63A10-000 |
US $2.13 |
||
|
21
|
21
38491-61A10-000 HOSE,WASHER L:2100 |
38491-61A10-000 |
US $5.44 |
||
|
22
|
22
38496-71311-000 CONNECTOR,THREE WAY |
38496-71311-000 |
US $4.16 |
||
|
23
|
23
38491-61A10-000 HOSE,WASHER L:2100 |
38491-61A10-000 |
US $5.44 |
||
|
24
|
24
38491-61A10-000 HOSE,WASHER L:2100 |
38491-61A10-000 |
US $5.44 |
||
|
25
|
25
38480-60A01-000 NOZZLE,WASHER |
38480-60A01-000 |
US $24.80 |
||
