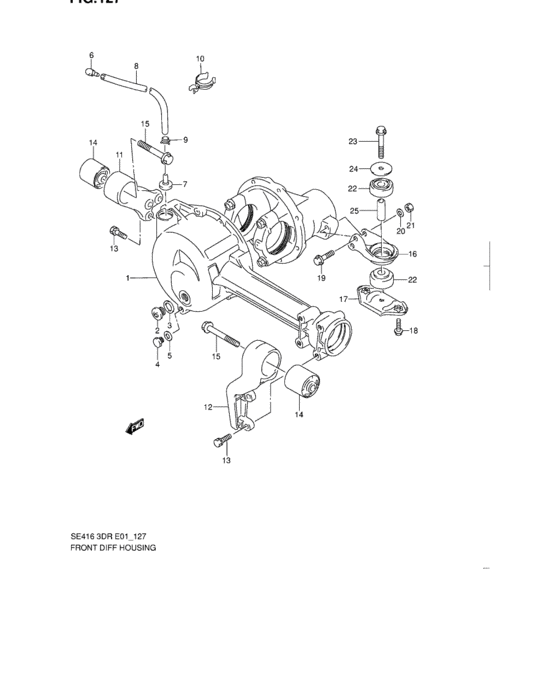

Front diff housing (FRONT DIFF HOUSING) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27611-60A01-000
ハウジング,ディファレンシャル
->27611-60A10,USED WITH 09246-16010 |
27611-60A01-000 |
— | ||
| replacements | |||||
|
1
|
1
27611-60A11-000
HOUSING,DIFFERENTIAL
->27611-60A10,USED WITH 09246-16010 |
27611-60A11-000 |
— | ||
|
1
|
1
09246-16010-000 PLUG->27611-60A10,USED WITH 09246-16010 |
09246-16010-000 |
US $4.46 |
||
|
1
|
1
09246-16021-000 Plug,t/m Oil Drain->27611-60A10,USED WITH 09246-16010 |
09246-16021-000 |
from US $4.01 |
||
|
1
|
1
27611-60A10-000
ハウジング,ディファレンシャル
TA01C-100726~,TA01V-102030~,JSAETA01C00116753~,JSAETA01V00112828~,2S3TA01C M6401565~ |
27611-60A10-000 |
— | ||
| replacements | |||||
|
1
|
1
27611-60A11-000
HOUSING,DIFFERENTIAL
TA01C-100726~,TA01V-102030~,JSAETA01C00116753~,JSAETA01V00112828~,2S3TA01C M6401565~ |
27611-60A11-000 |
— | ||
|
1
|
1
09246-16010-000 PLUGTA01C-100726~,TA01V-102030~,JSAETA01C00116753~,JSAETA01V00112828~,2S3TA01C M6401565~ |
09246-16010-000 |
US $4.46 |
||
|
1
|
1
09246-16021-000 Plug,t/m Oil DrainTA01C-100726~,TA01V-102030~,JSAETA01C00116753~,JSAETA01V00112828~,2S3TA01C M6401565~ |
09246-16021-000 |
from US $4.01 |
||
|
2
|
2
09248-20003-000 PLUG |
09248-20003-000 |
from US $2.59 |
||
|
3
|
3
09168-20003-000 GASKET(20X27X2)Gasket (20x27x2) |
09168-20003-000 |
from US $2.28 |
||
|
4
|
4
09247-12003-000 PLUGPlug (12x13) |
09247-12003-000 |
US $0.96 |
||
|
4
|
4
09246-16010-000 PLUGTA01C-100726~,TA01V-102030~,JSAETA01C00116753~,JSAETA01V00112828~,2S3TA01C M6401565~ |
09246-16010-000 |
US $4.46 |
||
|
5
|
5
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket |
09168-12002-000 |
from US $0.76 |
||
|
6
|
6
46543-60A00-000
プラグ,ブリーザ
<-24820-60A00 |
46543-60A00-000 |
— | ||
| replacement | |||||
|
6
|
6
27991-65D01-000 PLUG,BREATHER<-24820-60A00 |
27991-65D01-000 |
from US $1.92 |
||
|
7
|
7
27620-85400-000 UNION,DIFF FR BREATHER |
27620-85400-000 |
US $5.67 |
||
|
8
|
8
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600->480 |
09355-70125-600 |
from US $5.51 |
||
| replacement | |||||
|
8
|
8
44421-12FR0-000 HOSEL:600->480 |
44421-12FR0-000 |
from US $16.64 |
||
|
8
|
8
09352-70113-600
HOSE(7X11X600)
L:600->480,TA01C-111152~,TA01V-112782~,JSAETA01C00165108~,JSAETA01V00143981~,2S3TA01C N6405095~,2S3TA01V 00051734~ |
09352-70113-600 |
— | ||
| replacement | |||||
|
8
|
8
09352-70119-600 Hose(7X11X600)L:600->480,TA01C-111152~,TA01V-112782~,JSAETA01C00165108~,JSAETA01V00143981~,2S3TA01C N6405095~,2S3TA01V 00051734~ |
09352-70119-600 |
from US $4.64 |
||
|
9
|
9
09401-11407-000
CLIP
~TA01C-100391,~TA01V-100606,~JSAETA01C00104132,~JSAETA01V00103626,~2S3TA01C M6401565 |
09401-11407-000 |
— | ||
| replacement | |||||
|
9
|
9
09401-11415-000 CLIP~TA01C-100391,~TA01V-100606,~JSAETA01C00104132,~JSAETA01V00103626,~2S3TA01C M6401565 |
09401-11415-000 |
from US $1.06 |
||
|
10
|
10
09408-00063-000 CLAMP |
09408-00063-000 |
US $30.20 |
||
|
10
|
10
09408-00109-000
Clamp
TA01C-111152~,TA01V-112782~,JSAETA01C00165108~,JSAETA01V00143981~,2S3TA01C N6405095~,2S3TA01V 00051734~ |
09408-00109-000 |
— | ||
|
11
|
11
27661-60A01-000 BRACKET,DIFF MOUNT,R |
27661-60A01-000 |
US $48.21 |
||
|
12
|
12
27665-60A01-000 BRACKET,DIFF MOUNT,L |
27665-60A01-000 |
US $87.22 |
||
|
13
|
13
01570-10303-000
Bolt
|
01570-10303-000 |
— | ||
| replacement | |||||
|
13
|
13
01570-1030A-000 Bolt |
01570-1030A-000 |
from US $1.12 |
||
|
14
|
14
27550-60A00-000 MOUNTING,DIFF |
27550-60A00-000 |
US $92 |
||
|
15
|
15
09103-12033-000 BOLT(12X84) |
09103-12033-000 |
from US $4.39 |
||
|
16
|
16
27670-60A00-000 BRACKET,DIFF MOUNT RR NO.1 |
27670-60A00-000 |
US $26.31 |
||
|
17
|
17
27675-60A01-000 BRACKET,DIFF MOUNT RR NO.2 |
27675-60A01-000 |
US $15.79 |
||
|
18
|
18
01570-10203-000
ボルト
|
01570-10203-000 |
— | ||
| replacement | |||||
|
18
|
18
01570-1020A-000 Bolt |
01570-1020A-000 |
US $0.96 |
||
|
19
|
19
01550-10553-000
Bolt
|
01550-10553-000 |
— | ||
| replacement | |||||
|
19
|
19
01550-1055B-000 Bolt |
01550-1055B-000 |
from US $1.44 |
||
|
20
|
20
08321-01103-000
Washer
|
08321-01103-000 |
— | ||
| replacements | |||||
|
20
|
20
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
20
|
20
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
21
|
21
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
21
|
21
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
21
|
21
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
22
|
22
27561-60A01-000 MOUNTING,DIFF RR |
27561-60A01-000 |
from US $9.99 |
||
|
23
|
23
01550-10653-000
Bolt
|
01550-10653-000 |
— | ||
| replacement | |||||
|
23
|
23
01550-1065A-000 BOLT |
01550-1065A-000 |
US $1.60 |
||
|
24
|
24
09160-10104-000 WASHER(10.5X50X3.2) |
09160-10104-000 |
from US $3.74 |
||
|
25
|
25
09180-10117-000 SPACER(10.9X17.3X46.8) |
09180-10117-000 |
from US $3.96 |
||
