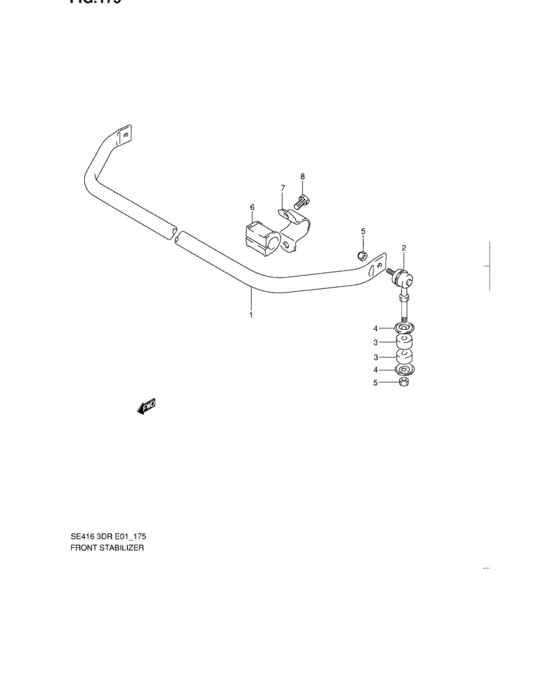

Front stabilizer (FRONT STABILIZER) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42311-60A00-000 BAR,STABILIZER FR |
42311-60A00-000 |
from US $142.27 |
||
|
2
|
2
42420-60A00-000
ジョイント,スタビライザボール
|
42420-60A00-000 |
— | ||
| replacement | |||||
|
2
|
2
42420-65D00-000 JOINT,STAB BALL |
42420-65D00-000 |
US $57.60 |
||
|
3
|
3
09320-10024-000 CUSHION |
09320-10024-000 |
from US $3.04 |
||
|
4
|
4
09165-10002-000 WASHER |
09165-10002-000 |
from US $2.08 |
||
|
5
|
5
09159-10056-000 NUT |
09159-10056-000 |
US $1.12 |
||
|
6
|
6
42412-60A00-000 BUSHING,STAB BAR MOUNT |
42412-60A00-000 |
from US $6.17 |
||
|
7
|
7
42411-60A00-000 BRACKET,STABILIZER BAR MOUNT |
42411-60A00-000 |
US $7.76 |
||
|
8
|
8
01570-08203-000
Bolt
|
01570-08203-000 |
— | ||
| replacements | |||||
|
8
|
8
01570-0820B-000 Bolt |
01570-0820B-000 |
US $17.30 |
||
|
8
|
8
01570-0820A-000 BOLT |
01570-0820A-000 |
from US $0.96 |
||
