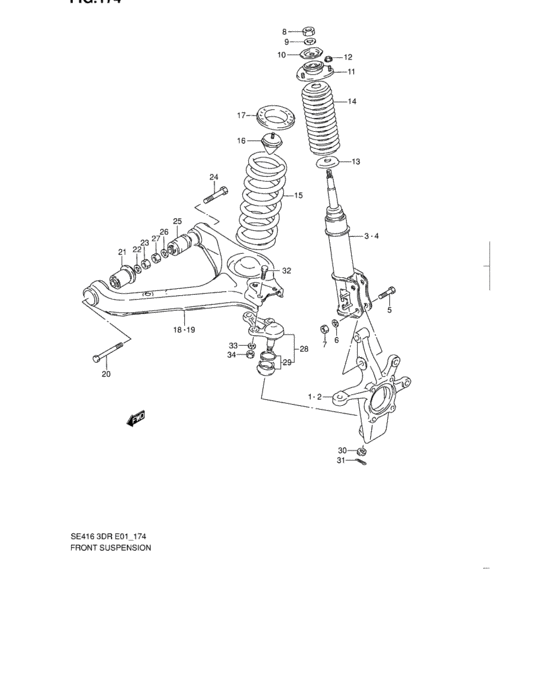

Front suspension (FRONT SUSPENSION) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45111-60A00-000 KNUCKLE,STEERING,R |
45111-60A00-000 |
US $320.16 |
||
|
2
|
2
45151-60A00-000 KNUCKLE,STEERING,L |
45151-60A00-000 |
US $320.16 |
||
|
3
|
3
41601-60A00-000 STRUT ASSY,FR SUSPENSION,R |
41601-60A00-000 |
US $241.04 |
||
|
3
|
3
41601-60A10-000 STRUT ASSY,FR SUSPENSION,RGermany:PRODUCT OF CANADA |
41601-60A10-000 |
US $246.56 |
||
|
4
|
4
41602-60A00-000 STRUT ASSY,FR SUSPENSION,L |
41602-60A00-000 |
US $241.04 |
||
|
4
|
4
41602-60A10-000 STRUT ASSY,FR SUSPENSION,LGermany:PRODUCT OF CANADA |
41602-60A10-000 |
US $246.56 |
||
|
5
|
5
09100-12057-000 BOLT(12X61) |
09100-12057-000 |
from US $2.72 |
||
|
6
|
6
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
6
|
6
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
7
|
7
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
7
|
7
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
8
|
8
08310-00143-000
Nut
|
08310-00143-000 |
— | ||
| replacement | |||||
|
8
|
8
08310-0014A-000 NUT |
08310-0014A-000 |
from US $0.91 |
||
|
9
|
9
08321-01143-000
Washer
|
08321-01143-000 |
— | ||
| replacement | |||||
|
9
|
9
08321-0114A-000 WASHER,LOCK |
08321-0114A-000 |
from US $0.80 |
||
|
10
|
10
41841-60A00-000
シート,フロントストラット,アッパ
|
41841-60A00-000 |
— | ||
| replacement | |||||
|
10
|
10
41841-65D00-000 SEAT,FRONT STRUT UPPER |
41841-65D00-000 |
US $15.97 |
||
|
11
|
11
41810-60A01-000 SUPPORT,FRONT STRUT |
41810-60A01-000 |
from US $56.86 |
||
|
12
|
12
08316-20083-000
Nut
|
08316-20083-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-2008A-000 NUT |
08316-2008A-000 |
from US $0.80 |
||
|
13
|
13
41842-60A00-000 SEAT,FRONT STRUT LOWER |
41842-60A00-000 |
US $7.40 |
||
|
14
|
14
41850-60A00-000 BOOT,FR STRUT DUST |
41850-60A00-000 |
US $57.01 |
||
|
16
|
16
42110-60A10-000 STOPPER,BUMP |
42110-60A10-000 |
from US $18.72 |
||
|
17
|
17
41211-60A00-000 SEAT,COIL SPRING RUBBER |
41211-60A00-000 |
from US $11.63 |
||
|
18
|
18
45200-60830-000 ARM SET,FR SPNSN,R |
45200-60830-000 |
US $454.08 |
||
|
19
|
19
45200-60840-000 ARM SET,FR SPNSN,L |
45200-60840-000 |
US $436.48 |
||
|
20
|
20
09103-12048-000 BOLT(12X90) |
09103-12048-000 |
US $8.48 |
||
|
20
|
20
09103-12044-000 BOLT(12X87)TA01C-113012~,TA01V-118906~,JSAETA01C00170022~,JSAETA01V00149446~,JSAETA02C01100011~,JSAETA02V01100011~ |
09103-12044-000 |
from US $2.48 |
||
|
21
|
21
09319-12044-000 BUSHING(12.2X45X65) |
09319-12044-000 |
from US $40.05 |
||
|
22
|
22
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
22
|
22
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
23
|
23
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
23
|
23
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
|
24
|
24
09100-14002-000 BOLT(14X94) |
09100-14002-000 |
from US $6.55 |
||
|
25
|
25
09319-14007-000 BUSHING(14.2X42X65) |
09319-14007-000 |
from US $21.60 |
||
|
26
|
26
08321-01143-000
Washer
|
08321-01143-000 |
— | ||
| replacement | |||||
|
26
|
26
08321-0114A-000 WASHER,LOCK |
08321-0114A-000 |
from US $0.80 |
||
|
27
|
27
08310-00143-000
Nut
|
08310-00143-000 |
— | ||
| replacement | |||||
|
27
|
27
08310-0014A-000 NUT |
08310-0014A-000 |
from US $0.91 |
||
|
28
|
28
45700-60A00-000
ジョイントアッシ,フロントロアアームボール
|
45700-60A00-000 |
— | ||
| replacements | |||||
|
28
|
28
45700-60A01-000 JOINT ASSY,FR LWR ARM BALL |
45700-60A01-000 |
US $116.29 |
||
|
28
|
28
09159-14029-000 NUT |
09159-14029-000 |
from US $2.05 |
||
|
29
|
29
45706-60A00-000
SEAL SET,SPNSN ARM
|
45706-60A00-000 |
— | ||
| replacements | |||||
|
29
|
29
45706-60A01-000
Seal Set,spnsn Arm
|
45706-60A01-000 |
— | ||
|
29
|
29
45700-60810-000 Seal Set,suspension Arm |
45700-60810-000 |
US $23.20 |
||
|
30
|
30
08314-40143-000
Nut
|
08314-40143-000 |
— | ||
| replacement | |||||
|
30
|
30
08314-4014B-000 NUTNut, hub |
08314-4014B-000 |
from US $6.78 |
||
|
31
|
31
04111-30308-000
30 x 30 cotter
|
04111-30308-000 |
— | ||
| replacement | |||||
|
31
|
31
04111-3030A-000 PIN |
04111-3030A-000 |
from US $0.76 |
||
|
32
|
32
09100-12055-000 BOLT(12X40) |
09100-12055-000 |
from US $1.62 |
||
|
33
|
33
08321-01123-000
Washer
|
08321-01123-000 |
— | ||
| replacement | |||||
|
33
|
33
08321-0112A-000 WASHER,LOCK |
08321-0112A-000 |
from US $0.76 |
||
|
34
|
34
08310-00123-000
Nut
|
08310-00123-000 |
— | ||
| replacement | |||||
|
34
|
34
08310-0012A-000 NUT |
08310-0012A-000 |
from US $0.76 |
||
