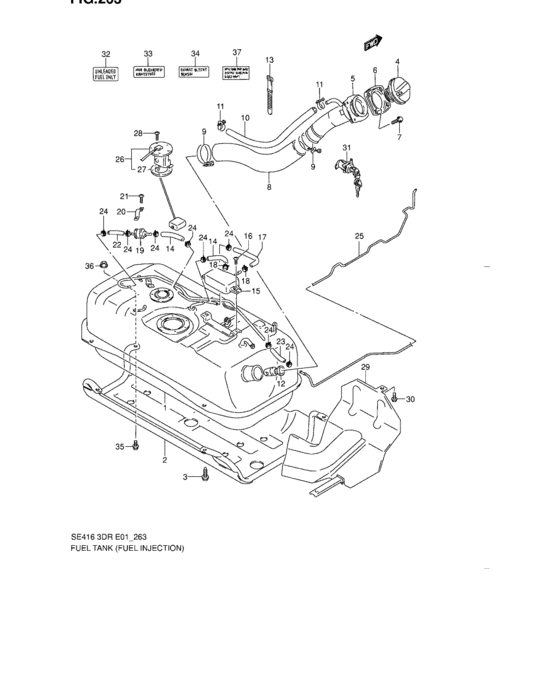

Fuel tank (W/FUEL INJECTION & Saudi Arabia CARB) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-65A11-000
タンクアッシ,フューエル
TYPE 1,W/FUEL INJECTION,<-89101-61A10 |
89101-65A11-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-65A12-000 TANK ASSY,FUELTYPE 1,W/FUEL INJECTION,<-89101-61A10 |
89101-65A12-000 |
US $1,616 |
||
|
1
|
1
89101-64A11-000
Tank assy, fuel
TYPE 1:W/CARB,Saudi Arabia,<-89101-60A10 |
89101-64A11-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-64A50-000
TANK ASSY,FUEL
TYPE 1:W/CARB,Saudi Arabia,<-89101-60A10 |
89101-64A50-000 |
— | ||
|
2
|
2
89320-60A00-000
PROTECTOR,FUEL TANK
|
89320-60A00-000 |
— | ||
|
2
|
2
89320-66A01-000
PROTECTOR,FUEL TANK
SEE NOTE |
89320-66A01-000 |
— | ||
|
3
|
3
09118-10052-000 BOLT(10X30) |
09118-10052-000 |
from US $1.44 |
||
|
4
|
4
89260-85502-000
Cap assy, fuel tiller
|
89260-85502-000 |
— | ||
| replacement | |||||
|
4
|
4
89260-50J00-000 CAP ASSY,FUEL FILLER |
89260-50J00-000 |
US $19.80 |
||
|
4
|
4
89260-65AB0-000
Cap assy, filler
Germany:PRODUCT OF CANADA |
89260-65AB0-000 |
— | ||
| replacement | |||||
|
4
|
4
89260-50J00-000 CAP ASSY,FUEL FILLERGermany:PRODUCT OF CANADA |
89260-50J00-000 |
US $19.80 |
||
|
5
|
5
89201-60A11-000
Neck assy, fuel filler
W/INLET VALVE |
89201-60A11-000 |
— | ||
| replacement | |||||
|
5
|
5
89201-60A13-000
NECK ASSY,FUEL FILLER
W/INLET VALVE |
89201-60A13-000 |
— | ||
|
5
|
5
89201-60A01-000
ネックアッシ,フューエルフィラ
|
89201-60A01-000 |
— | ||
| replacement | |||||
|
5
|
5
89201-60A03-000 NECK ASSY,FUEL FILLER |
89201-60A03-000 |
US $106.35 |
||
|
6
|
6
89285-82000-000
パッキング,フューエルフィラ
|
89285-82000-000 |
— | ||
| replacement | |||||
|
6
|
6
89285-75F00-000 PACKING,FUEL FILLER |
89285-75F00-000 |
US $5.17 |
||
|
7
|
7
09116-05014-000 BOLT(5X20) |
09116-05014-000 |
US $1.82 |
||
|
8
|
8
89241-60A00-000
ホース,フューエルタンクフィラ
|
89241-60A00-000 |
— | ||
| replacement | |||||
|
8
|
8
89241-60A20-000 HOSE,FUEL TANK FILLER |
89241-60A20-000 |
US $206.08 |
||
|
8
|
8
89241-60A10-000
HOSE,FUEL TANK FILLER
Saudi Arabia,Germany:PRODUCT OF CANADA |
89241-60A10-000 |
— | ||
|
8
|
8
89241-66A00-000
HOSE,FUEL TANK FILLER
Brazil |
89241-66A00-000 |
— | ||
|
9
|
9
09400-52312-000 CLAMP |
09400-52312-000 |
US $20.20 |
||
|
9
|
9
09402-57511-000 CLAMPBrazil,Saudi Arabia,Germany:PRODUCT OF CANADA |
09402-57511-000 |
from US $6.24 |
||
|
10
|
10
09355-13207-600 HOSE(13X20X600)Hose, breather L:600->520 |
09355-13207-600 |
from US $11.63 |
||
|
10
|
10
89291-60A10-000
Hose, fuel tank breather
Saudi Arabia,Germany:PRODUCT OF CANADA |
89291-60A10-000 |
— | ||
|
11
|
11
09400-22312-000 CLAMP |
09400-22312-000 |
from US $1.82 |
||
|
11
|
11
09402-22501-000
Clamp
Saudi Arabia,Germany:PRODUCT OF CANADA |
09402-22501-000 |
— | ||
| replacement | |||||
|
11
|
11
09402-22511-000 CLAMPSaudi Arabia,Germany:PRODUCT OF CANADA |
09402-22511-000 |
from US $10.56 |
||
|
12
|
12
89280-60A00-000
バルブ,フューエルタンク,インレット
|
89280-60A00-000 |
— | ||
| replacement | |||||
|
12
|
12
89280-60A01-000 VALVE,FUEL TANK INLET |
89280-60A01-000 |
US $26.40 |
||
|
13
|
13
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $2.08 |
||
|
14
|
14
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->135 |
09355-54115-600 |
from US $7.20 |
||
|
15
|
15
89411-60A01-000
SEPARATOR,FUEL AND VAPOR
|
89411-60A01-000 |
— | ||
|
16
|
16
02142-05083-000
Screw
|
02142-05083-000 |
— | ||
| replacement | |||||
|
16
|
16
02142-0508A-000 SCREWScrew, cap |
02142-0508A-000 |
from US $0.76 |
||
|
17
|
17
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->125 |
09355-54115-600 |
from US $7.20 |
||
|
18
|
18
09401-11412-000 CLIP |
09401-11412-000 |
US $28.30 |
||
|
19
|
19
85451-75100-000 VALVE,2WAY CHECKValve, check |
85451-75100-000 |
from US $30.40 |
||
|
20
|
20
89485-60A00-000
クランプ,チェックバルブ
|
89485-60A00-000 |
— | ||
| replacement | |||||
|
20
|
20
89485-82000-000 CLAMP,CHECK VALVE |
89485-82000-000 |
US $2.24 |
||
|
21
|
21
02112-05083-000
Screw
|
02112-05083-000 |
— | ||
| replacement | |||||
|
21
|
21
02112-0508A-000 SCREW |
02112-0508A-000 |
from US $0.80 |
||
|
22
|
22
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->100 |
09355-54115-600 |
from US $7.20 |
||
|
23
|
23
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600->135 |
09355-54115-600 |
from US $7.20 |
||
|
24
|
24
09401-11413-000 CLIP |
09401-11413-000 |
from US $0.96 |
||
|
25
|
25
89430-61A00-000
PIPE,EVAPORATION MAIN
TYPE 1 |
89430-61A00-000 |
— | ||
|
25
|
25
89430-61A10-000
パイプ,エバポレーションメイン
Germany:PRODUCT OF CANADA |
89430-61A10-000 |
— | ||
| replacement | |||||
|
25
|
25
89430-61A11-000 PIPE,EVAPORATION MAINGermany:PRODUCT OF CANADA |
89430-61A11-000 |
US $69.60 |
||
|
26
|
26
34810-60A11-000 GAUGE ASSY,FUEL LEVEL<-34810-60A01 |
34810-60A11-000 |
from US $78.19 |
||
|
27
|
27
34825-67012-000 GASKET |
34825-67012-000 |
US $1.60 |
||
|
27
|
27
34825-67020-000 GASKETSaudi Arabia,TA01C-100150~,TA01V-100202~,Germany:PRODUCT OF CANADA |
34825-67020-000 |
US $5.28 |
||
|
28
|
28
09136-05045-000 SCREW(5X10) |
09136-05045-000 |
US $0.96 |
||
|
29
|
29
89311-66A10-000 PROTECTOR,FUEL FILLER HOSE |
89311-66A10-000 |
US $71.44 |
||
|
30
|
30
09132-06008-000 SCREW(6X12) |
09132-06008-000 |
US $12.90 |
||
|
31
|
31
89300-60802-000 CYLINDER,FUEL LID LOCKCylinder, fuel lid lock |
89300-60802-000 |
US $76.80 |
||
|
32
|
32
86932-73060-000 LABEL,FUEL CAUTIONLabel, fuel caution ,Chile,Switzerland,Belgium,5,Italy,,Hong Kong,Iceland |
86932-73060-000 |
US $1.52 |
||
|
33
|
33
79115-83000-000
Emblem, fuel caution
Germany,Austria,Czech Republic,TYPE 2:Germany,PRODUCT OF CANADA |
79115-83000-000 |
— | ||
|
34
|
34
79115-83011-000
Label, fuel caution
Finland,Norway,Sweden,Denmark |
79115-83011-000 |
— | ||
|
35
|
35
09118-08128-000 BOLT(8X16)Bolt, front fender, front TA01C-100989~,TA01V-102911~,JSAETA01C00120451~,JSAETA01V00115606~,2S3TA01C M6401565~ |
09118-08128-000 |
US $1.28 |
||
|
36
|
36
08316-20083-000
Nut
TA01C-100989~,TA01V-102911~,JSAETA01C00120451~,JSAETA01V00115606~,2S3TA01C M6401565~ |
08316-20083-000 |
— | ||
| replacement | |||||
|
36
|
36
08316-2008A-000 NUTTA01C-100989~,TA01V-102911~,JSAETA01C00120451~,JSAETA01V00115606~,2S3TA01C M6401565~ |
08316-2008A-000 |
from US $0.80 |
||
|
37
|
37
79115-70A00-000
Label, fuel limitation
TYPE 1:Germany,PRODUCT OF CANADA |
79115-70A00-000 |
— | ||
