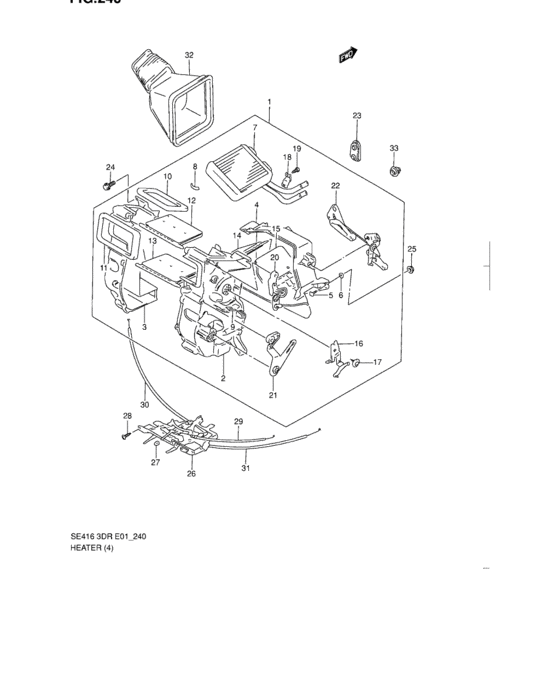

Heater (RHD:) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-64A00-000
Heater assy
N/REAR DUCT,->74100-64A21,USED WITH 74911-64A00,~TA01C-111956,~TA01V-115266,~JSAETA01C00167415,~JSAETA01V00146653 |
74100-64A00-000 |
— | ||
| replacements | |||||
|
1
|
1
74100-64A21-000 HEATER ASSYN/REAR DUCT,->74100-64A21,USED WITH 74911-64A00,~TA01C-111956,~TA01V-115266,~JSAETA01C00167415,~JSAETA01V00146653 |
74100-64A21-000 |
US $531.52 |
||
|
1
|
1
74911-64A00-000
CAP,HEATER
N/REAR DUCT,->74100-64A21,USED WITH 74911-64A00,~TA01C-111956,~TA01V-115266,~JSAETA01C00167415,~JSAETA01V00146653 |
74911-64A00-000 |
— | ||
|
1
|
1
74100-64A21-000 HEATER ASSY |
74100-64A21-000 |
US $531.52 |
||
|
1
|
1
74100-64A40-000
Heater assy
:TYPE 1,->74100-64A61,USED WITH 74911-64A00 |
74100-64A40-000 |
— | ||
| replacement | |||||
|
1
|
1
74911-64A00-000
CAP,HEATER
:TYPE 1,->74100-64A61,USED WITH 74911-64A00 |
74911-64A00-000 |
— | ||
|
1
|
1
74100-64A61-000
Heater assy
:TYPE 2,Thailand:TYPE 3,Hong Kong:TA01C-112526~,TA01V-117253~ |
74100-64A61-000 |
— | ||
|
2
|
2
74111-64A00-000
Case, heater
N/REAR DUCT,~TA01C-111956,~TA01V-115266,~JSAETA01C00167415,~JSAETA01V00146653 |
74111-64A00-000 |
— | ||
|
2
|
2
74111-64A21-000
CASE,HEATER,R
|
74111-64A21-000 |
— | ||
|
3
|
3
74112-64A00-000
Case, heater
N/REAR DUCT,~TA01C-111956,~TA01V-115266,~JSAETA01C00167415,~JSAETA01V00146653 |
74112-64A00-000 |
— | ||
|
3
|
3
74112-64A20-000
CASE,HEATER
|
74112-64A20-000 |
— | ||
|
4
|
4
74113-60A00-000
CASE,HEATER
|
74113-60A00-000 |
— | ||
|
4
|
4
74113-64A40-000
CASE,HTR
:TYPE 2,Thailand:TYPE 3,Hong Kong:TA01C-112526~,TA01V-117253~ |
74113-64A40-000 |
— | ||
|
5
|
5
74115-64A00-000 Bolt |
74115-64A00-000 |
US $2.72 |
||
|
6
|
6
74116-60A00-000 PACKIN |
74116-60A00-000 |
US $1.44 |
||
|
7
|
7
74120-64A00-000
CORE,HTR
|
74120-64A00-000 |
— | ||
|
8
|
8
74133-82000-000 CLAMP,CASE |
74133-82000-000 |
US $2.91 |
||
|
9
|
9
74151-70D01-000 CLAMP,CONTROL WIRE |
74151-70D01-000 |
US $4.12 |
||
|
10
|
10
74262-60A00-000
パッキン
|
74262-60A00-000 |
— | ||
| replacement | |||||
|
10
|
10
74163-84101-000 PACKING |
74163-84101-000 |
from US $7.90 |
||
|
11
|
11
74262-60A00-000
パッキン
|
74262-60A00-000 |
— | ||
| replacement | |||||
|
11
|
11
74163-84101-000 PACKING |
74163-84101-000 |
from US $7.90 |
||
|
12
|
12
74171-60A00-000
DAMPER
|
74171-60A00-000 |
— | ||
|
13
|
13
74172-64A00-000
DAMPER
|
74172-64A00-000 |
— | ||
|
14
|
14
74173-60A10-000
DAMPER
|
74173-60A10-000 |
— | ||
|
15
|
15
74174-60A00-000
DAMPER
|
74174-60A00-000 |
— | ||
|
16
|
16
74176-64A01-000
LINK,CONTROL
|
74176-64A01-000 |
— | ||
|
17
|
17
74183-82005-000 SCREW,LINK |
74183-82005-000 |
US $1.73 |
||
|
18
|
18
74199-60A00-000
CLAMP
|
74199-60A00-000 |
— | ||
|
19
|
19
03112-05123-000
Screw
|
03112-05123-000 |
— | ||
| replacement | |||||
|
19
|
19
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
20
|
20
74170-64A00-000
LEVER ASSY,VENT
|
74170-64A00-000 |
— | ||
|
21
|
21
74180-64A00-000
LEVER ASSY,HEAT
|
74180-64A00-000 |
— | ||
|
22
|
22
74190-64A00-000
Lever assy,temp
|
74190-64A00-000 |
— | ||
|
23
|
23
74812-82030-000 GROMMET,HTR |
74812-82030-000 |
US $13.60 |
||
|
24
|
24
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
24
|
24
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
25
|
25
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
26
|
26
74400-60A00-000
Lever assy,htr control
|
74400-60A00-000 |
— | ||
|
27
|
27
74417-60A00-000 KNOB,CONTROL LEVER |
74417-60A00-000 |
US $1.60 |
||
|
28
|
28
03141-05163-000
Screw
|
03141-05163-000 |
— | ||
| replacement | |||||
|
28
|
28
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
29
|
29
74512-60A01-000
CABLE,HOT-COOL L:400
W/HEATER,BLUE |
74512-60A01-000 |
— | ||
|
30
|
30
74513-60A02-000 CABLE,FRESH-CRCLT L:823GRAY |
74513-60A02-000 |
US $5.67 |
||
|
31
|
31
74514-64A10-000 CABLE,MODE CONTROLW/HETER,GRAY |
74514-64A10-000 |
US $3.94 |
||
|
32
|
32
74620-60A00-000
DUCT,HEATER
N/AIR CON |
74620-60A00-000 |
— | ||
|
33
|
33
09250-10016-000 CAP(OD:16.2)N/HEATER |
09250-10016-000 |
US $9.90 |
||
