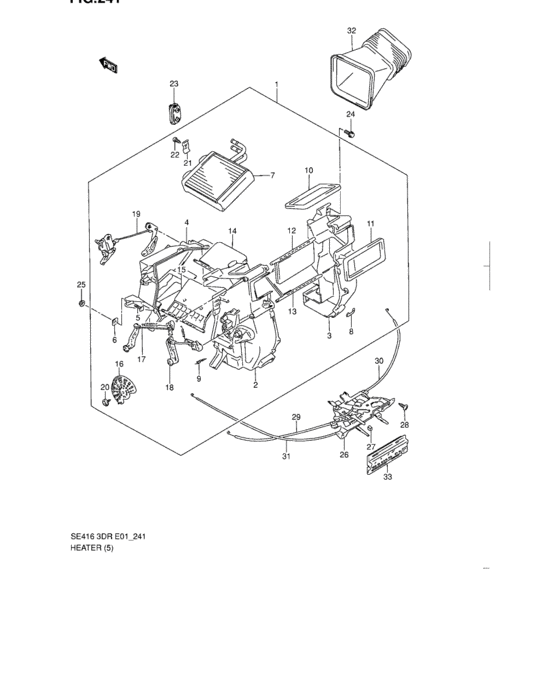

Heater (Germany:PRODUCT OF CANADA) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-60A30-000
HEATER ASSY
TYPE 1 |
74100-60A30-000 |
— | ||
|
1
|
1
74100-60A10-000
Heater assy
TYPE 2,->74100-60A32,USED WITH 74911-64A00 |
74100-60A10-000 |
— | ||
| replacements | |||||
|
1
|
1
74100-60A30-000
HEATER ASSY
TYPE 2,->74100-60A32,USED WITH 74911-64A00 |
74100-60A30-000 |
— | ||
|
1
|
1
74911-64A00-000
CAP,HEATER
TYPE 2,->74100-60A32,USED WITH 74911-64A00 |
74911-64A00-000 |
— | ||
|
2
|
2
74111-60A30-000
Case, heater
TYPE 1 |
74111-60A30-000 |
— | ||
|
2
|
2
74111-60A10-000
Heater box,r/h
TYPE 2 |
74111-60A10-000 |
— | ||
|
3
|
3
74112-60A32-000
Case, heater
TYPE 1 |
74112-60A32-000 |
— | ||
|
3
|
3
74112-60A10-000
Heater box,l/h
TYPE 2 |
74112-60A10-000 |
— | ||
|
4
|
4
74113-60A11-000
Case, heater
|
74113-60A11-000 |
— | ||
| replacements | |||||
|
4
|
4
74113-60A13-000 CASE,HTR |
74113-60A13-000 |
US $60.35 |
||
|
4
|
4
74115-64A00-000 Bolt |
74115-64A00-000 |
US $2.72 |
||
|
4
|
4
74116-60A00-000 PACKIN |
74116-60A00-000 |
US $1.44 |
||
|
5
|
5
74115-64A00-000 Bolt |
74115-64A00-000 |
US $2.72 |
||
|
6
|
6
74116-60A00-000 PACKIN |
74116-60A00-000 |
US $1.44 |
||
|
7
|
7
74120-64A10-000 CORE,HTR |
74120-64A10-000 |
US $506.88 |
||
|
8
|
8
74133-82000-000 CLAMP,CASE |
74133-82000-000 |
US $2.91 |
||
|
9
|
9
74151-85000-000 CLAMP,LOCK |
74151-85000-000 |
US $3.72 |
||
|
10
|
10
74262-60A00-000
パッキン
|
74262-60A00-000 |
— | ||
| replacement | |||||
|
10
|
10
74163-84101-000 PACKING |
74163-84101-000 |
from US $7.90 |
||
|
11
|
11
74262-60A00-000
パッキン
|
74262-60A00-000 |
— | ||
| replacement | |||||
|
11
|
11
74163-84101-000 PACKING |
74163-84101-000 |
from US $7.90 |
||
|
12
|
12
74171-60A00-000
DAMPER
|
74171-60A00-000 |
— | ||
|
13
|
13
74172-60A00-000
ダンパ
|
74172-60A00-000 |
— | ||
|
14
|
14
74173-60A10-000
DAMPER
|
74173-60A10-000 |
— | ||
|
15
|
15
74174-60A10-000
DAMPER
|
74174-60A10-000 |
— | ||
|
16
|
16
74176-60A11-000
LEVER,CONT
|
74176-60A11-000 |
— | ||
|
17
|
17
74170-60A10-000
Lever, control
|
74170-60A10-000 |
— | ||
|
18
|
18
74180-60A11-000
Plate
|
74180-60A11-000 |
— | ||
|
19
|
19
74190-60A10-000
Lever assy,temp
|
74190-60A10-000 |
— | ||
|
20
|
20
74183-82005-000 SCREW,LINK |
74183-82005-000 |
US $1.73 |
||
|
21
|
21
74199-60A11-000 CLAMP,PIPING |
74199-60A11-000 |
US $10.82 |
||
|
22
|
22
03112-05123-000
Screw
|
03112-05123-000 |
— | ||
| replacement | |||||
|
22
|
22
03111-0512A-000 SCREW |
03111-0512A-000 |
from US $0.80 |
||
|
23
|
23
74812-82030-000 GROMMET,HTR |
74812-82030-000 |
US $13.60 |
||
|
24
|
24
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
24
|
24
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
25
|
25
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
26
|
26
74400-60A11-000
LEVER ASSY,HTR CONT
|
74400-60A11-000 |
— | ||
|
27
|
27
74417-60A00-000 KNOB,CONTROL LEVER |
74417-60A00-000 |
US $1.60 |
||
|
28
|
28
03141-05163-000
Screw
|
03141-05163-000 |
— | ||
| replacement | |||||
|
28
|
28
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
29
|
29
74512-60A12-000 CABLE,HOT&COOL(BLUE) |
74512-60A12-000 |
US $4.97 |
||
|
30
|
30
74513-60A14-000
CABLE,FRESH - CRCLT
(NATURAL) |
74513-60A14-000 |
— | ||
|
31
|
31
74514-60A11-000
CABLE,MODE CONTROL L:294
(BLACK) |
74514-60A11-000 |
— | ||
|
32
|
32
74620-60A10-000
DUCT,HEATER
N/AIR CON |
74620-60A10-000 |
— | ||
|
33
|
33
74450-64AA0-5PK
Panel, htr control
|
74450-64AA0-5PK |
— | ||
