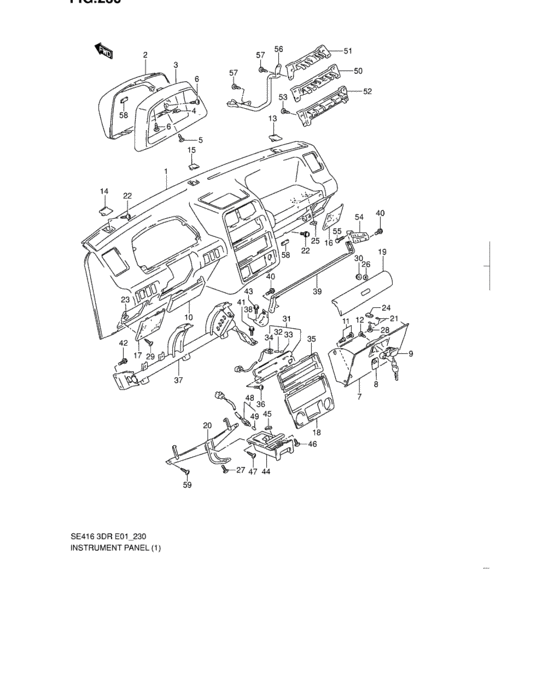

Instrument panel (LHD) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73111-60A10-5ES
PANEL,INSTRUMENT
|
73111-60A10-5ES |
— | ||
|
1
|
1
73111-60A10-5ER
Panel, instrument
TYPE 1 |
73111-60A10-5ER |
— | ||
| replacement | |||||
|
1
|
1
73111-60A10-5ES
PANEL,INSTRUMENT
TYPE 1 |
73111-60A10-5ES |
— | ||
|
2
|
2
73311-60A00-5ES CLUSTER,METER |
73311-60A00-5ES |
US $32.02 |
||
|
2
|
2
73311-60A00-5ER
CLUSTER,METER
TYPE 1 |
73311-60A00-5ER |
— | ||
|
3
|
3
73312-60A00-5ES
HOOD,METER CLUSTER
|
73312-60A00-5ES |
— | ||
|
3
|
3
73312-60A00-5ER
HOOD,METER CLUSTER
TYPE 1 |
73312-60A00-5ER |
— | ||
|
4
|
4
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
5
|
5
03141-05123-000
Screw 5 x 12
|
03141-05123-000 |
— | ||
| replacement | |||||
|
5
|
5
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
6
|
6
03141-05163-000
Screw
|
03141-05163-000 |
— | ||
| replacement | |||||
|
6
|
6
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
7
|
7
73411-60A10-5ES
BOX,I/P SIDE
|
73411-60A10-5ES |
— | ||
|
7
|
7
73411-60A10-5ER
BOX,I/P SIDE
TYPE 1 |
73411-60A10-5ER |
— | ||
|
8
|
8
73414-60A00-5ES COVER,INSTPNL SIDE BOX |
73414-60A00-5ES |
US $1.60 |
||
|
8
|
8
73414-60A00-5ER
COVER,INSTPNL SIDE BOX
TYPE 1 |
73414-60A00-5ER |
— | ||
| replacement | |||||
|
8
|
8
73414-60A00-5ES COVER,INSTPNL SIDE BOXTYPE 1 |
73414-60A00-5ES |
US $1.60 |
||
|
9
|
9
73420-60820-5ES LOCK ASSY,SIDE BOX |
73420-60820-5ES |
US $77.28 |
||
|
9
|
9
73420-60820-5ER
LOCK ASSY,SIDE BOX
TYPE 1 |
73420-60820-5ER |
— | ||
|
10
|
10
73871-60A00-5ES
Cover,column hole
JX |
73871-60A00-5ES |
— | ||
|
10
|
10
73871-60A00-5ER
COVER,COLUMN HOLE
TYPE 1:JX |
73871-60A00-5ER |
— | ||
|
10
|
10
73871-60A10-5ES
COVER,COLUMN HOLE
JLX,(TILT STEERING) |
73871-60A10-5ES |
— | ||
|
10
|
10
73871-60A10-5ER
Cover, column hole
TYPE 1:JLX,(TILT STEERING) |
73871-60A10-5ER |
— | ||
| replacement | |||||
|
10
|
10
73871-60A10-5ES
COVER,COLUMN HOLE
TYPE 1:JLX,(TILT STEERING) |
73871-60A10-5ES |
— | ||
|
11
|
11
09409-07315-000 CLIP |
09409-07315-000 |
US $1.44 |
||
|
12
|
12
02142-04103-000
Screw 4x10
|
02142-04103-000 |
— | ||
| replacement | |||||
|
12
|
12
02142-0410A-000 SCREW |
02142-0410A-000 |
from US $0.76 |
||
|
13
|
13
73811-60A00-5ES
CAP,UPPER SIDE,R
|
73811-60A00-5ES |
— | ||
|
13
|
13
73811-60A00-5ER
CAP,UPPER SIDE,R
TYPE 1 |
73811-60A00-5ER |
— | ||
| replacement | |||||
|
13
|
13
73811-60A00-5ES
CAP,UPPER SIDE,R
TYPE 1 |
73811-60A00-5ES |
— | ||
|
14
|
14
73812-60A00-5ES
CAP,UPPER SIDE,L
|
73812-60A00-5ES |
— | ||
|
14
|
14
73812-60A00-5ER
Cap, upper side lh
TYPE 1 |
73812-60A00-5ER |
— | ||
|
15
|
15
73813-60A00-5ES
CAP,UPPER CENTER
|
73813-60A00-5ES |
— | ||
|
15
|
15
73813-60A00-5ER
CAP,UPPER CENTER
TYPE 1 |
73813-60A00-5ER |
— | ||
|
16
|
16
73821-60A00-5ES
COVER,SPEAKER,R
|
73821-60A00-5ES |
— | ||
|
16
|
16
73821-60A00-5ER
COVER,SPEAKER,R
TYPE 1 |
73821-60A00-5ER |
— | ||
|
17
|
17
73822-60A00-5ES COVER,SPEAKER,L |
73822-60A00-5ES |
US $15.97 |
||
|
17
|
17
73822-60A00-5ER COVER,SPEAKER,LTYPE 1 |
73822-60A00-5ER |
US $9.02 |
||
|
18
|
18
73841-60A20-5PK
GARNISH,CENTER LWR
|
73841-60A20-5PK |
— | ||
|
19
|
19
73850-60A00-5ES
GRIP,I/P
|
73850-60A00-5ES |
— | ||
|
19
|
19
73850-60A00-5ER
GRIP,I/P
TYPE 1 |
73850-60A00-5ER |
— | ||
|
20
|
20
73860-60A10-000
STAY,RADIO&ASHTRAY
|
73860-60A10-000 |
— | ||
|
21
|
21
73951-60A00-000
STRIKER,I/P SIDE BOX
|
73951-60A00-000 |
— | ||
|
22
|
22
09136-06061-000 SCREW(6X16) |
09136-06061-000 |
from US $3.86 |
||
|
23
|
23
09148-04034-000 NUT |
09148-04034-000 |
US $12.90 |
||
| replacement | |||||
|
23
|
23
09148-04015-000 NUT |
09148-04015-000 |
from US $1.60 |
||
|
24
|
24
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
25
|
25
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
26
|
26
09160-08125-000
Washer (8.5x20x1.6)
|
09160-08125-000 |
— | ||
| replacement | |||||
|
26
|
26
09160-08054-000 WASHER(8.5X20X1.6) |
09160-08054-000 |
from US $0.91 |
||
|
27
|
27
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
27
|
27
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
27
|
27
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
28
|
28
03141-05123-000
Screw 5 x 12
|
03141-05123-000 |
— | ||
| replacement | |||||
|
28
|
28
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
29
|
29
03241-04123-000
Screw
|
03241-04123-000 |
— | ||
| replacement | |||||
|
29
|
29
03242-0412B-000 SCREW |
03242-0412B-000 |
from US $0.80 |
||
|
30
|
30
08316-20083-000
Nut
|
08316-20083-000 |
— | ||
| replacement | |||||
|
30
|
30
08316-2008A-000 NUT |
08316-2008A-000 |
from US $0.80 |
||
|
31
|
31
74450-60A00-5PK
PANEL,HEATER CONTROL
|
74450-60A00-5PK |
— | ||
|
31
|
31
74450-64A00-5PK PANEL,HEATER CONTROLGermany:PRODUCT OF CANADA |
74450-64A00-5PK |
US $110.21 |
||
|
32
|
32
73856-82000-000 BULB,HEATER CONTROL |
73856-82000-000 |
US $10.24 |
||
|
33
|
33
73857-82000-000 FILTER,HEATER CONTROL BULB |
73857-82000-000 |
US $1.60 |
||
|
34
|
34
74455-60A00-000 CORD ASSY |
74455-60A00-000 |
US $12.32 |
||
|
35
|
35
74461-60A10-5PK
COVER,INSTPNL CENTER
|
74461-60A10-5PK |
— | ||
|
36
|
36
03511-04163-000
Screw
|
03511-04163-000 |
— | ||
| replacement | |||||
|
36
|
36
03511-0416A-000 SCREW |
03511-0416A-000 |
from US $2.45 |
||
|
37
|
37
65920-60A00-000
Holder, steering colum lh
->65920-60A40 USED WITH,09116-06130(4PCS) |
65920-60A00-000 |
— | ||
| replacements | |||||
|
37
|
37
09116-06130-000 BOLT(6X16)Bolt, air cleaner front ->65920-60A40 USED WITH,09116-06130(4PCS) |
09116-06130-000 |
from US $3.32 |
||
|
37
|
37
65920-60A40-000
HOLDER,STEERING COLUMN,L
->65920-60A40 USED WITH,09116-06130(4PCS) |
65920-60A40-000 |
— | ||
|
37
|
37
65920-60A40-000
HOLDER,STEERING COLUMN,L
TA01C-110154~,TA01V-110583~,JSAETA01C00162360~,JSAETA01V00141737~ |
65920-60A40-000 |
— | ||
|
38
|
38
65945-60A00-000
ステー,インストゥルメントパネルホルダアシスタント
->65945-60A10 USED WITH,09116-06130(2PCS) |
65945-60A00-000 |
— | ||
| replacements | |||||
|
38
|
38
65945-60A10-000
STAY,INSTPNL HOLDER ASSISTANT
->65945-60A10 USED WITH,09116-06130(2PCS) |
65945-60A10-000 |
— | ||
|
38
|
38
09116-06130-000 BOLT(6X16)Bolt, air cleaner front ->65945-60A10 USED WITH,09116-06130(2PCS) |
09116-06130-000 |
from US $3.32 |
||
|
38
|
38
65945-60A10-000
STAY,INSTPNL HOLDER ASSISTANT
TA01C-110154~,TA01V-110583~,JSAETA01C00162360~,JSAETA01V00141737~ |
65945-60A10-000 |
— | ||
|
39
|
39
76430-60A10-000
Holder, instpn rh
->76430-60A20 USED WITH,09116-06130(3PCS) |
76430-60A10-000 |
— | ||
| replacements | |||||
|
39
|
39
09116-06130-000 BOLT(6X16)Bolt, air cleaner front ->76430-60A20 USED WITH,09116-06130(3PCS) |
09116-06130-000 |
from US $3.32 |
||
|
39
|
39
76430-60A20-000
HOLDER,I/P ASSISTANT
->76430-60A20 USED WITH,09116-06130(3PCS) |
76430-60A20-000 |
— | ||
|
39
|
39
76430-60A20-000
HOLDER,I/P ASSISTANT
TA01C-110154~,TA01V-110583~,JSAETA01C00162360~,JSAETA01V00141737~ |
76430-60A20-000 |
— | ||
|
40
|
40
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
40
|
40
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
40
|
40
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
40
|
40
09100-08294-000 BOLT(8X13)TA01C-110154~,TA01V-110583~,JSAETA01C00162360~,JSAETA01V00141737~ |
09100-08294-000 |
US $12.50 |
||
|
41
|
41
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
41
|
41
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
41
|
41
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
41
|
41
09100-08294-000 BOLT(8X13)TA01C-110154~,TA01V-110583~,JSAETA01C00162360~,JSAETA01V00141737~ |
09100-08294-000 |
US $12.50 |
||
|
42
|
42
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
42
|
42
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
43
|
43
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
43
|
43
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
43
|
43
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
43
|
43
09100-08294-000 BOLT(8X13)TA01C-110154~,TA01V-110583~,JSAETA01C00162360~,JSAETA01V00141737~ |
09100-08294-000 |
US $12.50 |
||
|
44
|
44
89810-60A10-5PK
ASHTRAY,INSTPNL
|
89810-60A10-5PK |
— | ||
|
45
|
45
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
46
|
46
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
46
|
46
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
46
|
46
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
47
|
47
03141-05123-000
Screw 5 x 12
|
03141-05123-000 |
— | ||
| replacement | |||||
|
47
|
47
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
48
|
48
36550-60E00-000 LAMP ASSY,ASHTRAY ILLUM |
36550-60E00-000 |
US $21.90 |
||
|
49
|
49
09471-12091-000 BULB(12V1.4W G30) |
09471-12091-000 |
US $28 |
||
|
50
|
50
73830-60A10-000
Reinf, ctr no.2
,Finland,Norway,Sweden,Switzerland,Belgium,,EC,Germany,Holland,Denmark,Italy,Austria,,6,Czech Republic,Iceland |
73830-60A10-000 |
— | ||
|
51
|
51
73880-60A10-000
Reinf, ctr upper
,Finland,Norway,Sweden,Switzerland,Belgium,,EC,Germany,Holland,Denmark,Italy,Austria,,6,Czech Republic,Iceland |
73880-60A10-000 |
— | ||
|
52
|
52
73890-60A10-000
Reinf, ctr lower rh
,Finland,Norway,Sweden,Switzerland,Belgium,,EC,Germany,Holland,Denmark,Italy,Austria,,6,Czech Republic,Iceland |
73890-60A10-000 |
— | ||
|
53
|
53
03241-05203-000
Screw
,Finland,Norway,Sweden,Switzerland,Belgium,,EC,Germany,Holland,Denmark,Italy,Austria,,6,Czech Republic,Iceland |
03241-05203-000 |
— | ||
| replacement | |||||
|
53
|
53
03241-0520A-000 SCREW,Finland,Norway,Sweden,Switzerland,Belgium,,EC,Germany,Holland,Denmark,Italy,Austria,,6,Czech Republic,Iceland |
03241-0520A-000 |
from US $0.80 |
||
|
54
|
54
65935-60A00-000
ブラケット,アシスタントアウトサイド
->65935-60A10,USED WITH 09116-06130(2PC) |
65935-60A00-000 |
— | ||
| replacements | |||||
|
54
|
54
65935-60A10-000
BRACKET,INSTPN ASST OUTSIDE
->65935-60A10,USED WITH 09116-06130(2PC) |
65935-60A10-000 |
— | ||
|
54
|
54
09116-06130-000 BOLT(6X16)Bolt, air cleaner front ->65935-60A10,USED WITH 09116-06130(2PC) |
09116-06130-000 |
from US $3.32 |
||
|
54
|
54
65935-60A10-000
BRACKET,INSTPN ASST OUTSIDE
TA01C-110154~,TA01V-110583~,JSAETA01C00162360~,JSAETA01V00141737~ |
65935-60A10-000 |
— | ||
|
55
|
55
01500-06163-000
Bolt
|
01500-06163-000 |
— | ||
| replacement | |||||
|
55
|
55
01500-0616A-000 Bolt |
01500-0616A-000 |
from US $0.76 |
||
|
55
|
55
09100-08294-000 BOLT(8X13)TA01C-110154~,TA01V-110583~,JSAETA01C00162360~,JSAETA01V00141737~ |
09100-08294-000 |
US $12.50 |
||
|
56
|
56
73970-60A00-000
Reinf, instrument lh
TYPE 1 |
73970-60A00-000 |
— | ||
|
57
|
57
03242-05203-000
Screw, inner
TYPE 1 |
03242-05203-000 |
— | ||
| replacement | |||||
|
57
|
57
03241-0520A-000 SCREWTYPE 1 |
03241-0520A-000 |
from US $0.80 |
||
|
58
|
58
73415-70A00-000 PAD |
73415-70A00-000 |
from US $1.60 |
||
|
59
|
59
03541-05123-000
Screw
TYPE 2,TYPE 3 |
03541-05123-000 |
— | ||
| replacement | |||||
|
59
|
59
03541-0512B-000 SCREWTYPE 2,TYPE 3 |
03541-0512B-000 |
from US $0.76 |
||
