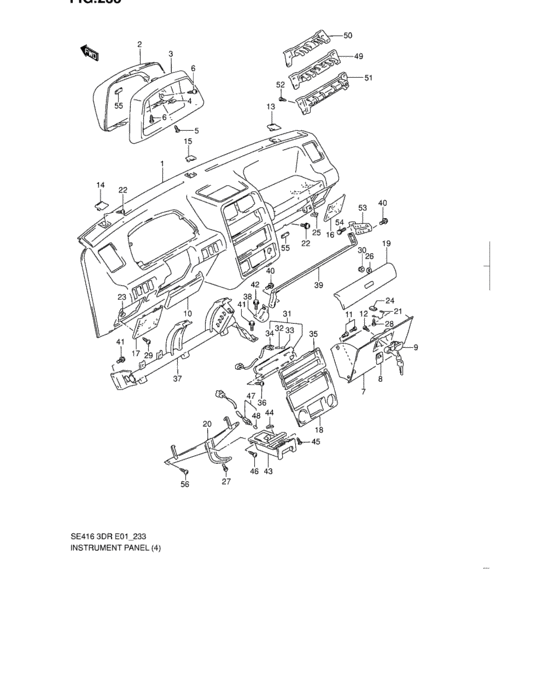

Instrument panel (TYPE 2:Germany PRODUCT OF CANADA) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
73111-60A10-5ES
PANEL,INSTRUMENT
|
73111-60A10-5ES |
— | ||
|
2
|
2
73311-60A00-5ES CLUSTER,METER |
73311-60A00-5ES |
US $32.02 |
||
|
3
|
3
73312-60A00-5PK
Hood, meter cluster
|
73312-60A00-5PK |
— | ||
| replacement | |||||
|
3
|
3
73312-60A00-5ES
HOOD,METER CLUSTER
|
73312-60A00-5ES |
— | ||
|
4
|
4
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
5
|
5
03141-05123-000
Screw 5 x 12
|
03141-05123-000 |
— | ||
| replacement | |||||
|
5
|
5
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
6
|
6
03142-05163-000
Screw
|
03142-05163-000 |
— | ||
| replacement | |||||
|
6
|
6
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
7
|
7
73411-60A10-5ES
BOX,I/P SIDE
|
73411-60A10-5ES |
— | ||
|
8
|
8
73414-60A00-5ES COVER,INSTPNL SIDE BOX |
73414-60A00-5ES |
US $1.60 |
||
|
9
|
9
73420-60820-5ES LOCK ASSY,SIDE BOX |
73420-60820-5ES |
US $77.28 |
||
|
10
|
10
73871-60A10-5ES
COVER,COLUMN HOLE
(TILT STEERING) |
73871-60A10-5ES |
— | ||
|
11
|
11
09409-07315-000 CLIP |
09409-07315-000 |
US $1.44 |
||
|
12
|
12
02142-04103-000
Screw 4x10
|
02142-04103-000 |
— | ||
| replacement | |||||
|
12
|
12
02142-0410A-000 SCREW |
02142-0410A-000 |
from US $0.76 |
||
|
13
|
13
73811-60A00-5ES
CAP,UPPER SIDE,R
|
73811-60A00-5ES |
— | ||
|
14
|
14
73812-60A00-5ES
CAP,UPPER SIDE,L
|
73812-60A00-5ES |
— | ||
|
15
|
15
73813-60A00-5ES
CAP,UPPER CENTER
|
73813-60A00-5ES |
— | ||
|
16
|
16
73821-60A00-5ES
COVER,SPEAKER,R
|
73821-60A00-5ES |
— | ||
|
17
|
17
73822-60A00-5ES COVER,SPEAKER,L |
73822-60A00-5ES |
US $15.97 |
||
|
18
|
18
73841-60A20-5PK
GARNISH,CENTER LWR
|
73841-60A20-5PK |
— | ||
|
19
|
19
73850-60A00-5ES
GRIP,I/P
|
73850-60A00-5ES |
— | ||
|
20
|
20
73860-60A00-000
Stay, radio & ashrtay
|
73860-60A00-000 |
— | ||
| replacement | |||||
|
20
|
20
73860-60A10-000
STAY,RADIO&ASHTRAY
|
73860-60A10-000 |
— | ||
|
21
|
21
73951-60A00-000
STRIKER,I/P SIDE BOX
|
73951-60A00-000 |
— | ||
|
22
|
22
09136-06061-000 SCREW(6X16) |
09136-06061-000 |
from US $3.86 |
||
|
23
|
23
09148-04034-000 NUT |
09148-04034-000 |
US $12.90 |
||
| replacement | |||||
|
23
|
23
09148-04015-000 NUT |
09148-04015-000 |
from US $1.60 |
||
|
24
|
24
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
25
|
25
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
26
|
26
09160-08125-000
Washer (8.5x20x1.6)
|
09160-08125-000 |
— | ||
| replacement | |||||
|
26
|
26
09160-08054-000 WASHER(8.5X20X1.6) |
09160-08054-000 |
from US $0.91 |
||
|
27
|
27
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
27
|
27
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
27
|
27
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
28
|
28
03141-05123-000
Screw 5 x 12
|
03141-05123-000 |
— | ||
| replacement | |||||
|
28
|
28
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
29
|
29
03241-04123-000
Screw
|
03241-04123-000 |
— | ||
| replacement | |||||
|
29
|
29
03242-0412B-000 SCREW |
03242-0412B-000 |
from US $0.80 |
||
|
30
|
30
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
30
|
30
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
31
|
31
74450-60A00-5PK
PANEL,HEATER CONTROL
|
74450-60A00-5PK |
— | ||
|
32
|
32
73856-82000-000 BULB,HEATER CONTROL |
73856-82000-000 |
US $10.24 |
||
|
33
|
33
73857-82000-000 FILTER,HEATER CONTROL BULB |
73857-82000-000 |
US $1.60 |
||
|
34
|
34
74455-60A00-000 CORD ASSY |
74455-60A00-000 |
US $12.32 |
||
|
35
|
35
74461-60A10-5PK
COVER,INSTPNL CENTER
|
74461-60A10-5PK |
— | ||
|
36
|
36
03511-04163-000
Screw
|
03511-04163-000 |
— | ||
| replacement | |||||
|
36
|
36
03511-0416A-000 SCREW |
03511-0416A-000 |
from US $2.45 |
||
|
37
|
37
65920-60A40-000
HOLDER,STEERING COLUMN,L
|
65920-60A40-000 |
— | ||
|
38
|
38
65945-60A10-000
STAY,INSTPNL HOLDER ASSISTANT
|
65945-60A10-000 |
— | ||
|
39
|
39
76430-60A20-000
HOLDER,I/P ASSISTANT
|
76430-60A20-000 |
— | ||
|
40
|
40
09100-08294-000 BOLT(8X13) |
09100-08294-000 |
US $12.50 |
||
|
41
|
41
09100-08294-000 BOLT(8X13) |
09100-08294-000 |
US $12.50 |
||
|
42
|
42
09100-08294-000 BOLT(8X13) |
09100-08294-000 |
US $12.50 |
||
|
43
|
43
89810-60A10-5PK
ASHTRAY,INSTPNL
|
89810-60A10-5PK |
— | ||
|
44
|
44
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
45
|
45
02142-06123-000
Screw
|
02142-06123-000 |
— | ||
| replacements | |||||
|
45
|
45
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
45
|
45
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
46
|
46
03141-05123-000
Screw 5 x 12
|
03141-05123-000 |
— | ||
| replacement | |||||
|
46
|
46
03141-0512A-000 SCREWScrew, belt cooling duct |
03141-0512A-000 |
from US $0.76 |
||
|
47
|
47
36550-60EA0-000
LAMP ASSY,ASHTRAY ILLUM
|
36550-60EA0-000 |
— | ||
| replacement | |||||
|
47
|
47
36550-60E00-000 LAMP ASSY,ASHTRAY ILLUM |
36550-60E00-000 |
US $21.90 |
||
|
48
|
48
36551-70AA0-000
Bulb
|
36551-70AA0-000 |
— | ||
| replacements | |||||
|
48
|
48
09471-12091-000 BULB(12V1.4W G30) |
09471-12091-000 |
US $28 |
||
|
48
|
48
09471-12055-000 BULB(14V1.4W,T5) |
09471-12055-000 |
from US $2.40 |
||
|
49
|
49
73830-60A10-000
Reinf, ctr no.2
|
73830-60A10-000 |
— | ||
|
50
|
50
73880-60A10-000
Reinf, ctr upper
|
73880-60A10-000 |
— | ||
|
51
|
51
73890-60A10-000
Reinf, ctr lower rh
|
73890-60A10-000 |
— | ||
|
52
|
52
03242-05203-000
Screw, inner
|
03242-05203-000 |
— | ||
| replacement | |||||
|
52
|
52
03241-0520A-000 SCREW |
03241-0520A-000 |
from US $0.80 |
||
|
53
|
53
65935-60A10-000
BRACKET,INSTPN ASST OUTSIDE
|
65935-60A10-000 |
— | ||
|
54
|
54
09100-08294-000 BOLT(8X13) |
09100-08294-000 |
US $12.50 |
||
|
55
|
55
73415-70A00-000 PAD |
73415-70A00-000 |
from US $1.60 |
||
|
55
|
55
73415-60AA0-000
Pad, i/p lid
2S3TA01C000710127~,2S3TA01V000710146~ |
73415-60AA0-000 |
— | ||
|
56
|
56
03541-05123-000
Screw
|
03541-05123-000 |
— | ||
| replacement | |||||
|
56
|
56
03541-0512B-000 SCREW |
03541-0512B-000 |
from US $0.76 |
||
