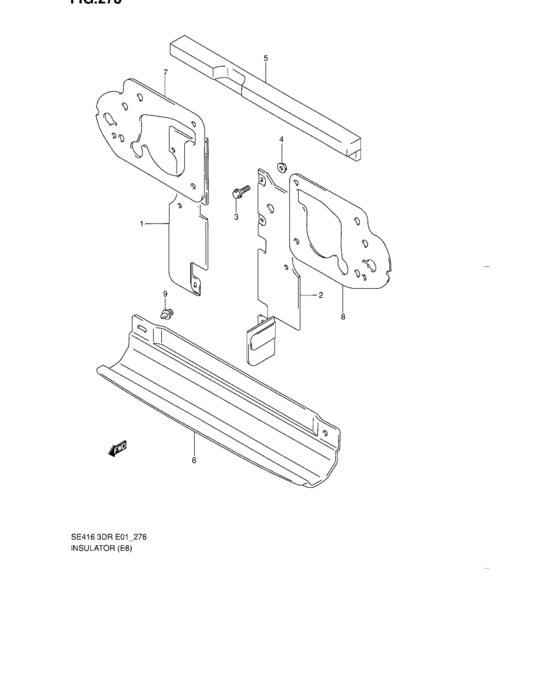

Insulator Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95340-60A31-000
INSULATOR ASSY,RADIATOR SIDE,R
|
95340-60A31-000 |
— | ||
|
2
|
2
95350-60A31-000
INSULATOR ASSY,RADIATOR SIDE,L
|
95350-60A31-000 |
— | ||
|
3
|
3
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
3
|
3
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
4
|
4
08316-10063-000
Nut
|
08316-10063-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
5
|
5
95364-60A02-000
INSULATOR,RADIATOR UPR
|
95364-60A02-000 |
— | ||
|
6
|
6
95361-60A32-000
PANEL,RADIATOR LOWER SHIELD
<-95361-60A23 |
95361-60A32-000 |
— | ||
|
7
|
7
95362-60A21-000
INSULATOR,LAMP SUPPORT PANEL,R
TYPE 1 |
95362-60A21-000 |
— | ||
|
7
|
7
95362-64A20-000
INSULATOR,LAMP SUPPORT PANEL,R
TYPE 2 |
95362-64A20-000 |
— | ||
|
8
|
8
95363-60A21-000
Insulator,lamp support panel,l
TYPE 1 |
95363-60A21-000 |
— | ||
|
8
|
8
95363-64A20-000
INSULATOR,LAMP SUPPORT PANEL,L
TYPE 2 |
95363-64A20-000 |
— | ||
|
9
|
9
09409-07022-000 CLIPTYPE 1 |
09409-07022-000 |
from US $1.40 |
||
