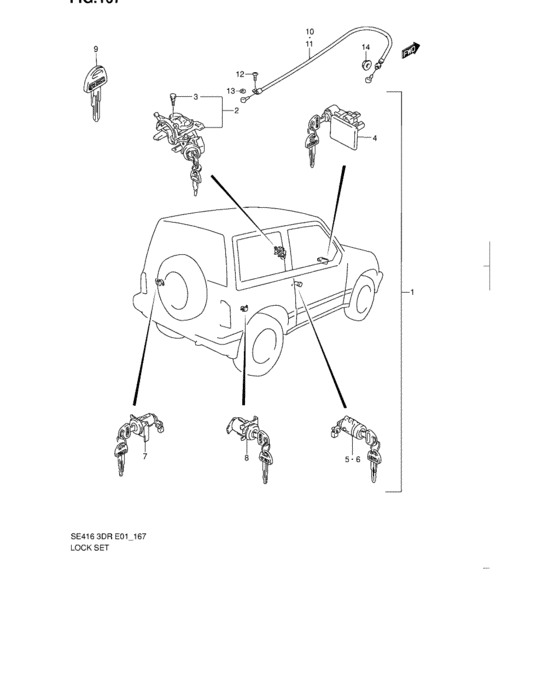

Lock set (LOCK SET) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37100-60850-5ER
Lock set
->37101-60812-5ER,USED WITH 82577-61A00 |
37100-60850-5ER |
— | ||
| replacements | |||||
|
1
|
1
37101-60812-5ES
LOCK SET
->37101-60812-5ER,USED WITH 82577-61A00 |
37101-60812-5ES |
— | ||
|
1
|
1
82577-61A00-000 RETAINER,RR GATE LATCH->37101-60812-5ER,USED WITH 82577-61A00 |
82577-61A00-000 |
US $11.20 |
||
|
1
|
1
37101-60812-5ER
Lock set
TA01C-101080~,JSAETA01C00124848~,<-37101-60811-5ER |
37101-60812-5ER |
— | ||
| replacement | |||||
|
1
|
1
37101-60812-5ES
LOCK SET
TA01C-101080~,JSAETA01C00124848~,<-37101-60811-5ER |
37101-60812-5ES |
— | ||
|
1
|
1
37100-60850-5ES
Lock set
->37101-60812-5ES,USED WITH 82577-61A00 |
37100-60850-5ES |
— | ||
| replacements | |||||
|
1
|
1
37101-60812-5ES
LOCK SET
->37101-60812-5ES,USED WITH 82577-61A00 |
37101-60812-5ES |
— | ||
|
1
|
1
82577-61A00-000 RETAINER,RR GATE LATCH->37101-60812-5ES,USED WITH 82577-61A00 |
82577-61A00-000 |
US $11.20 |
||
|
1
|
1
37101-60812-5ES
LOCK SET
TA01C-101080~,JSAETA01C00124848~,<-37100-60851-5ES |
37101-60812-5ES |
— | ||
|
1
|
1
37100-60860-5ER
Lock set
JX,->37101-60822-5ER,USED WITH 82577-61A00 |
37100-60860-5ER |
— | ||
| replacements | |||||
|
1
|
1
37101-60822-5ES
LOCK SET
JX,->37101-60822-5ER,USED WITH 82577-61A00 |
37101-60822-5ES |
— | ||
|
1
|
1
82577-61A00-000 RETAINER,RR GATE LATCHJX,->37101-60822-5ER,USED WITH 82577-61A00 |
82577-61A00-000 |
US $11.20 |
||
|
1
|
1
37101-60822-5ER
Lock set
JX,TA01V-103569~,JSAETA01V00118420~,<-37100-60861-5ER |
37101-60822-5ER |
— | ||
| replacement | |||||
|
1
|
1
37101-60822-5ES
LOCK SET
JX,TA01V-103569~,JSAETA01V00118420~,<-37100-60861-5ER |
37101-60822-5ES |
— | ||
|
1
|
1
37100-60860-5ES
Lock set
JX,->37101-60822-5ES,USED WITH 82577-61A00 |
37100-60860-5ES |
— | ||
| replacements | |||||
|
1
|
1
37101-60822-5ES
LOCK SET
JX,->37101-60822-5ES,USED WITH 82577-61A00 |
37101-60822-5ES |
— | ||
|
1
|
1
82577-61A00-000 RETAINER,RR GATE LATCHJX,->37101-60822-5ES,USED WITH 82577-61A00 |
82577-61A00-000 |
US $11.20 |
||
|
1
|
1
37101-60822-5ES
LOCK SET
JX,TA01V-103569~,JSAETA01V00118420~,<-37100-60861-5ES |
37101-60822-5ES |
— | ||
|
1
|
1
37100-60822-5ER
Lock set
JLX,<-37100-60870-5ER |
37100-60822-5ER |
— | ||
|
2
|
2
37100-60880-000 LOCK ASSY,STEERING<-37100-60840 |
37100-60880-000 |
US $507.68 |
||
|
3
|
3
37152-84100-000
Bolt
|
37152-84100-000 |
— | ||
| replacement | |||||
|
3
|
3
37152-84G00-000 BOLT, STRG LOCK |
37152-84G00-000 |
from US $2.98 |
||
|
4
|
4
73420-60820-5ER
LOCK ASSY,SIDE BOX
TYPE 1 |
73420-60820-5ER |
— | ||
|
4
|
4
73420-60820-5ES LOCK ASSY,SIDE BOXTYPE 1,TYPE 2,TYPE 3 |
73420-60820-5ES |
US $77.28 |
||
|
5
|
5
82200-60831-000 CYLINDER,FR DR LOCK,R |
82200-60831-000 |
US $51.15 |
||
|
6
|
6
82200-60841-000 CYLINDER,FR DR LOCK,L |
82200-60841-000 |
US $76.80 |
||
|
7
|
7
82500-60821-000 CYLINDER,RR GATE LOCK |
82500-60821-000 |
US $80.56 |
||
|
7
|
7
82500-60831-000 CYLINDER,BACK DR LOCK |
82500-60831-000 |
US $71.44 |
||
|
8
|
8
89300-60800-000
シリンダセット,フューエルリッド
->89300-60802,USED WITH 82577-61A00 |
89300-60800-000 |
— | ||
| replacements | |||||
|
8
|
8
89300-60802-000 CYLINDER,FUEL LID LOCKCylinder, fuel lid lock ->89300-60802,USED WITH 82577-61A00 |
89300-60802-000 |
US $76.80 |
||
|
8
|
8
82577-61A00-000 RETAINER,RR GATE LATCH->89300-60802,USED WITH 82577-61A00 |
82577-61A00-000 |
US $11.20 |
||
|
8
|
8
89300-60802-000 CYLINDER,FUEL LID LOCKCylinder, fuel lid lock TA01C-101080~,JSAETA01C00124848~ |
89300-60802-000 |
US $76.80 |
||
|
9
|
9
37145-60A00-000 KEY,BLANKOPT |
37145-60A00-000 |
from US $18.09 |
||
