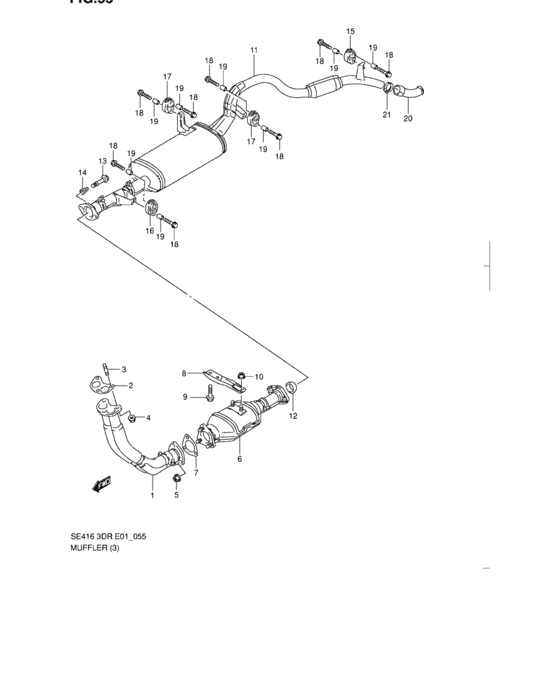

Muffler (2 VALVE:TYPE 2,3:W/FUEL INJECTION) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14190-56B02-000
Pipe, exhaust no.1
<-14190-56B01 |
14190-56B02-000 |
— | ||
| replacement | |||||
|
1
|
1
14190-56B0V-000
PIPE,EXH NO.1
<-14190-56B01 |
14190-56B0V-000 |
— | ||
|
2
|
2
14181-60A20-000 GASKET,EXH MANF&CTR PIPE |
14181-60A20-000 |
from US $51.89 |
||
|
3
|
3
09108-10122-000 BOLT,STUD |
09108-10122-000 |
US $13.44 |
||
|
4
|
4
09159-10098-000 NUT |
09159-10098-000 |
from US $1.28 |
||
|
5
|
5
09159-10049-000
Nut
|
09159-10049-000 |
— | ||
| replacement | |||||
|
5
|
5
09159-10102-000 NUT |
09159-10102-000 |
from US $0.97 |
||
|
6
|
6
14250-57B00-000
Pipe, exhaust no.2
|
14250-57B00-000 |
— | ||
| replacement | |||||
|
6
|
6
14250-57B0V-000
PIPE,EXH NO.2
|
14250-57B0V-000 |
— | ||
|
7
|
7
14182-57B00-000 GASKET,EXH PIPE |
14182-57B00-000 |
US $21.71 |
||
|
8
|
8
14284-57B00-000 BRACKET,EXH NO.2 PIPE |
14284-57B00-000 |
US $57.04 |
||
|
9
|
9
01580-10253-000
ボルト
|
01580-10253-000 |
— | ||
| replacement | |||||
|
9
|
9
01580-1025A-000 Bolt |
01580-1025A-000 |
US $19.50 |
||
|
10
|
10
08316-10103-000
Nut
|
08316-10103-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
11
|
11
14300-60A41-000
Muffler
|
14300-60A41-000 |
— | ||
| replacement | |||||
|
11
|
11
14300-60A4V-000 MUFFLER |
14300-60A4V-000 |
US $478.72 |
||
|
12
|
12
14183-60A11-000
リング,シール
|
14183-60A11-000 |
— | ||
| replacement | |||||
|
12
|
12
14183-76A00-000 RING,SEAL EXH PIPE |
14183-76A00-000 |
from US $11.57 |
||
|
13
|
13
09119-10042-000
ボルト,10X65
|
09119-10042-000 |
— | ||
| replacement | |||||
|
13
|
13
09119-10041-000 BOLT(10X65) |
09119-10041-000 |
from US $5.92 |
||
|
14
|
14
14492-82600-000
Spring
|
14492-82600-000 |
— | ||
| replacement | |||||
|
14
|
14
14492-67D00-000 SPRING,EXH PIPE |
14492-67D00-000 |
from US $5.69 |
||
|
15
|
15
14281-78010-000
Mounting, muffler
|
14281-78010-000 |
— | ||
| replacement | |||||
|
15
|
15
14281-60G01-000 MOUNTING,MUF |
14281-60G01-000 |
US $8.32 |
||
|
16
|
16
14281-60B00-000 MOUNTING,MUF |
14281-60B00-000 |
US $4.86 |
||
|
17
|
17
14281-79010-000
Mounting, muffler
|
14281-79010-000 |
— | ||
| replacement | |||||
|
17
|
17
14281-60G11-000 MOUNTING,MUFFLER(HS60) |
14281-60G11-000 |
US $5.78 |
||
|
18
|
18
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
18
|
18
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
19
|
19
09180-08057-000
Spacer
|
09180-08057-000 |
— | ||
| replacement | |||||
|
19
|
19
09180-08227-000 SPACER(8.2X12.5X23.5) |
09180-08227-000 |
from US $1.92 |
||
|
20
|
20
14391-60A41-000
Pipe,muf tail extension
TYPE 2:Chile,TYPE 2,TYPE 3:Switzerland |
14391-60A41-000 |
— | ||
|
21
|
21
09402-57511-000 CLAMPTYPE 2:Chile,TYPE 2,TYPE 3:Switzerland |
09402-57511-000 |
from US $6.24 |
||
