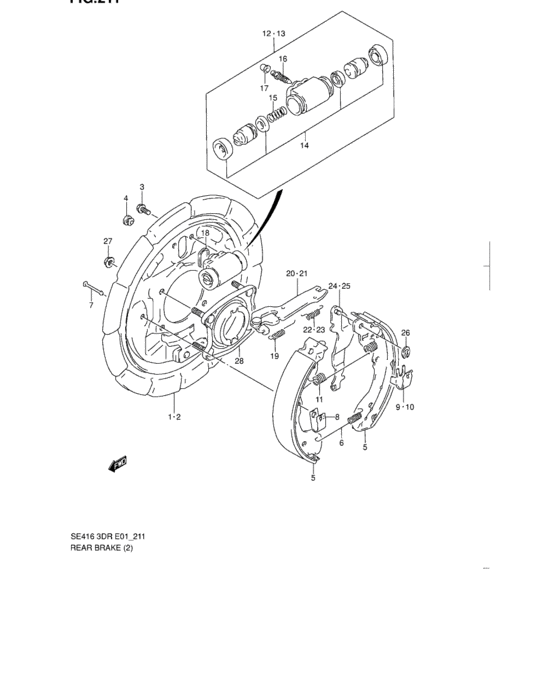

Rear brake (TYPE 2,3 AND Germany:PRODUCT OF CANADA) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53110-60A70-000 PLATE,BACKING,R |
53110-60A70-000 |
US $163.20 |
||
|
2
|
2
53120-60A70-000 PLATE,BACKING,L |
53120-60A70-000 |
US $163.20 |
||
|
3
|
3
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
3
|
3
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
4
|
4
53141-84010-000 PLUG,BACKING PLATE |
53141-84010-000 |
from US $1.52 |
||
|
5
|
5
53200-60861-000
SHOE SET,BRAKE
|
53200-60861-000 |
— | ||
| replacement | |||||
|
5
|
5
53200-60862-000 SHOE SET,BRAKE |
53200-60862-000 |
US $89.42 |
||
|
6
|
6
53232-85120-000 SPRING,SHOE RETURN LOWER |
53232-85120-000 |
from US $2.28 |
||
|
7
|
7
53241-82030-000 PIN,SHOE HOLD DOWNPin, shoe hold down |
53241-82030-000 |
from US $1.46 |
||
|
8
|
8
53243-85010-000 SPRING,SHOE HOLD DOWNSpring, shoe hold down |
53243-85010-000 |
from US $1.37 |
||
|
9
|
9
53244-82031-000 SPRING,SHOE HOLD DOWN,RSpring, shoe hold down lh |
53244-82031-000 |
from US $2.56 |
||
|
10
|
10
53245-82031-000 SPRING,SHOE HOLD DOWN,LSpring, shoe hold down rh |
53245-82031-000 |
from US $2.56 |
||
|
11
|
11
53331-60A70-000 SPRING,SHOE RETURN UPPER A |
53331-60A70-000 |
from US $2.12 |
||
|
12
|
12
53401-56B00-000 CYLINDER ASSY,RR WHEEL BRAKE,R |
53401-56B00-000 |
US $75.81 |
||
|
13
|
13
53402-56B00-000
CYLINDER ASSY,RR WHEEL BRAKE,L
|
53402-56B00-000 |
— | ||
| replacement | |||||
|
13
|
13
53402-56B01-000 Cylinder Assy,rr Wheel Brake,l |
53402-56B01-000 |
US $75.81 |
||
|
14
|
14
53400-60820-000 PISTON CUP/BOOT SET |
53400-60820-000 |
US $12.16 |
||
|
15
|
15
53441-56B00-000 SPRING,WHEEL CYLINDER |
53441-56B00-000 |
US $3.04 |
||
|
16
|
16
55473-82030-000
Plug, bleeder
<-53473-82030 |
55473-82030-000 |
— | ||
| replacement | |||||
|
16
|
16
55151-78451-000 PLUG,BLEEDER<-53473-82030 |
55151-78451-000 |
from US $3.94 |
||
|
17
|
17
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
18
|
18
53417-82030-000 GASKET,RR WHEEL CYLINDERGasket, rear wheel cylinder |
53417-82030-000 |
from US $4.71 |
||
|
19
|
19
53714-85010-000 SPRING,QUADRANT |
53714-85010-000 |
from US $1.94 |
||
|
20
|
20
53810-60A70-000 STRUT ASSY,BRAKE,R |
53810-60A70-000 |
US $35.20 |
||
|
21
|
21
53820-60A70-000 STRUT ASSY,BRAKE,L |
53820-60A70-000 |
US $35.20 |
||
|
22
|
22
54524-19B00-000 Spring,antirattSpring, antirattle rh |
54524-19B00-000 |
US $4.36 |
||
| replacement | |||||
|
22
|
22
54524-56B00-000 SPRING,ANTIRATTLE,L |
54524-56B00-000 |
from US $1.98 |
||
|
23
|
23
54824-19B00-000 Spring,antirattSpring, antirattle lh |
54824-19B00-000 |
US $4.36 |
||
| replacement | |||||
|
23
|
23
54824-56B00-000 SPRING,ANTIRATTLE,R |
54824-56B00-000 |
from US $1.98 |
||
|
24
|
24
53720-60A71-000 LEVER ASSY,PARKING SHOE,R |
53720-60A71-000 |
US $18.03 |
||
|
25
|
25
53730-60A71-000
LEVER ASSY,PARKING SHOE,L
|
53730-60A71-000 |
— | ||
|
26
|
26
53753-82030-000 E-RING,PARKING LEVERRetainer, brake stopper |
53753-82030-000 |
from US $0.99 |
||
|
27
|
27
09159-08075-000 NUT |
09159-08075-000 |
US $0.91 |
||
|
28
|
28
53820-60A00-000 RETAINER,RR WHL BRG OUTER |
53820-60A00-000 |
US $70.40 |
||
