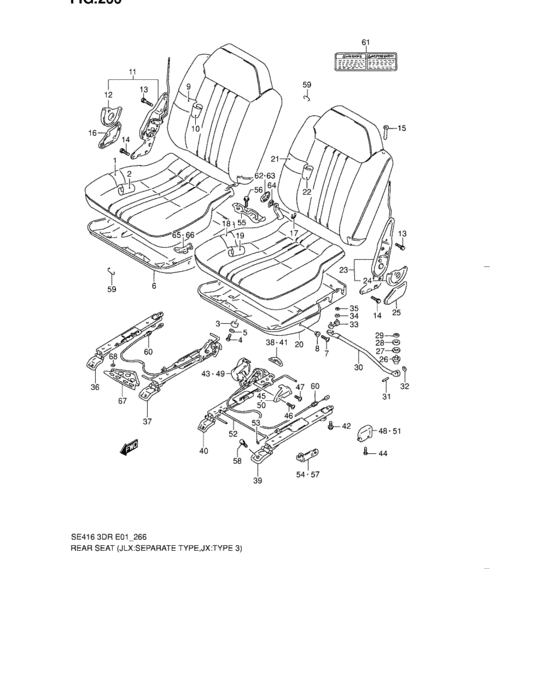

Rear seat (JLX:SEPARATE TYPE,JX:TYPE 3) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87105-60A10-000
クッションサブアッシ,リヤシート,ライト
|
87105-60A10-000 |
— | ||
|
1
|
1
87105-60A51-000
CUSHION SUB ASSY,RR SEAT,R
TYPE 3:,,,Sweden,Switzerland,,Belgium,1,2,Italy,Hong Kong,Austria,5 |
87105-60A51-000 |
— | ||
|
2
|
2
87180-65A50-2RC
Cover, cushion rh
TYPE 1 |
87180-65A50-2RC |
— | ||
|
2
|
2
87180-65A50-2RD
Cover, cushion rh
TYPE 1 |
87180-65A50-2RD |
— | ||
|
2
|
2
87180-60A50-2RA
Cover, cushion rh
TYPE 1:Germany,(MOCKET TYPE),JSA0TA01C00104004~,~JSA0TA01C00105507,TYPE 1:Germany,PRODUCT OF CANADA,<-87180-60A10-2RA |
87180-60A50-2RA |
— | ||
|
2
|
2
87180-60A50-2RB
Cover, cushion rh
TYPE 1:Germany(MOCKET TYPE),JSA0TA01C00104004~,~JSA0TA01C00105507,<-87180-60A10-2RB |
87180-60A50-2RB |
— | ||
|
2
|
2
87180-60A50-D22
Cover, cushion rh
TYPE 1:70 ANNIVERSARY,<-87180-60A10-D22 |
87180-60A50-D22 |
— | ||
|
2
|
2
87180-65A50-G76
トリム,リヤシートクッション,ライト
TYPE 2,<-87180-60A10-G76 |
87180-65A50-G76 |
— | ||
|
2
|
2
87180-65A50-B7S
TRIM,RR SEAT CUSHION,R
TYPE 3 |
87180-65A50-B7S |
— | ||
|
2
|
2
87180-60A50-B7V
Cover, cushion rh
TYPE 3:JX:,Belgium |
87180-60A50-B7V |
— | ||
|
3
|
3
87291-60A10-000 CUSHION,RR SEAT |
87291-60A10-000 |
US $1.95 |
||
|
4
|
4
02142-05163-000
Bolt
|
02142-05163-000 |
— | ||
| replacements | |||||
|
4
|
4
02142-0516B-000 SCREW |
02142-0516B-000 |
from US $0.80 |
||
|
4
|
4
02142-0516A-000 SCREWScrew |
02142-0516A-000 |
from US $0.76 |
||
|
4
|
4
03242-05163-000
Screw
|
03242-05163-000 |
— | ||
| replacement | |||||
|
4
|
4
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
5
|
5
08322-01053-000
Washer
|
08322-01053-000 |
— | ||
| replacements | |||||
|
5
|
5
08322-0105B-000 WASHER |
08322-0105B-000 |
from US $0.76 |
||
|
5
|
5
08322-0105A-000 WASHERWasher, front |
08322-0105A-000 |
from US $0.80 |
||
|
6
|
6
87191-63A10-5PK
BOARD,RR SEAT CUSH UND,R
|
87191-63A10-5PK |
— | ||
|
6
|
6
87191-60A51-5PK
BOARD,RR SEAT UND,R
TYPE 3:,,,Sweden,Switzerland,,Belgium,1,2,Italy,Hong Kong,Austria,5 |
87191-60A51-5PK |
— | ||
|
7
|
7
02142-05163-000
Bolt
|
02142-05163-000 |
— | ||
| replacements | |||||
|
7
|
7
02142-0516B-000 SCREW |
02142-0516B-000 |
from US $0.80 |
||
|
7
|
7
02142-0516A-000 SCREWScrew |
02142-0516A-000 |
from US $0.76 |
||
|
8
|
8
09169-06071-000 WASHERWasher, rr side |
09169-06071-000 |
from US $0.96 |
||
|
9
|
9
87305-60A10-000
バックサブアッシ,リヤシート,ライト
|
87305-60A10-000 |
— | ||
|
10
|
10
87380-60A11-2RC
Cover, back rh
TYPE 1 |
87380-60A11-2RC |
— | ||
|
10
|
10
87380-60A11-2RD
Cover, back rh
TYPE 1 |
87380-60A11-2RD |
— | ||
|
10
|
10
87380-60A11-2RA
Cover, back rh
TYPE 1:Germany(MOCKET TYPE),JSA0TA01C00104004~,~JSA0TA01C00105507,TYPE 1:Germany,PRODUCT OF CANADA |
87380-60A11-2RA |
— | ||
|
10
|
10
87380-60A11-2RB
Cover, back rh
TYPE 1:Germany(MOCKET TYPE),JSA0TA01C00104004~,~JSA0TA01C00105507 |
87380-60A11-2RB |
— | ||
|
10
|
10
87380-60A11-D22
Cover, back rh
TYPE 1:70 ANNIVERSARY |
87380-60A11-D22 |
— | ||
|
10
|
10
87380-60A11-G76
Cover, back rh
TYPE 2 |
87380-60A11-G76 |
— | ||
|
10
|
10
87380-60A11-B7S
Cover, back rh
TYPE 3 |
87380-60A11-B7S |
— | ||
|
10
|
10
87380-60A11-B7V
Cover, back rh
TYPE 3:JX:,Belgium |
87380-60A11-B7V |
— | ||
|
11
|
11
87210-60A12-5PK
RECLINING,RR SEAT,R
|
87210-60A12-5PK |
— | ||
|
12
|
12
87222-60A10-5PK
カバー,リヤリクライニングアッパ,ライト(ブラック)
~JSAETA01C00165144,~JSAETA01V00144017 |
87222-60A10-5PK |
— | ||
|
13
|
13
01570-08163-000
Bolt
|
01570-08163-000 |
— | ||
| replacement | |||||
|
13
|
13
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
14
|
14
01570-08163-000
Bolt
|
01570-08163-000 |
— | ||
| replacement | |||||
|
14
|
14
01570-0816A-000 BOLT |
01570-0816A-000 |
from US $0.96 |
||
|
15
|
15
87211-60A10-5PK KNOB,RR SEAT RECLINING |
87211-60A10-5PK |
US $9.53 |
||
|
16
|
16
87221-70E00-5PK COVER,RR SEAT RECLINING LWR,R<-87221-60A10-5PK |
87221-70E00-5PK |
US $7.36 |
||
|
17
|
17
08332-11086-000
E ring
|
08332-11086-000 |
— | ||
| replacement | |||||
|
17
|
17
08332-1108A-000 E RING |
08332-1108A-000 |
from US $0.96 |
||
|
18
|
18
87106-60A10-000
CUSHION SUB ASSY,REAR SEAT,L
|
87106-60A10-000 |
— | ||
|
18
|
18
87106-60A51-000
CUSHION SUB ASSY,RR SEAT,L
TYPE 3:,,,Sweden,Switzerland,,Belgium,1,2,Italy,Hong Kong,Austria,5 |
87106-60A51-000 |
— | ||
|
19
|
19
87580-65A50-2RC
Cover, cushion lh
TYPE 1 |
87580-65A50-2RC |
— | ||
|
19
|
19
87580-65A50-2RD
Cover, cushion lh
TYPE 1 |
87580-65A50-2RD |
— | ||
|
19
|
19
87580-60A50-2RA
Cover, cushion lh
TYPE 1:Germany(MOCKET TYPE),JSA0TA01C00104004~,~JSA0TA01C00105507,TYPE 1:Germany,PRODUCT OF CANADA,<-87580-60A50-2RA |
87580-60A50-2RA |
— | ||
|
19
|
19
87580-60A50-2RB
Cover, cushion lh
TYPE 1:Germany(MOCKET TYPE),JSA0TA01C00104004~,~JSA0TA01C00105507,<-87580-60A50-2RB |
87580-60A50-2RB |
— | ||
|
19
|
19
87580-60A50-D22
Cover, cushion lh
TYPE 1:70 ANNIVERSARY,<-87580-60A10-D22 |
87580-60A50-D22 |
— | ||
|
19
|
19
87580-65A50-G76
トリム,リヤシートクッション,レフト
TYPE 2,<-87580-60A10-G76 |
87580-65A50-G76 |
— | ||
|
19
|
19
87580-65A50-B7S
トリム,リヤシートクッション,レフト
TYPE 3 |
87580-65A50-B7S |
— | ||
|
19
|
19
87580-60A50-B7V
Cover, cushion lh
TYPE 3:JX:,Belgium |
87580-60A50-B7V |
— | ||
|
20
|
20
87591-63A10-5PK
BOARD,RR SEAT CUSH UND,L
|
87591-63A10-5PK |
— | ||
|
20
|
20
87591-60A51-5PK
BOARD,RR SEAT UND,L
TYPE 3:,,,Sweden,Switzerland,,Belgium,1,2,Italy,Hong Kong,Austria,5 |
87591-60A51-5PK |
— | ||
|
21
|
21
87306-60A10-000
BACK S/ASSY,RR SEAT,L
|
87306-60A10-000 |
— | ||
|
22
|
22
87780-60A11-2RC
Cover, back lh
TYPE 1 |
87780-60A11-2RC |
— | ||
|
22
|
22
87780-60A11-2RD
Cover, back lh
TYPE 1 |
87780-60A11-2RD |
— | ||
|
22
|
22
87780-60A11-2RA
Cover, back lh
TYPE 1:Germany(MOCKET TYPE),JSA0TA01C00104004~,~JSA0TA01C00105507,TYPE 1:Germany,PRODUCT OF CANADA |
87780-60A11-2RA |
— | ||
|
22
|
22
87780-60A11-2RB
Cover, back lh
TYPE 1:Germany(MOCKET TYPE),JSA0TA01C00104004~,~JSA0TA01C00105507 |
87780-60A11-2RB |
— | ||
|
22
|
22
87780-60A11-D22
Cover, back lh
TYPE 1:70 ANNIVERSARY,<-87780-60A10-D22 |
87780-60A11-D22 |
— | ||
|
22
|
22
87780-60A11-G76
Cover, back lh
TYPE 2 |
87780-60A11-G76 |
— | ||
|
22
|
22
87780-60A11-B7S
Cover, back lh
TYPE 3 |
87780-60A11-B7S |
— | ||
|
22
|
22
87780-60A11-B7V
Cover, back lh
TYPE 3:JX:,Belgium |
87780-60A11-B7V |
— | ||
|
23
|
23
87610-60A11-5PK
リクライニングアッシ,リヤシート,レフト(ブラック)
|
87610-60A11-5PK |
— | ||
| replacement | |||||
|
23
|
23
87610-60A12-5PK
RECLINING,RR SEAT,L
|
87610-60A12-5PK |
— | ||
|
23
|
23
87610-60A12-5PK
RECLINING,RR SEAT,L
TA01C-111129~,JSAETA01C00165107~ |
87610-60A12-5PK |
— | ||
|
24
|
24
87622-60A10-5PK
カバー,リヤリクライニングアッパ,レフト(ブラック)
|
87622-60A10-5PK |
— | ||
|
25
|
25
87621-70E00-5PK COVER,RR SEAT RECLINING LWR,L<-87621-60A10-5PK |
87621-70E00-5PK |
US $7.36 |
||
|
26
|
26
87144-60A10-000 PIN,REAR SEAT STOPPER ROD |
87144-60A10-000 |
US $4.75 |
||
|
27
|
27
87277-60A10-000 WASHER,STOPPER ROD PIN |
87277-60A10-000 |
US $1.58 |
||
|
28
|
28
08322-01083-000
WASHER
|
08322-01083-000 |
— | ||
| replacements | |||||
|
28
|
28
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
28
|
28
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
29
|
29
09148-08002-000 NUT |
09148-08002-000 |
US $11 |
||
|
30
|
30
87270-60A10-000
ストッパ,リヤシート
->87270-60A11,USED WITH 87279-60A11 |
87270-60A10-000 |
— | ||
| replacements | |||||
|
30
|
30
87270-60A11-000
STOPPER,REAR SEAT
->87270-60A11,USED WITH 87279-60A11 |
87270-60A11-000 |
— | ||
|
30
|
30
87279-60A11-000 HOLDER,RR SEAT STOPPER->87270-60A11,USED WITH 87279-60A11 |
87279-60A11-000 |
US $5.85 |
||
|
30
|
30
87270-60A11-000
STOPPER,REAR SEAT
|
87270-60A11-000 |
— | ||
|
30
|
30
87270-60A52-000
STOPPER,REAR SEAT
TYPE 3:,,,Sweden,Switzerland,,Belgium,1,2,Italy,Hong Kong,Austria,5 |
87270-60A52-000 |
— | ||
|
31
|
31
87278-60A11-000 PIN,REAR SEAT STOPPER |
87278-60A11-000 |
US $1.80 |
||
|
32
|
32
09148-03011-000 NUT |
09148-03011-000 |
from US $2.84 |
||
|
33
|
33
87279-60A11-000 HOLDER,RR SEAT STOPPER<-87279-60A10 |
87279-60A11-000 |
US $5.85 |
||
|
34
|
34
08322-01063-000
Washer
|
08322-01063-000 |
— | ||
| replacement | |||||
|
34
|
34
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
35
|
35
09148-06005-000
Nut seat moldin
|
09148-06005-000 |
— | ||
| replacement | |||||
|
35
|
35
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
|
36
|
36
87810-60A10-000
ADJUSTER,RR SEAT SLIDE OUTER,R
<-87810-60A01 |
87810-60A10-000 |
— | ||
|
36
|
36
87810-60A02-000
Adjuster, rh seat outside
SEE NOTE 1 |
87810-60A02-000 |
— | ||
|
36
|
36
87810-60A60-000
Adjuster, rh seat outside
TYPE 3:,,,Sweden,Switzerland,Belgium,1,,2,Italy,Hong Kong,Austria,5,<-87810-60A51 |
87810-60A60-000 |
— | ||
|
36
|
36
87810-60A52-000
Adjuster, rh seat outside
TYPE 3:,,,Sweden,Switzerland,Belgium,1,,2,Italy,Hong Kong,Austria,5 SEE NOTE 1 |
87810-60A52-000 |
— | ||
|
37
|
37
87820-60A10-000
ADJUSTER,RR SEAT SLIDE INNER,R
<-87820-60A02 |
87820-60A10-000 |
— | ||
|
37
|
37
87820-60A03-000
Adjuster, rh seat inside
SEE NOTE 1 |
87820-60A03-000 |
— | ||
|
37
|
37
87820-60A60-000
Adjuster, rh seat inside
TYPE 3:,,,Sweden,Switzerland,Belgium,1,,2,Italy,Hong Kong,Austria,5,<-87820-60A51 |
87820-60A60-000 |
— | ||
|
37
|
37
87820-60A53-000
Adjuster, rh seat inside
TYPE 3:,,,Sweden,Switzerland,Belgium,1,,2,Italy,Hong Kong,Austria,5 SEE NOTE 2 |
87820-60A53-000 |
— | ||
|
38
|
38
87836-60A00-5PK
KNOB,LOCK LEVER,R
|
87836-60A00-5PK |
— | ||
|
39
|
39
87910-60A10-000
ADJUSTER,RR SEAT SLIDE OUTER,R
<-87910-60A01 |
87910-60A10-000 |
— | ||
|
39
|
39
87910-60A02-000
ADJUSTER,RR SEAT SLIDE OUTER,L
SEE NOTE 1 |
87910-60A02-000 |
— | ||
|
39
|
39
87910-60A60-000
Adjuster, lh seat outside
TYPE 3:,,,Sweden,Switzerland,Belgium,1,,2,Italy,Hong Kong,Austria,5,<-87910-60A50 |
87910-60A60-000 |
— | ||
|
39
|
39
87910-60A52-000
Adjuster, lh seat outside
TYPE 3:,,,Sweden,Switzerland,Belgium,1,,2,Italy,Hong Kong,Austria,5 SEE NOTE 2 |
87910-60A52-000 |
— | ||
|
40
|
40
87920-60A10-000
Adjuster, inside lh seat
<-87920-60A02 |
87920-60A10-000 |
— | ||
|
40
|
40
87920-60A03-000
Adjuster, lh seat inside
SEE NOTE 1 |
87920-60A03-000 |
— | ||
|
40
|
40
87920-60A60-000
Adjuster, lh seat inside
TYPE 3:,,,Sweden,Switzerland,Belgium,1,,2,Italy,Hong Kong,Austria,5,<-87920-60A52 |
87920-60A60-000 |
— | ||
|
40
|
40
87920-60A53-000
Adjuster, lh seat inside
TYPE 3:,,,Sweden,Switzerland,Belgium,1,,2,Italy,Hong Kong,Austria,5 SEE NOTE 2 |
87920-60A53-000 |
— | ||
|
41
|
41
87936-60A00-5PK
KNOB,LOCK LEVER,L
|
87936-60A00-5PK |
— | ||
|
42
|
42
01570-08253-000
Bolt, upper
|
01570-08253-000 |
— | ||
| replacements | |||||
|
42
|
42
01570-0825B-000 BOLT |
01570-0825B-000 |
US $1.12 |
||
|
42
|
42
01570-0825A-000 BOLT |
01570-0825A-000 |
from US $1.06 |
||
|
43
|
43
87831-60A10-5PK
COVER,RR SEAT LOCK OUTER,R
BLACK |
87831-60A10-5PK |
— | ||
|
44
|
44
03211-05103-000
New Genuine Part
|
03211-05103-000 |
— | ||
| replacement | |||||
|
44
|
44
03211-0510A-000 SCREW |
03211-0510A-000 |
US $0.80 |
||
|
45
|
45
87834-60A10-5PK
COVER,RR SEAT LOCK INNER,R
BLACK |
87834-60A10-5PK |
— | ||
|
46
|
46
03241-04123-000
Screw
|
03241-04123-000 |
— | ||
| replacement | |||||
|
46
|
46
03242-0412B-000 SCREW |
03242-0412B-000 |
from US $0.80 |
||
|
47
|
47
03212-04123-000
スクリュ
|
03212-04123-000 |
— | ||
| replacement | |||||
|
47
|
47
03212-0412B-000 SCREW |
03212-0412B-000 |
US $13.60 |
||
|
48
|
48
87835-60A10-5PK
COVER,RR SEAT OUTER LOCK,R
BLACK |
87835-60A10-5PK |
— | ||
|
49
|
49
87931-60A10-5PK
COVER,RR SEAT LOCK OUTER,L
BLACK |
87931-60A10-5PK |
— | ||
|
50
|
50
87934-60A10-5PK
COVER,RR SEAT LOCK INNER,L
BLACK |
87934-60A10-5PK |
— | ||
|
51
|
51
87935-60A10-5PK
COVER,RR SEAT OUTER LOCK,L
BLACK |
87935-60A10-5PK |
— | ||
|
52
|
52
87899-60A10-000
ROD,RR SEAT SLIDE ADJUSTER
|
87899-60A10-000 |
— | ||
|
53
|
53
08332-11055-000
E-ring
|
08332-11055-000 |
— | ||
| replacement | |||||
|
53
|
53
08332-1105A-000 E RING |
08332-1105A-000 |
from US $0.91 |
||
|
54
|
54
87840-60A10-000 STRIKER,SEAT LOCK OUTER,R |
87840-60A10-000 |
US $38.40 |
||
|
55
|
55
87890-60A11-000
STRIKER,RR SEAT LOCK
|
87890-60A11-000 |
— | ||
|
56
|
56
01550-10203-000
Bolt
|
01550-10203-000 |
— | ||
| replacement | |||||
|
56
|
56
01550-1020A-000 BOLTBolt, bal sprocket |
01550-1020A-000 |
from US $0.96 |
||
|
57
|
57
87940-60A10-000
STRIKER,SEAT LOCK OUTER,L
|
87940-60A10-000 |
— | ||
|
58
|
58
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
58
|
58
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
58
|
58
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
59
|
59
09387-19001-000 RING |
09387-19001-000 |
US $1.76 |
||
|
60
|
60
87825-60A00-000 CABLE ASSY,RR SEAT LOCKINNER PART OF NO.37,40 |
87825-60A00-000 |
US $22.08 |
||
|
61
|
61
87898-56B20-000
Label, seat caution
TYPE 1:Germany,PRODUCT OF CANADA,<-87898-60A20 |
87898-56B20-000 |
— | ||
|
62
|
62
87399-70E00-000 PROTECTOR,RR SEAT BACK HINGE,R<-87399-60A10 |
87399-70E00-000 |
US $9.16 |
||
|
63
|
63
87799-70E00-000 PROTECTOR,RR SEAT BACK HINGE,L<-87799-60A10 |
87799-70E00-000 |
US $9.16 |
||
|
64
|
64
87299-70E00-000 PROTECTOR,RR SEAT CUSH HINGE<-87299-60A10 |
87299-70E00-000 |
US $5.48 |
||
|
65
|
65
87198-60A10-000
SUPPORT,SEAT LOCK CABLE SIDE,R
TYPE 1,TYPE 2 |
87198-60A10-000 |
— | ||
|
66
|
66
87598-60A10-000
SUPPORT,SEAT LOCK CABLE SIDE,L
TYPE 1,TYPE 2 |
87598-60A10-000 |
— | ||
|
67
|
67
87199-60A11-000
SUPPROT,RR SEAT LOCK CABLE FR
|
87199-60A11-000 |
— | ||
|
68
|
68
09148-06005-000
Nut seat moldin
|
09148-06005-000 |
— | ||
| replacement | |||||
|
68
|
68
09148-06008-000 NUTNut, adjuster knob |
09148-06008-000 |
from US $0.83 |
||
