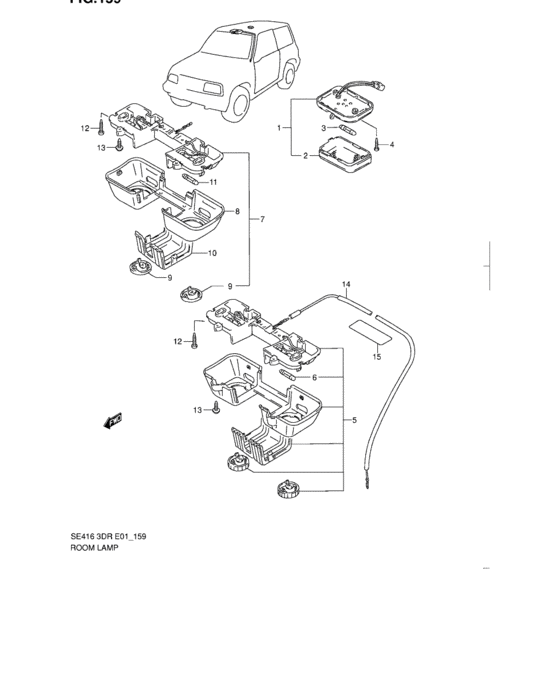

Room lamp (ROOM LAMP) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36210-60A00-5EH LAMP ASSY,ROOMTYPE 1,TYPE 2,TYPE 3 |
36210-60A00-5EH |
US $104 |
||
|
1
|
1
36210-60A00-5EV
Lamp assy, room
TYPE 1 |
36210-60A00-5EV |
— | ||
| replacement | |||||
|
1
|
1
36210-60A00-6GS LAMP ASSY,ROOMTYPE 1 |
36210-60A00-6GS |
US $60.35 |
||
|
1
|
1
36210-60AA1-000
Lamp assy, room
Germany:PRODUCT OF CANADA,<-36210-60AA0-5EH |
36210-60AA1-000 |
— | ||
|
1
|
1
36210-50G01-000
Lamp assy, room
Germany:PRODUCT OF CANADA,<-36210-50G00-5EH |
36210-50G01-000 |
— | ||
|
2
|
2
36212-60A00-000 LENS,ROOM LAMP |
36212-60A00-000 |
US $28 |
||
|
2
|
2
36212-50G00-000
Lens, room lamp
Germany:PRODUCT OF CANADA,<-36212-60AA0 |
36212-50G00-000 |
— | ||
|
3
|
3
09471-12073-000 BULB(12V,5W) |
09471-12073-000 |
from US $2.40 |
||
|
4
|
4
03211-04163-000
Screw
|
03211-04163-000 |
— | ||
| replacement | |||||
|
4
|
4
03211-0416A-000 SCREW |
03211-0416A-000 |
from US $0.76 |
||
|
5
|
5
36230-60A00-5PK
LAMP ASSY,SPOT
<-36230-60A00 |
36230-60A00-5PK |
— | ||
|
6
|
6
09471-12073-000 BULB(12V,5W) |
09471-12073-000 |
from US $2.40 |
||
|
7
|
7
36230-60A10-5PK
Lamp assy,spot(black)
,,,Norway,Sweden,Switzerland,Belgium,,1,2,5,6,Italy,Austria,,5,Iceland,<-36230-60A10 |
36230-60A10-5PK |
— | ||
|
7
|
7
36230-60A20-5PK
LAMP ASSY,SPOT
,,Finland,Norway,Sweden,Switzerland,,Belgium,1,2,5,6,Italy,,Austria,6,Czech Republic,Iceland,<-36230-60A20 |
36230-60A20-5PK |
— | ||
|
8
|
8
36235-60A10-5PK
COVER,SPOT LAMP,NO.1
,,,Finland,Norway,Sweden,Switzerland,,Belgium,1,2,5,6,Italy,,Austria,6,5,Iceland,<-36235-60A10 |
36235-60A10-5PK |
— | ||
|
8
|
8
36235-60A00-5PK COVER,SPOT LAMP,NO,1TYPE 3 |
36235-60A00-5PK |
US $6.77 |
||
|
9
|
9
36232-60A10-5PK LENS,SPOT LAMPTYPE 1,TYPE 2:,,,Finland,Norway,Sweden,,Switzerland,Belgium,1,2,5,6,Italy,,Austria,6,5,Iceland,<-36232-60A10 |
36232-60A10-5PK |
US $4.64 |
||
|
9
|
9
36232-60A00-5EH LENS,SPOT LAMPTYPE 3 |
36232-60A00-5EH |
US $4.64 |
||
|
10
|
10
36242-60A10-5PK
Cover,spot lamp,no.2(black)
,,,Finland,Norway,Sweden,Switzerland,,Belgium,1,2,5,6,Italy,,Austria,6,5,Iceland,<-36242-60A10 |
36242-60A10-5PK |
— | ||
|
10
|
10
36242-60A00-5PK COVER,SPOT LAMP,NO.2TYPE 3 |
36242-60A00-5PK |
US $5.23 |
||
|
11
|
11
09471-12073-000 BULB(12V,5W) |
09471-12073-000 |
from US $2.40 |
||
|
12
|
12
03141-05203-000
スクリュ
|
03141-05203-000 |
— | ||
| replacements | |||||
|
12
|
12
03141-0520B-000 SCREW |
03141-0520B-000 |
US $2.56 |
||
|
12
|
12
03142-0520B-000 SCREW |
03142-0520B-000 |
from US $0.80 |
||
|
13
|
13
03541-04103-000
Screw
|
03541-04103-000 |
— | ||
| replacement | |||||
|
13
|
13
03541-0410A-000 SCREW |
03541-0410A-000 |
from US $0.80 |
||
|
14
|
14
36820-61A10-000
WIRE,SPOT LAMP
|
36820-61A10-000 |
— | ||
|
15
|
15
36930-82010-000 COVER,HARNESSCover, roof wire <-36930-86000 |
36930-82010-000 |
from US $1.73 |
||
