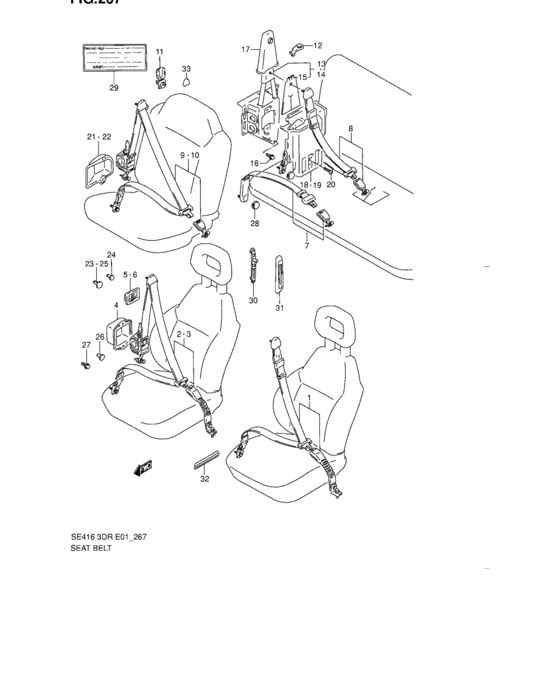

Seat belt (SEAT BELT) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
84901-60A90-5FH
Belt assy, front
TYPE 1,TYPE 2,TYPE 3 POINT |
84901-60A90-5FH |
— | ||
|
1
|
1
84901-60A90-5FJ
Belt assy, front
TYPE 1,TYPE 2,TYPE 3 POINT |
84901-60A90-5FJ |
— | ||
|
1
|
1
84901-72E20-5FJ
BELT ASSY,FR SEAT
TYPE 3,TYPE 3 POINT |
84901-72E20-5FJ |
— | ||
|
2
|
2
84901-61A80-5FH
Belt assy, front rh
TYPE 1,TYPE 2,E.L.R JX |
84901-61A80-5FH |
— | ||
| replacement | |||||
|
2
|
2
84901-61A80-5FJ
Belt assy,front seat,r
TYPE 1,TYPE 2,E.L.R JX |
84901-61A80-5FJ |
— | ||
|
2
|
2
84901-61A80-5FJ
Belt assy,front seat,r
TYPE 1,TYPE 2,E.L.R JX |
84901-61A80-5FJ |
— | ||
|
2
|
2
84901-61A82-5FJ
BELT ASSY,FR SEAT,R
TYPE 1,TYPE 2,E.L.R JX,TA01C-110154~,TA01V-110581~ |
84901-61A82-5FJ |
— | ||
|
2
|
2
84901-71E50-5FJ
BELT ASSY,FR SEAT,R
TYPE 3:E.L.R JX |
84901-71E50-5FJ |
— | ||
|
2
|
2
84901-60A80-5FJ
Belt assy,front seat,r
TYPE 1,TYPE 2,E.L.R JLX,<-84901-60A80-5FH |
84901-60A80-5FJ |
— | ||
|
2
|
2
84901-60A82-5FJ
Belt assy,front seat,r
TYPE 1,TYPE 2,E.L.R JLX,TA01C-110154~,JSAETA01C00162362~,TA01V-110581~,JSAETA01V00141738~,2S3TA01C000510001~,2S3TA01V000510001~ |
84901-60A82-5FJ |
— | ||
|
2
|
2
84901-71E20-5FJ
Belt assy,front seat,r
TYPE 3:E.L.R JLX |
84901-71E20-5FJ |
— | ||
|
2
|
2
84901-60831-5FH
Belt assy, front rh
TYPE 1,E.L.R,W/ALARM,JX:Saudi Arabia |
84901-60831-5FH |
— | ||
| replacement | |||||
|
2
|
2
84901-60831-5FJ
Belt assy,fr seat,rh
TYPE 1,E.L.R,W/ALARM,JX:Saudi Arabia |
84901-60831-5FJ |
— | ||
|
2
|
2
84901-63832-5FJ
Belt assy, front rh
TYPE 1,TYPE 2,E.L.R,W/ALARM,JX:Saudi Arabia |
84901-63832-5FJ |
— | ||
|
2
|
2
84901-60821-5FH
BELT ASSY,FR SEAT,R
TYPE 1,E.L.R,W/ALARM,JLX:Saudi Arabia,TOKAI RIKA |
84901-60821-5FH |
— | ||
|
2
|
2
84901-60821-5FJ
Belt assy, front rh
TYPE 1,E.L.R,W/ALARM,JLX:Saudi Arabia,Germany:PRODUCT OF CANADA,TOKAI RIKA |
84901-60821-5FJ |
— | ||
|
2
|
2
84901-62A50-5FJ
Belt assy, front rh
TYPE 1,TYPE 2,E.L.R,W/ALARM,JLX:Saudi Arabia,TAKATA |
84901-62A50-5FJ |
— | ||
|
2
|
2
84901-63A31-5FJ
Belt assy, front rh
TYPE 2,E.L.R,W/ALARM,JLX:Saudi Arabia,TAKATA,TA01C-110154~,TA01V-110581~ |
84901-63A31-5FJ |
— | ||
|
2
|
2
84901-70E10-5FJ
Belt assy,front seat,r
TYPE 3:Saudi Arabia E.L.R,SEP SEAT |
84901-70E10-5FJ |
— | ||
|
2
|
2
84901-70E40-5FJ
Belt assy, front rh
TYPE 3:Saudi Arabia E.L.R,BENCH SEAT |
84901-70E40-5FJ |
— | ||
|
3
|
3
84902-61A80-5FH
Belt assy, front lh
TYPE 1,TYPE 2,E.L.R JX |
84902-61A80-5FH |
— | ||
| replacement | |||||
|
3
|
3
84902-61A80-5FJ
Belt assy,front seat,l
TYPE 1,TYPE 2,E.L.R JX |
84902-61A80-5FJ |
— | ||
|
3
|
3
84902-61A80-5FJ
Belt assy,front seat,l
TYPE 1,TYPE 2,E.L.R JX |
84902-61A80-5FJ |
— | ||
|
3
|
3
84902-61A82-5FJ
Belt assy,front seat,l
TYPE 1,TYPE 2,E.L.R JX,TA01C-110154~,TA01V-110581~ |
84902-61A82-5FJ |
— | ||
|
3
|
3
84902-71E50-5FJ
Belt assy,front seat,l
TYPE 3:E.L.R JX |
84902-71E50-5FJ |
— | ||
|
3
|
3
84902-60A80-5FJ
Belt assy,front seat,l
TYPE 1,TYPE 2,E.L.R JLX,TA01C-110154~,TA01V-110581~,<-84902-60A80-5FH |
84902-60A80-5FJ |
— | ||
|
3
|
3
84902-60A82-5FJ
Belt assy,front seat,l
TYPE 1,TYPE 2,E.L.R JLX,TA01C-110154~,JSAETA01C00162362~,TA01V-110581~,JSAETA01V00141738~,2S3TA01C000510001~,2S3TA01V000510001~ |
84902-60A82-5FJ |
— | ||
|
3
|
3
84902-71E20-5FJ
BELT ASSY,FR SEAT,L
TYPE 3:E.L.R JLX |
84902-71E20-5FJ |
— | ||
|
3
|
3
84902-60831-5FH
Belt assy, front lh
TYPE 1,E.L.R,W/ALARM,JX:Saudi Arabia |
84902-60831-5FH |
— | ||
| replacement | |||||
|
3
|
3
84902-60831-5FJ
Belt assy, front lh
TYPE 1,E.L.R,W/ALARM,JX:Saudi Arabia |
84902-60831-5FJ |
— | ||
|
3
|
3
84902-60831-5FJ
Belt assy, front lh
TYPE 1,E.L.R,W/ALARM,JX:Saudi Arabia |
84902-60831-5FJ |
— | ||
|
3
|
3
84902-64831-5FJ
Belt assy, front lh
TYPE 2,E.L.R,W/ALARM,JX:Saudi Arabia,TA01C-110154~,TA01V-110581~ |
84902-64831-5FJ |
— | ||
|
3
|
3
84902-60821-5FH
Belt assy, front lh
TYPE 1,E.L.R,W/ALARM,JLX:Saudi Arabia |
84902-60821-5FH |
— | ||
|
3
|
3
84902-60821-5FJ
Belt assy, front lh
TYPE 1,E.L.R,W/ALARM,JLX:Saudi Arabia,Germany:PRODUCT OF CANADA |
84902-60821-5FJ |
— | ||
|
3
|
3
84902-62A60-5FJ
Belt assy, front lh
TYPE 1,TYPE 2,E.L.R,W/ALARM,JLX:Saudi Arabia,TAKATA |
84902-62A60-5FJ |
— | ||
|
3
|
3
84902-64A30-5FJ
Belt assy, front lh
TYPE 2,E.L.R,W/ALARM,JLX:Saudi Arabia,TAKATA,TA01C-110154~,TA01V-110581~ |
84902-64A30-5FJ |
— | ||
|
3
|
3
84902-70E10-5FJ
Belt assy,front seat,l
TYPE 3:Saudi Arabia,E.L.R,SEP SEAT |
84902-70E10-5FJ |
— | ||
|
3
|
3
84902-70E40-5FJ
Belt assy, front lh
TYPE 3:Saudi Arabia,E.L.R,BENCH SEAT |
84902-70E40-5FJ |
— | ||
|
4
|
4
84924-60A10-000
COVER,SEAT BELT ELR DUST,FR
|
84924-60A10-000 |
— | ||
|
4
|
4
84924-63A10-000
COVER,SEAT BELT ELR DUST
TA01C-110154~,JSAETA01C00162362~,TA01V-110581~,JSAETA01V00141738~,2S3TA01C000510001~,2S3TA01V000510001~ |
84924-63A10-000 |
— | ||
|
5
|
5
84963-60A20-5ER
Cover, seat belt
|
84963-60A20-5ER |
— | ||
|
5
|
5
84963-60A20-5ES
Cover, seat belt
|
84963-60A20-5ES |
— | ||
|
5
|
5
84963-61A20-5ES
Cover, seat belt rh
TA01C-110156~,TA01V-110586~,JSAETA01C00162407~,JSAETA01V00141747~ |
84963-61A20-5ES |
— | ||
|
6
|
6
84964-61A20-5ES
Cover, seat belt lh
TA01C-110156~,TA01V-110586~,JSAETA01C00162407~,JSAETA01V00141747~ |
84964-61A20-5ES |
— | ||
|
7
|
7
84904-61A40-5FJ
ベルトアッシ,リヤ(ブラック)
2 POINT,SEP SEAT |
84904-61A40-5FJ |
— | ||
| replacement | |||||
|
7
|
7
84904-61A41-5FJ
BELT ASSY,RR,R
2 POINT,SEP SEAT |
84904-61A41-5FJ |
— | ||
|
7
|
7
84904-60A40-5FJ
Belt assy, rear
2 POINT,SEP SEAT,,Switzerland,Belgium,1,5,,6,Italy,Channel Islands,<-84904-60A40-5FH |
84904-60A40-5FJ |
— | ||
|
7
|
7
84904-61A80-5FH
Belt assy, rear
2 POINT,BENCH SEAT |
84904-61A80-5FH |
— | ||
| replacement | |||||
|
7
|
7
84904-61A81-5FH
Belt assy,rr r
2 POINT,BENCH SEAT |
84904-61A81-5FH |
— | ||
|
7
|
7
84904-61A80-5FJ
Belt assy, rear
2 POINT,BENCH SEAT |
84904-61A80-5FJ |
— | ||
|
7
|
7
84904-60A80-5FH
Belt assy, rear
2 POINT,BENCH SEAT,,Switzerland,Belgium,1,5,,6,Italy,Channel Islands |
84904-60A80-5FH |
— | ||
|
7
|
7
84904-60A80-5FJ
Belt assy, rear
2 POINT,BENCH SEAT,,Switzerland,Belgium,1,5,,6,Italy,Channel Islands |
84904-60A80-5FJ |
— | ||
|
8
|
8
84904-60A30-5FJ
Belt assy,rear seat
3 POINT,SEP SEAT,<-84904-60A30-5FH |
84904-60A30-5FJ |
— | ||
|
8
|
8
84904-60A70-5FH
Belt assy, rear
3 POINT,BENCH SEAT |
84904-60A70-5FH |
— | ||
|
8
|
8
84904-60A70-5FJ
Belt assy, rear
3 POINT,BENCH SEAT |
84904-60A70-5FJ |
— | ||
|
9
|
9
84904-60A22-5FJ
BELT ASSY,RR SEAT
TYPE 1,TYPE 2:E.L.R SEP SEAT,<-84904-60A20-5FH |
84904-60A22-5FJ |
— | ||
|
9
|
9
84904-60860-5FJ
Belt assy, rear
E.L.R SEP SEAT,Germany:PRODUCT OF CANADA |
84904-60860-5FJ |
— | ||
|
9
|
9
84904-60A62-5FJ
Belt assy, rear
E.L.R BENCH SEAT |
84904-60A62-5FJ |
— | ||
|
9
|
9
84904-61A22-5FJ
BELT ASSY,RR SEAT,R
TYPE 1,TYPE 2,TYPE 3:E.L.R SEP SEAT |
84904-61A22-5FJ |
— | ||
|
9
|
9
84904-61A92-5FJ
BELT ASSY,RR SEAT,R
TYPE 3:JX,SEP SEAT,,Belgium |
84904-61A92-5FJ |
— | ||
|
9
|
9
84904-61A62-5FH
Belt assy, rear rh
TYPE 1,TYPE 2:E.L.R BENCH SEAT |
84904-61A62-5FH |
— | ||
|
9
|
9
84904-61A62-5FJ
Belt assy, rear rh
E.L.R BENCH SEAT |
84904-61A62-5FJ |
— | ||
|
10
|
10
84905-61A22-5FJ
BELT ASSY,RR SEAT,L
TYPE 1,TYPE 2,TYPE 3:E.L.R SEP SEAT |
84905-61A22-5FJ |
— | ||
|
10
|
10
84905-61A92-5FJ
BELT ASSY,RR SEAT,L
TYPE 3:JX,SEP SEAT,,Belgium |
84905-61A92-5FJ |
— | ||
|
10
|
10
84905-61A62-5FH
Belt assy, rear lh
TYPE 1,TYPE 2,TYPE 3:E.L.R BENCH SEAT |
84905-61A62-5FH |
— | ||
|
10
|
10
84905-61A62-5FJ
Belt assy, rear lh
TYPE 1,TYPE 2:E.L.R BENCH SEAT,<-84905-61A60-5FJ |
84905-61A62-5FJ |
— | ||
|
11
|
11
84961-60A10-000 HANGER,SEAT BELTN/E.L.R BELT |
84961-60A10-000 |
US $2.43 |
||
|
12
|
12
84961-60A30-000 HANGER,RR SEAT BELTN/E.L.R BELT |
84961-60A30-000 |
US $3.53 |
||
|
13
|
13
87850-60A50-000
STAY,REAR SHOULDER ANCHOR,R
PRODUCT OF JAPAN |
87850-60A50-000 |
— | ||
|
13
|
13
87850-60A10-000
Stay, rear shoulder anchor rh
PRODUCT OF CANADA |
87850-60A10-000 |
— | ||
|
14
|
14
87860-60A50-000
STAY,REAR SHOULDER ANCHOR,L
PRODUCT OF JAPAN |
87860-60A50-000 |
— | ||
|
14
|
14
87860-60A10-000
Stay, rear shoulder anchor lh
PRODUCT OF CANADA |
87860-60A10-000 |
— | ||
|
15
|
15
84958-60A10-000
PAD,REAR SHOULDER ANCHOR
|
84958-60A10-000 |
— | ||
|
16
|
16
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
16
|
16
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
17
|
17
84955-60A10-5ER
Cover, shoulder anc
|
84955-60A10-5ER |
— | ||
| replacement | |||||
|
17
|
17
84955-60A10-5ES
COVER,RR SHOULDER ANCHOR UP
|
84955-60A10-5ES |
— | ||
|
17
|
17
84955-60A10-5ES
COVER,RR SHOULDER ANCHOR UP
|
84955-60A10-5ES |
— | ||
|
18
|
18
84956-60A10-5ER
Trim, shoulder anc rh
|
84956-60A10-5ER |
— | ||
| replacement | |||||
|
18
|
18
84956-60A10-5ES
Trim,rear shoulder ancho low,r
|
84956-60A10-5ES |
— | ||
|
18
|
18
84956-60A10-5ES
Trim,rear shoulder ancho low,r
|
84956-60A10-5ES |
— | ||
|
19
|
19
84966-60A10-5ER
Trim, shoulder anc lh
|
84966-60A10-5ER |
— | ||
| replacement | |||||
|
19
|
19
84966-60A10-5ES
Trim,rear shoulder ancho low,l
|
84966-60A10-5ES |
— | ||
|
19
|
19
84966-60A10-5ES
Trim,rear shoulder ancho low,l
|
84966-60A10-5ES |
— | ||
|
20
|
20
03241-06163-000
スクリュ
|
03241-06163-000 |
— | ||
| replacement | |||||
|
20
|
20
03241-0616C-000 SCREW |
03241-0616C-000 |
from US $0.76 |
||
|
21
|
21
84925-61A10-000
COVER,RR BELT ELR DUST,R
|
84925-61A10-000 |
— | ||
|
22
|
22
84926-61A10-000
COVER,RR BELT ELR DUST,L
|
84926-61A10-000 |
— | ||
|
23
|
23
09250-10018-5ES
Plug
JLX,N/FRONT BELT,<-09250-10018-5ER |
09250-10018-5ES |
— | ||
| replacement | |||||
|
23
|
23
09250-10018-5PK
PLUG(OD:34)
JLX,N/FRONT BELT,<-09250-10018-5ER |
09250-10018-5PK |
— | ||
|
23
|
23
09250-10017-000 PLUG(OD:22)JX,N/FRONT BELT |
09250-10017-000 |
US $17.70 |
||
|
24
|
24
09250-08005-000 CAP(OD:20)N/REAR BELT |
09250-08005-000 |
from US $3.86 |
||
|
25
|
25
09250-10018-5ES
Plug
2 POINT,N/REAR BELT,<-09250-10018-5ER |
09250-10018-5ES |
— | ||
| replacement | |||||
|
25
|
25
09250-10018-5PK
PLUG(OD:34)
2 POINT,N/REAR BELT,<-09250-10018-5ER |
09250-10018-5PK |
— | ||
|
26
|
26
09250-10017-000 PLUG(OD:22) |
09250-10017-000 |
US $17.70 |
||
|
27
|
27
09103-12038-000 BOLT(12X16) |
09103-12038-000 |
US $25.80 |
||
|
28
|
28
84966-60A20-5PK CAP,RR LWR OUT COVERW/2P,3P BELT |
84966-60A20-5PK |
US $2.10 |
||
|
29
|
29
86937-73101-000
Label, seat belt anchorage
Thailand,Sinagpore,Hong Kong |
86937-73101-000 |
— | ||
| replacement | |||||
|
29
|
29
86937-73102-000
LABEL,SEAT BELT ANCHORAGE
Thailand,Sinagpore,Hong Kong |
86937-73102-000 |
— | ||
|
30
|
30
84991-70E00-5ES
Adjuster, front shoulder (blac
TYPE 3:Austria |
84991-70E00-5ES |
— | ||
|
31
|
31
84992-50E00-5ES
Cover, shoulder adjuster (blac
TYPE 3:Austria |
84992-50E00-5ES |
— | ||
|
32
|
32
85198-70E00-000 TIETYPE 3 |
85198-70E00-000 |
US $3.02 |
||
|
33
|
33
84965-60A00-000
Cap, rear shoulder cover
TYPE 1,Germany:PRODUCT OF CANADA |
84965-60A00-000 |
— | ||
