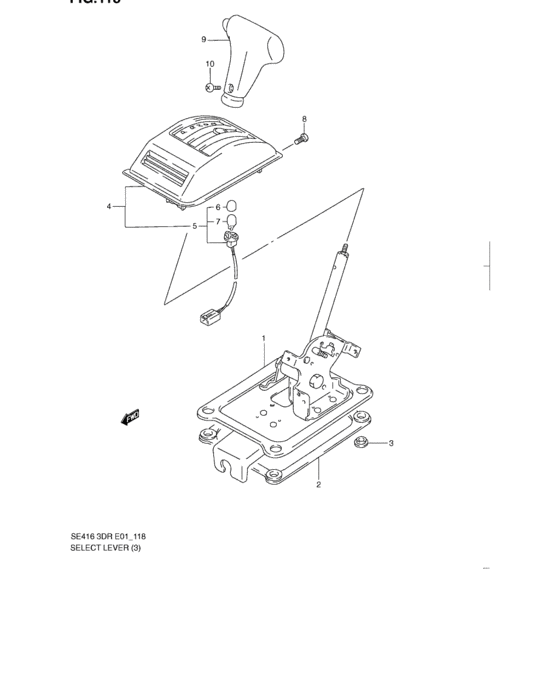

Select lever (3AT:TYPE 1:RHD) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28110-62A20-000
Lever assy, select
|
28110-62A20-000 |
— | ||
| replacement | |||||
|
1
|
1
28110-62A81-000
Lever assy,select
|
28110-62A81-000 |
— | ||
|
2
|
2
28176-61A00-000 GASKET,MANUAL SELECTOR ASSY |
28176-61A00-000 |
US $11.30 |
||
|
3
|
3
09169-08043-000 WASHER |
09169-08043-000 |
US $30.20 |
||
|
4
|
4
28150-61A10-000
INDICATOR ASSY,SELECT LEVER
|
28150-61A10-000 |
— | ||
|
5
|
5
28180-61A00-000 LAMP ASSY,SELECT LEVER ILLUM |
28180-61A00-000 |
US $11.89 |
||
|
6
|
6
28182-61A00-000 FILTER,BULB |
28182-61A00-000 |
US $2.58 |
||
|
7
|
7
09471-12077-000 BULB(12V1.7W,T10,WB121) |
09471-12077-000 |
from US $1.52 |
||
|
8
|
8
02142-05103-000
Screw 5x10
|
02142-05103-000 |
— | ||
| replacement | |||||
|
8
|
8
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.76 |
||
|
9
|
9
28160-61A10-5PK
KNOB ASSY,SELECT LEVER
|
28160-61A10-5PK |
— | ||
|
10
|
10
09125-05117-000 SCREW(5X6)Screw (5x6) |
09125-05117-000 |
from US $0.96 |
||
