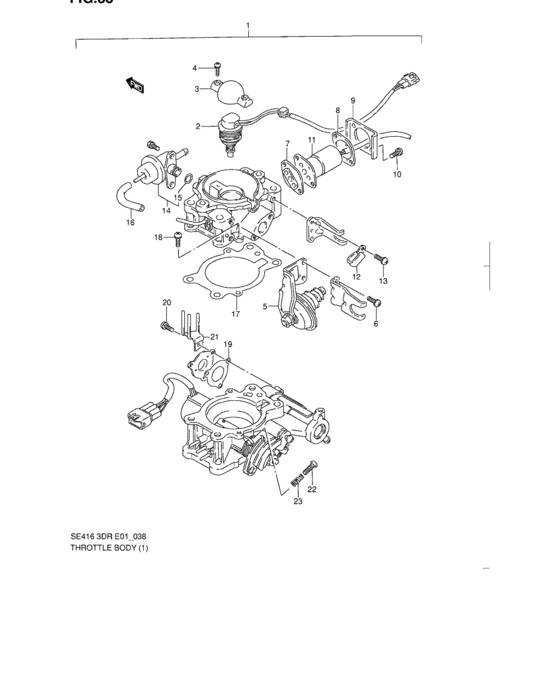

Throttle body (TYPE 1:W/FUEL INJECTION) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
15710-61A00-000
INJECTOR ASSY,FUEL
|
15710-61A00-000 |
— | ||
|
3
|
3
13431-61A10-000
カバー
|
13431-61A10-000 |
— | ||
|
3
|
3
13431-61A00-000
COVER
JSAETA01C00114803~,JSAETA01V00111445~ |
13431-61A00-000 |
— | ||
|
4
|
4
13439-61A00-000 SCREW |
13439-61A00-000 |
US $5.56 |
||
|
5
|
5
13432-61A00-000
BRACKET ASSY,DEPRESSION
|
13432-61A00-000 |
— | ||
|
6
|
6
02112-35123-000
Screw, rubber stop
|
02112-35123-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-3512A-000 SCREW |
02112-3512A-000 |
from US $1.47 |
||
|
7
|
7
13451-61A00-000
SEAT,RUBBER
|
13451-61A00-000 |
— | ||
|
8
|
8
13452-61A00-000 FLANGE |
13452-61A00-000 |
US $9.16 |
||
|
9
|
9
13453-61A00-000
HOLDER
|
13453-61A00-000 |
— | ||
|
10
|
10
02112-35163-000
Screw
|
02112-35163-000 |
— | ||
| replacement | |||||
|
10
|
10
02112-3516A-000 SCREW |
02112-3516A-000 |
from US $0.76 |
||
|
11
|
11
13450-61A00-000
SOLENOID ASSY
|
13450-61A00-000 |
— | ||
|
12
|
12
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
| replacement | |||||
|
12
|
12
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
13
|
13
02112-35123-000
Screw, rubber stop
|
02112-35123-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-3512A-000 SCREW |
02112-3512A-000 |
from US $1.47 |
||
|
14
|
14
15160-61A00-000
Regulator assy
|
15160-61A00-000 |
— | ||
|
15
|
15
15167-61A00-000 O-RING |
15167-61A00-000 |
US $6.07 |
||
|
16
|
16
13687-72B00-000 HOSE,L:275L:275->70 |
13687-72B00-000 |
US $12.44 |
||
|
17
|
17
13441-61A00-000 GASKET |
13441-61A00-000 |
US $26.40 |
||
|
18
|
18
02112-35123-000
Screw, rubber stop
|
02112-35123-000 |
— | ||
| replacement | |||||
|
18
|
18
02112-3512A-000 SCREW |
02112-3512A-000 |
from US $1.47 |
||
|
19
|
19
13442-61A00-000 GASKET |
13442-61A00-000 |
US $11.52 |
||
|
20
|
20
02112-35123-000
Screw, rubber stop
|
02112-35123-000 |
— | ||
| replacement | |||||
|
20
|
20
02112-3512A-000 SCREW |
02112-3512A-000 |
from US $1.47 |
||
|
21
|
21
13445-61A00-000
Clip
|
13445-61A00-000 |
— | ||
|
22
|
22
13443-61A00-000
SCREW,ADJUST
|
13443-61A00-000 |
— | ||
|
23
|
23
13444-61A00-000 SPRING |
13444-61A00-000 |
from US $2.40 |
||
