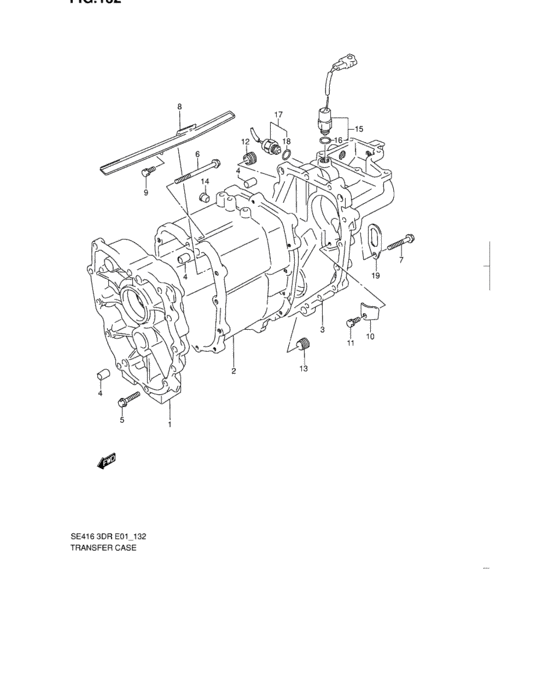

Transfer case (TRANSFER CASE) Diagram Suzuki VITARA
- Year
- -
- Sales region
- Africa
- transmission
- 3AT
- grade
- JLX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29511-60A00-000
ケース,トランスファ,フロント
|
29511-60A00-000 |
— | ||
| replacement | |||||
|
1
|
1
29511-85F40-000 CASE,T/F,FR |
29511-85F40-000 |
US $297.60 |
||
|
1
|
1
29511-60A01-000
ケース,トランスファ,フロント
TA01C-100713~,TA01V-101927~,JSAETA01C00115913~,JSAETA01V00112245~,2S3TA01C M6400001~ |
29511-60A01-000 |
— | ||
| replacement | |||||
|
1
|
1
29511-85F40-000 CASE,T/F,FRTA01C-100713~,TA01V-101927~,JSAETA01C00115913~,JSAETA01V00112245~,2S3TA01C M6400001~ |
29511-85F40-000 |
US $297.60 |
||
|
2
|
2
29521-60A01-000
ケース,トランスファ,センタ
|
29521-60A01-000 |
— | ||
| replacement | |||||
|
2
|
2
29521-60AV0-000 CASE,T/F,CENTER |
29521-60AV0-000 |
US $255.76 |
||
|
3
|
3
29531-85F00-000 CASE,T/F,RR |
29531-85F00-000 |
US $606.40 |
||
|
4
|
4
04211-13149-000 PIN |
04211-13149-000 |
from US $1.28 |
||
|
5
|
5
01550-08303-000
Bolt
|
01550-08303-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
5
|
5
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
6
|
6
01550-08803-000
Bolt (8x80)
|
01550-08803-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0880B-000 BoltBolt, muffler bracket & stand |
01550-0880B-000 |
from US $3.05 |
||
|
6
|
6
01550-0880A-000 BOLT |
01550-0880A-000 |
from US $1.76 |
||
|
7
|
7
01550-08453-000
Bolt,cylinder h
|
01550-08453-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0845B-000 BOLT |
01550-0845B-000 |
from US $1.06 |
||
|
7
|
7
01550-0845A-000 BOLTBolt, oil pump (s) |
01550-0845A-000 |
US $5.03 |
||
|
8
|
8
29528-60A00-000
GUTTER,T/F CTR CASE
|
29528-60A00-000 |
— | ||
|
9
|
9
09103-06083-000
Bolt (6x12)
|
09103-06083-000 |
— | ||
| replacement | |||||
|
9
|
9
09103-06285-000 BOLT(6X12)Bolt (6x12) |
09103-06285-000 |
from US $1.28 |
||
|
10
|
10
29536-60A00-000
プレート,トランスファリヤケース
|
29536-60A00-000 |
— | ||
| replacement | |||||
|
10
|
10
29536-60A01-000 PLATE,T/F REAR CASE |
29536-60A01-000 |
US $2.10 |
||
|
11
|
11
09103-06083-000
Bolt (6x12)
|
09103-06083-000 |
— | ||
| replacement | |||||
|
11
|
11
09103-06285-000 BOLT(6X12)Bolt (6x12) |
09103-06285-000 |
from US $1.28 |
||
|
12
|
12
09246-16010-000 PLUG |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
12
|
12
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.01 |
||
|
13
|
13
09246-16010-000 PLUG |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
13
|
13
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.01 |
||
|
14
|
14
09250-08001-000 PLUG(OD:14)Cap, remote control shaft |
09250-08001-000 |
US $1.28 |
||
|
15
|
15
37680-60A01-000 SWITCH ASSY,4WD<-37680-60A00 |
37680-60A01-000 |
US $63.20 |
||
|
16
|
16
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
from US $0.88 |
||
|
17
|
17
37680-60A10-000
スイッチアッシ,4WD,ロー
|
37680-60A10-000 |
— | ||
| replacement | |||||
|
17
|
17
37680-60A11-000 SWITCH ASSY,4WD |
37680-60A11-000 |
from US $35.30 |
||
|
18
|
18
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
from US $0.88 |
||
|
19
|
19
11851-62B00-000 HOOK |
11851-62B00-000 |
US $5.02 |
||
